Draining Fluids and Oil Filter Removal

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Oil Pan Drain Plug & Seal
    GM1658109Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan drain plug (430) and O-ring (429).
    2. Fig 2: View Of Engine Oil Filter
    GM1658113Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil filter (437).

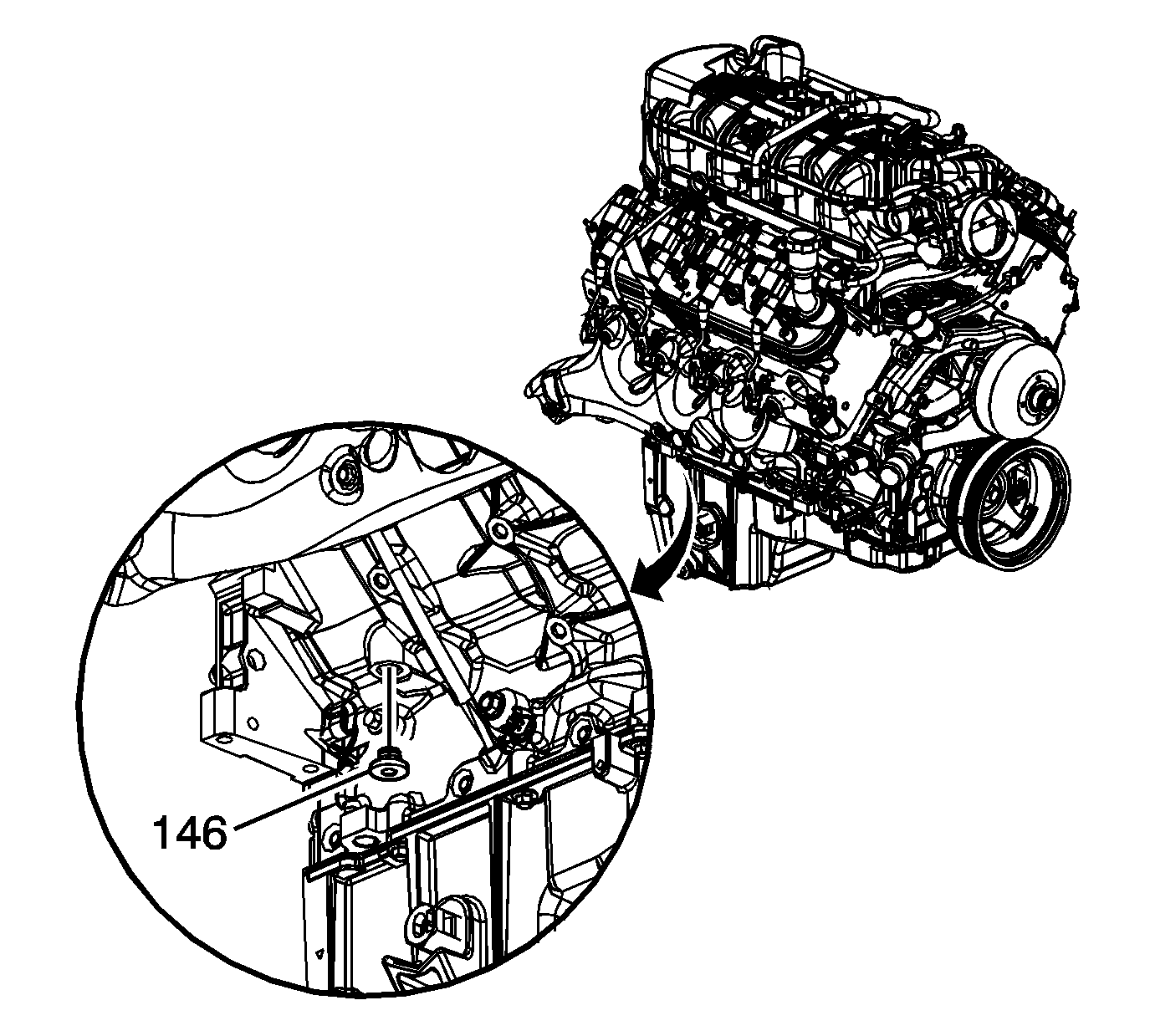

    3. Fig 3: View Of Engine Block Coolant Drain Hole Plug
    GM1658116Courtesy of GENERAL MOTORS CORP.
  3. Remove the right side engine block coolant drain hole plug (146).

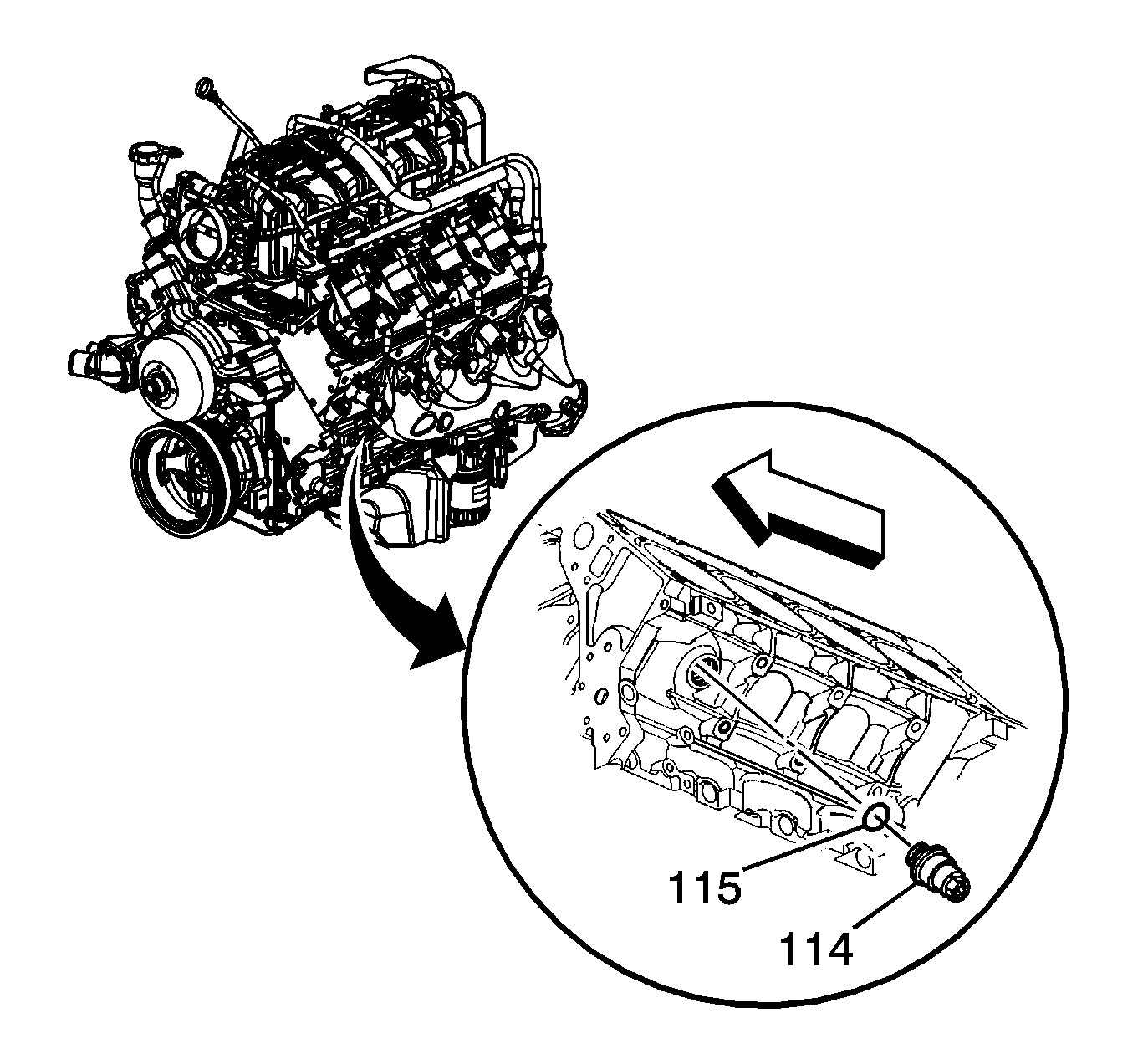

    4. Fig 4: View Of Engine Block Coolant Heater & Washer
    GM1658119Courtesy of GENERAL MOTORS CORP.
  4. Remove the left side engine block coolant heater (114) and washer (115).
