Front Output Shaft Rear Bearing Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

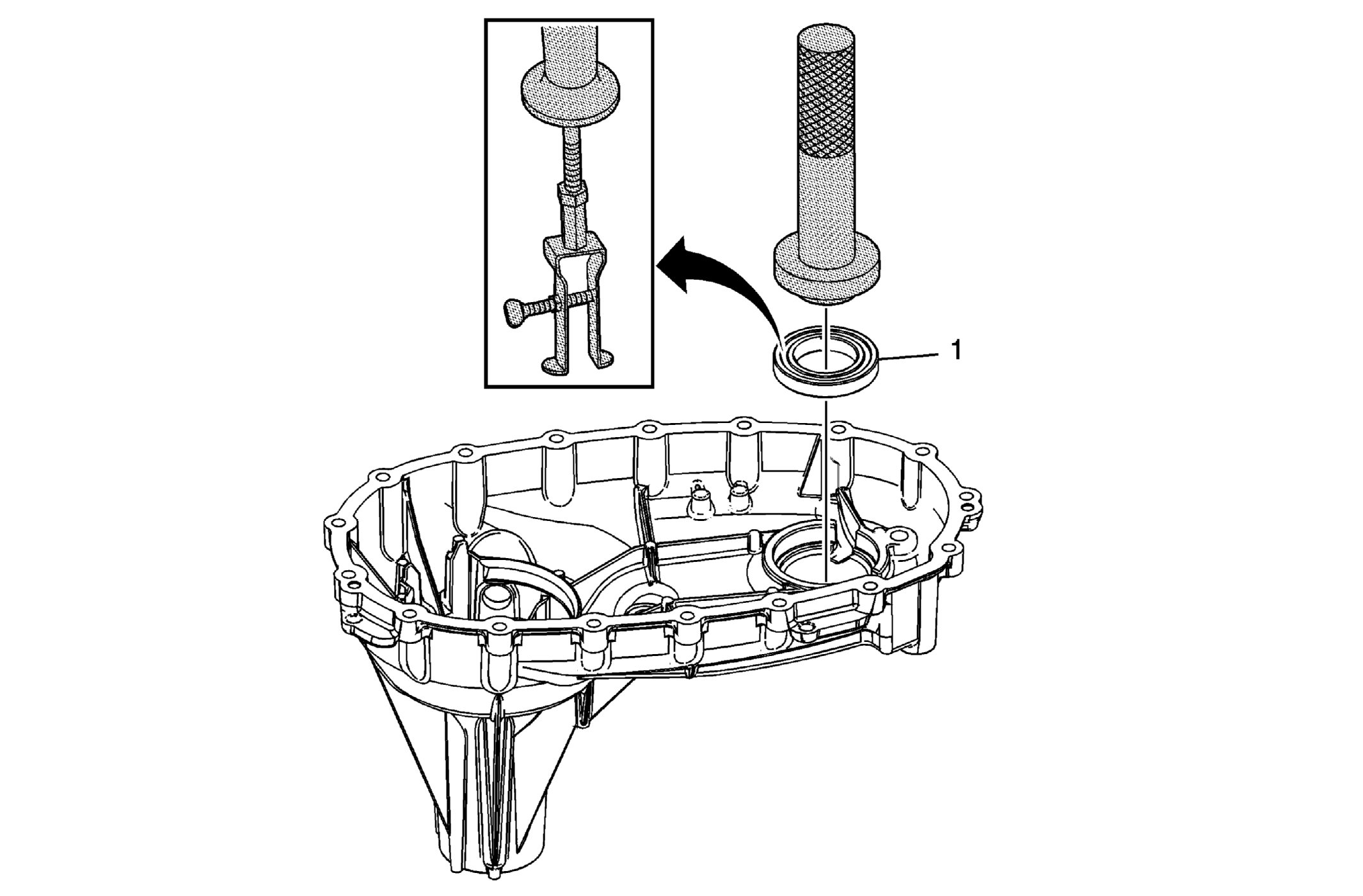

Fig 1: Front Output Shaft Rear Bearing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Ensure the bearing is installed squarely into the bearing bore.
1	Transfer Case Front Output Shaft Rear Bearing Assembly Tip: A suitable adapter is required to use with the J 8092 to install. Press the bearing until the bearing bottoms on the rear case half. Special Tools J 8092 Driver Handle J 23907 Slide Hammer with Bearing Adapter J 26941 Bushing and Bearing Remover - 3-4 in For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Ensure the bearing is installed squarely into the bearing bore.

Transfer Case Front Output Shaft Rear Bearing Assembly
Tip:

A suitable adapter is required to use with the J 8092 to install.
Press the bearing until the bearing bottoms on the rear case half.

Special Tools

J 8092 Driver Handle
J 23907 Slide Hammer with Bearing Adapter
J 26941 Bushing and Bearing Remover - 3-4 in

For equivalent regional tools, refer to Special Tools .
