Removal & Installation

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Ensure ignition is off and key is removed. Remove Instrument Panel Cluster (IPC) trim plate by pulling gently rearward on corner of trim plate.
  2. Remove passenger-side air bag disable switch from instrument panel. See Fig 1. Disconnect electrical connector from rear of air bag disable switch. To install, reverse removal procedure.

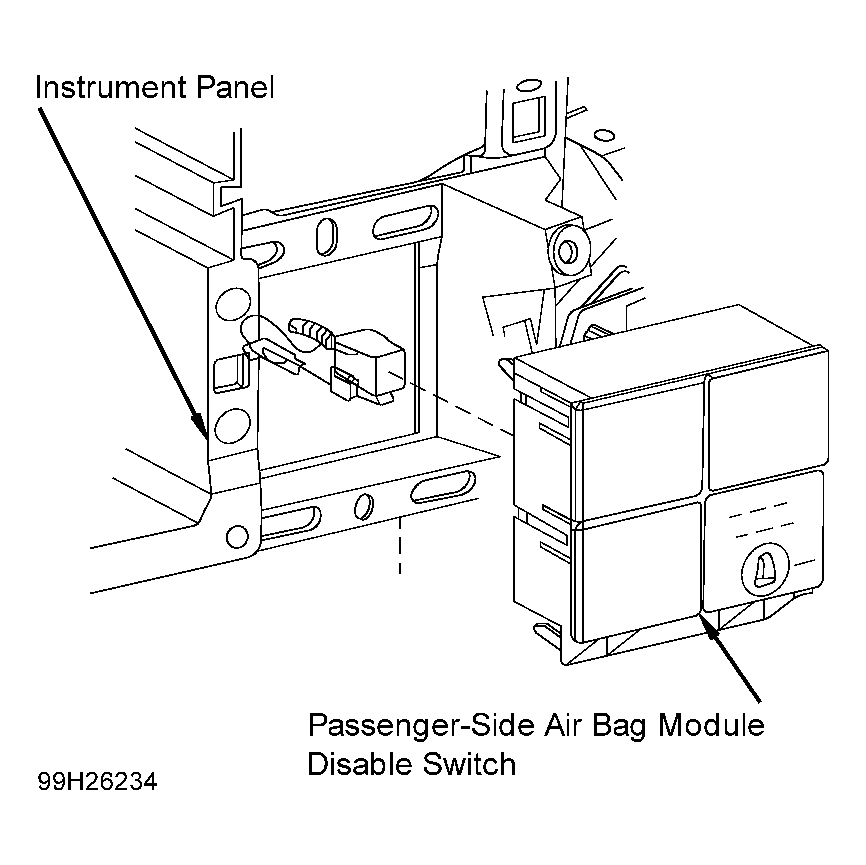

Fig 1: Identifying Passenger-side Air Bag Module Disable Switch
G99H26234Courtesy of GENERAL MOTORS CORP.
