X700 Body Harness to Left Rear Door Harness

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM1851882GM1664575Courtesy of GENERAL MOTORS CORP.GENERAL MOTORS CORP.
GM1851882GM1664575Courtesy of GENERAL MOTORS CORP.GENERAL MOTORS CORP.

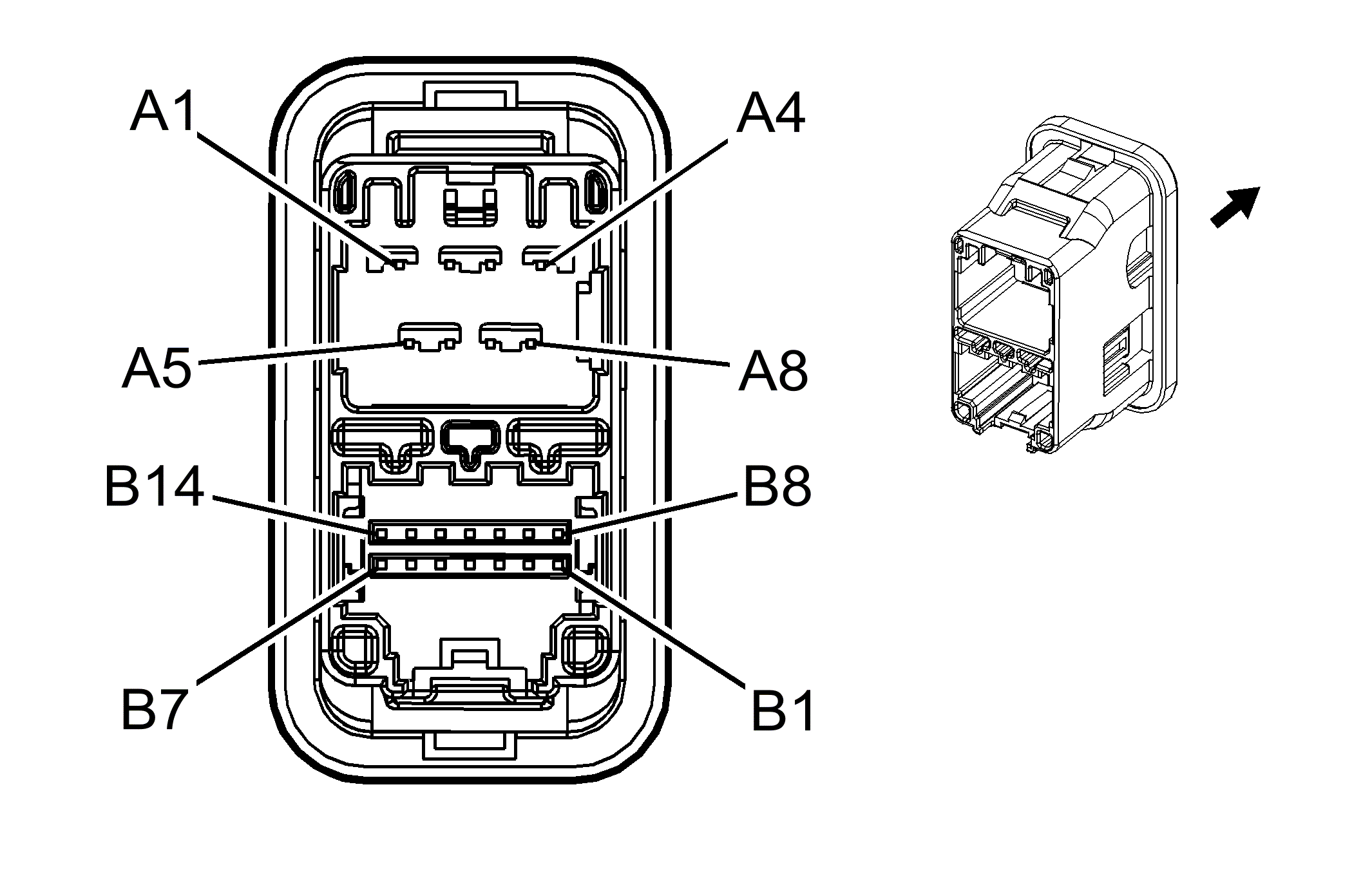

GM1986162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-6448-40
  • Service: See Catalog
  • Description: 8-Way F (L-GY)
 Connector Part Information
  • OEM: 7282-0523-30
  • Service: See Catalog
  • Description: 22-Way M (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit

Connector Part Information
  • OEM: 7283-9068-90
  • Service: See Catalog
  • Description: 14-Way F (BU)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X700 Body Harness to Left Rear Door Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 1 RD/WH 4740 Battery Positive Voltage A1 1 RD/WH 4740 Battery Positive Voltage
2 1 GY 5133 Left Rear Passenger Door Lock Actuator Deadbolt Control (UA2) A2 1 GY 5133 Left Rear Passenger Door Lock Actuator Deadbolt Control (UA2)
3 1 GY 295 Door Lock Actuator Lock Control (Midgate Latch Release Control) A3 1 GY 295 Door Lock Actuator Lock Control (Midgate Latch Release Control)
4 2 BK 350 Ground A4 2 BK 350 Ground
5 1 TN 294 Door Lock Actuator Unlock Control A5 1 TN 294 Door Lock Actuator Unlock Control
6 - - Not Used A6 - - Not Used
7 0.35 GY 8 Instrument Panel Lamp Supply Voltage/Instrument Panel Lamps Dimmer Switch Signal A7 0.35 GY 8 Instrument Panel Lamp Supply Voltage/Instrument Panel Lamps Dimmer Switch Signal
8 0.35 GY/BK 690 Courtesy Lamp Low Control/Front Interior Lamp Control/Rear Courtesy Lamp Relay Control/Courtesy Lamp Supply Voltage/Courtesy Lamp High Control A8 0.35 GY/BK 690 Courtesy Lamp Low Control/Front Interior Lamp Control/Rear Courtesy Lamp Relay Control/Courtesy Lamp Supply Voltage/Courtesy Lamp High Control
1 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal B1 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal
2 0.35 D-BU/WH 1179 Left Rear Door Open Switch Signal B2 0.35 D-BU/WH 1179 Left Rear Door Open Switch Signal
3 0.35 D-BU 1307 Power Window Master Switch Lockout Signal B3 0.35 D-BU 1307 Power Window Master Switch Lockout Signal
4 0.35 PU 169 Power Window Master Switch Left Rear Down Signal B4 0.35 PU 169 Power Window Master Switch Left Rear Down Signal
5 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal B5 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal
6 0.5 YE 116 Left Rear Speaker Output (-) B6 0.5 YE 116 Left Rear Speaker Output (-)
7 0.5 BN 199 Left Rear Speaker Output (+) B7 0.5 BN 199 Left Rear Speaker Output (+)
8 0.35 WH 901 IC 2 Control (TSQ) B8 0.35 WH 901 IC 2 Control (TSQ)
9-10 - - Not Used B9-B10 - - Not Used
11 0.35 L-BU 6622 Left Rear Side Impact Sensing Module Signal B11 0.35 L-BU 6622 Left Rear Side Impact Sensing Module Signal
12 0.35 L-GN/BK 6623 Left Rear Side Impact Sensing Module Low Reference B12 0.35 L-GN/BK 6623 Left Rear Side Impact Sensing Module Low Reference
13-14 - - Not Used B13-B14 - - Not Used
