Apply Cam, and Clutch Pack Installation

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

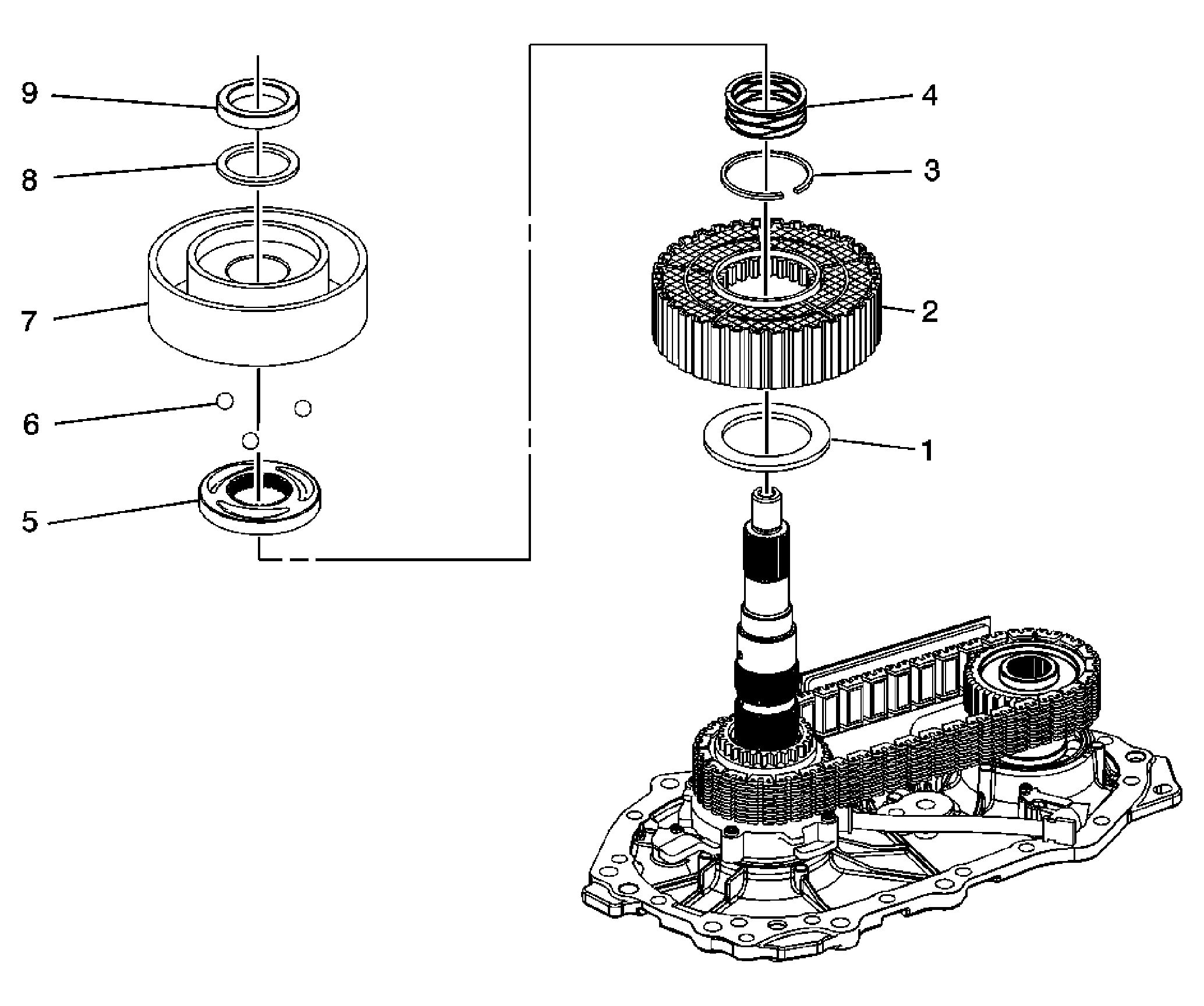

Fig 1: View Of Apply Cam, and Clutch Pack

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Front Output Shaft Drive Sprocket Spacer
2	Transfer Case Clutch Pack Assembly Tip: Refer to Transfer Case Cleaning and Inspection Clutch Components for proper clutch assembly. Inspect for the clutch hub and housing to be fully seated on the input shaft with no gap. The snap ring will not assemble if not fully seated.
3	Transfer Case Snap Ring
4	Transfer Case Wave Spring
5	Transfer Case Apply Cam
6	Transfer Case Balls
7	Transfer Case Rotor Assembly
8	Transfer Case Thrust Bearing
9	Transfer Case Thrust Washer Tip: Always verify that the correct thrust washer is installed for proper clutch end-play. Replacement of internal components will alter the end-play. Refer to Four Wheel Drive Clutch Shim Selection .
