Rear Output Shaft Seal and Shift Detent Plunger Assembly Removal

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

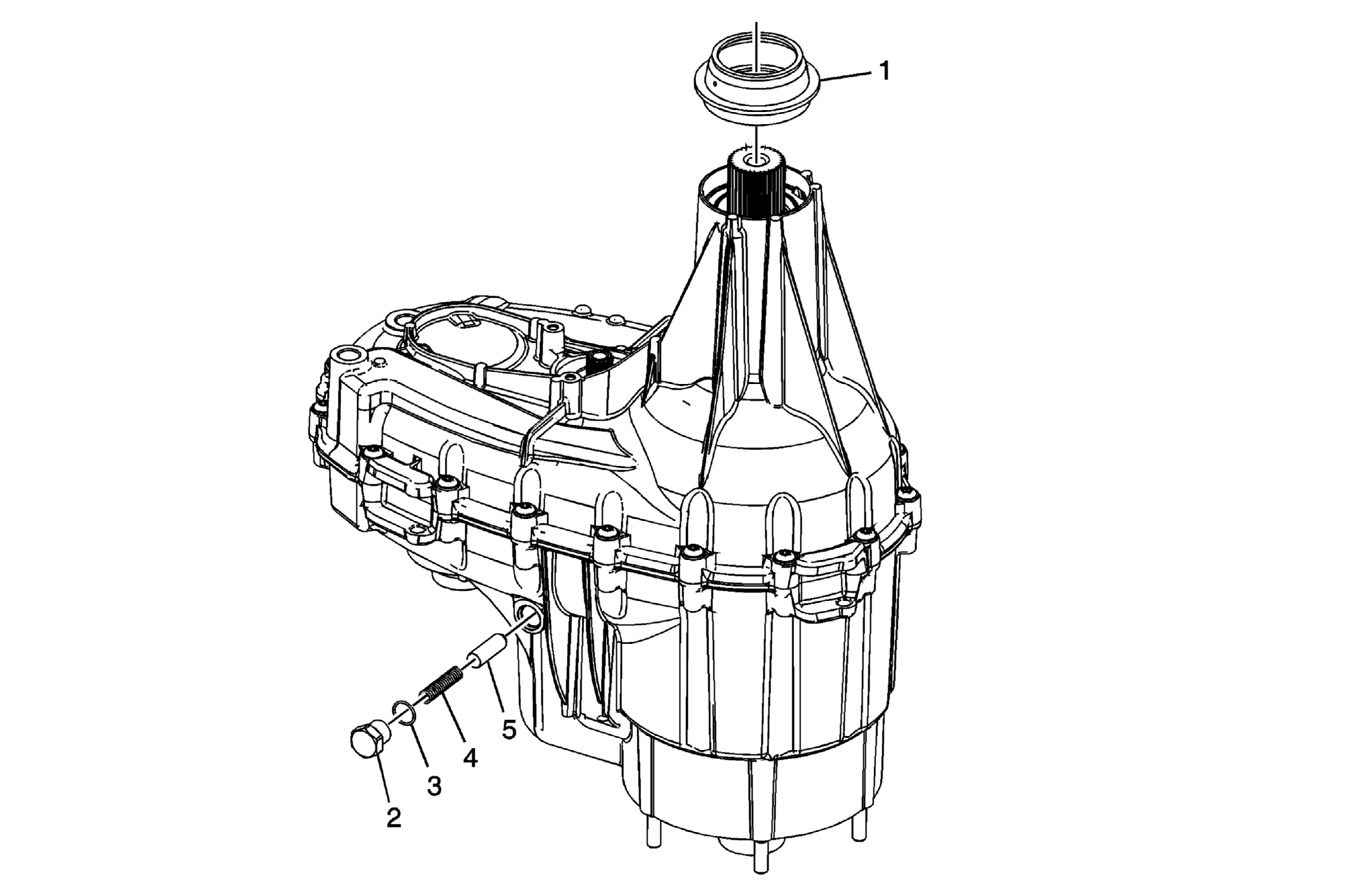

Fig 1: View Of Transfer Case Rear Output Shaft Seal & Shift Detent Plunger Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Rear Output Shaft Seal NOTE: Refer to Transfer Case Seal Removal Notice .
2	Transfer Case Shift Detent Plunger Plug
3	Transfer Case Shift Detent Plunger Plug Seal
4	Transfer Case Shift Detent Spring
5	Transfer Case Shift Detent Plunger
