Shift Fork Assemblies and Rear Output Shaft Assembly Installation

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

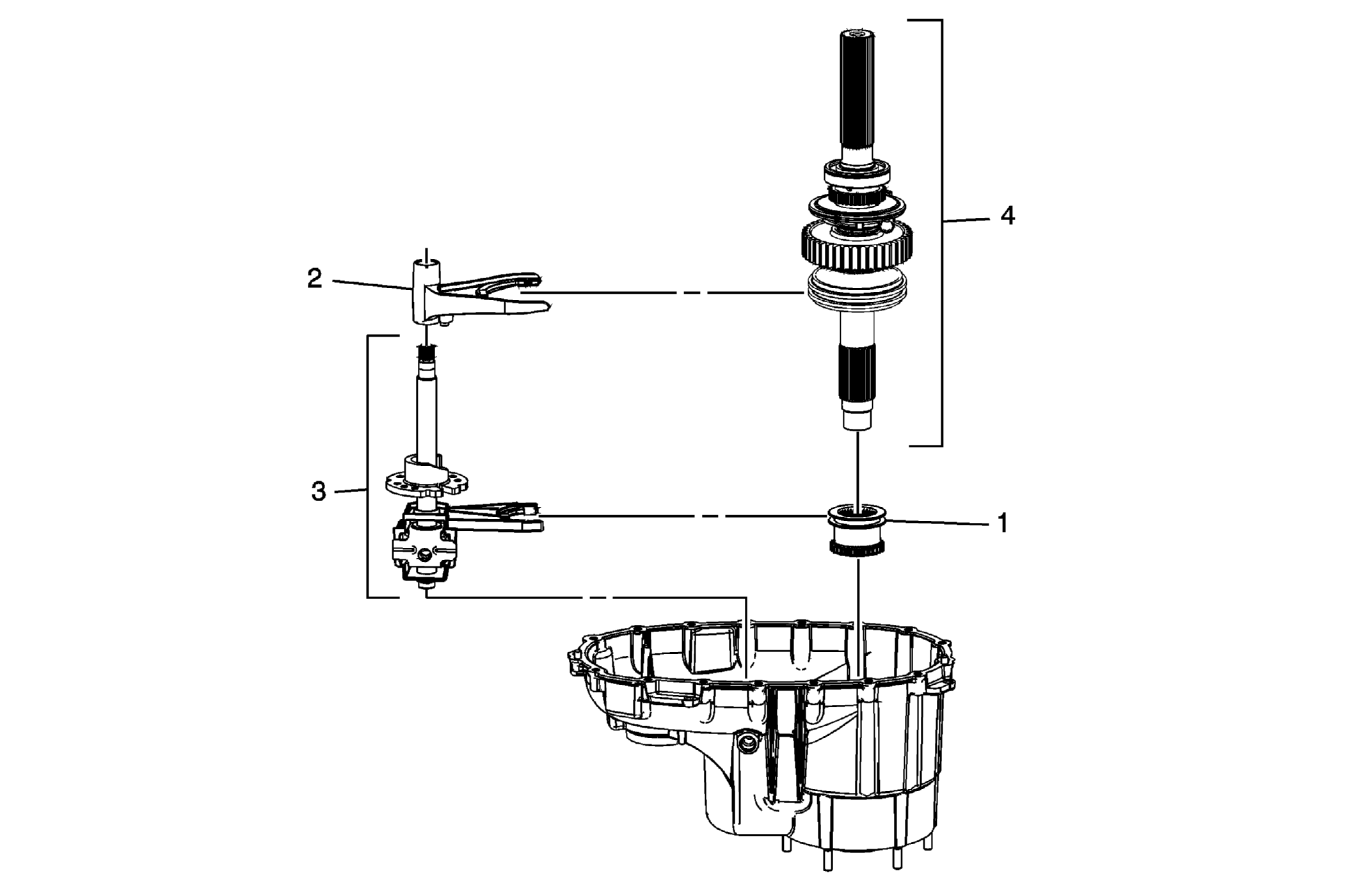

Fig 1: View Of Shift Fork Assemblies & Rear Output Shaft Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Tip: Load all 4 components simultaneously. The two/four wheel drive actuator cam profile will be aligned with the shift detent plunger bore when fully installed.
1	Transfer Case High/Low Clutch
2	Transfer Case Two/Four Wheel Drive Shift Fork Assembly
3	Transfer Case High/Low Shift Fork Assembly
4	Transfer Case Rear Output Shaft Assembly
