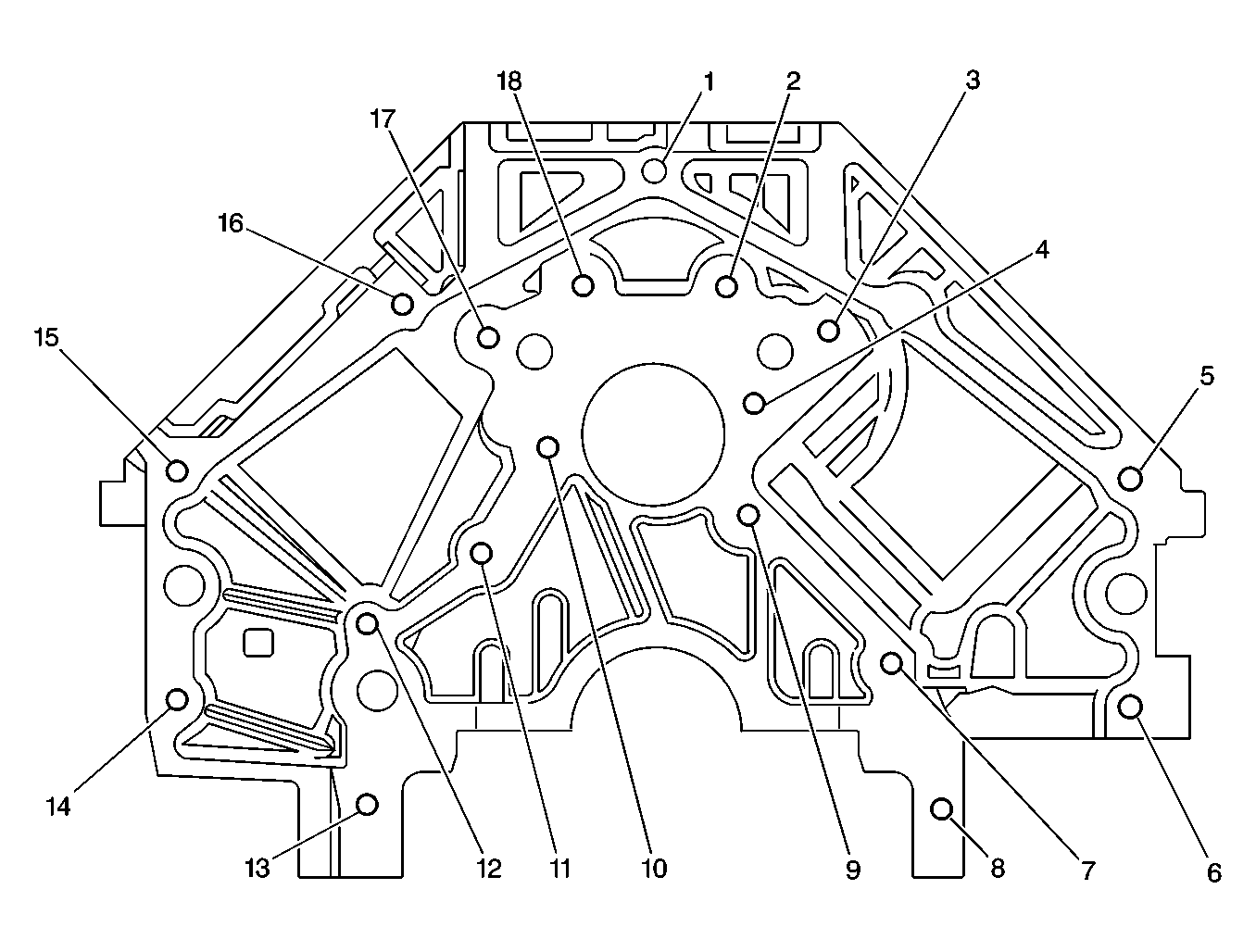

Engine Block - Rear View
Engine Block - Rear View
| Hole | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth - Maximum mm (in) | Tap Depth - Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| 1 | M10 x 1.5 | J 42385-215 | J 42385-211 | J 42385-212 | J 42385-213 | J 42385-214 | 27.0 (1.06) | 21.5 (0.846) |
| 2-4 | M8 x 1.25 | J 42385-210 | J 42385-206 | J 42385-207 | J 42385-208 | J 42385-209 | 22.5 (0.885) | 17.5 (0.688) |
| 5-6 | M10 x 1.5 | J 42385-215 | J 42385-211 | J 42385-212 | J 42385-213 | J 42385-214 | 27.0 (1.06) | 21.5 (0.846) |
| 7-13 | M8 x 1.25 | J 42385-210 | J 42385-206 | J 42385-207 | J 42385-208 | J 42385-209 | 22.5 (0.885) | 17.5 (0.688) |
| 14-16 | M10 x 1.5 | J 42385-215 | J 42385-211 | J 42385-212 | J 42385-213 | J 42385-214 | 27.0 (1.06) | 21.5 (0.846) |
| 17-18 | M8 x 1.25 | J 42385-210 | J 42385-206 | J 42385-207 | J 42385-208 | J 42385-209 | 22.5 (0.885) | 17.5 (0.688) |
