Blower Motor Inoperative

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2. This step tests for blower motor operation in any speed setting.

3. This step tests for voltage at the blower motor.

4. This step tests for a possible open in the blower motor resistor assembly or blower motor ground circuit.

5. This step tests for output voltage from the blower motor switch.

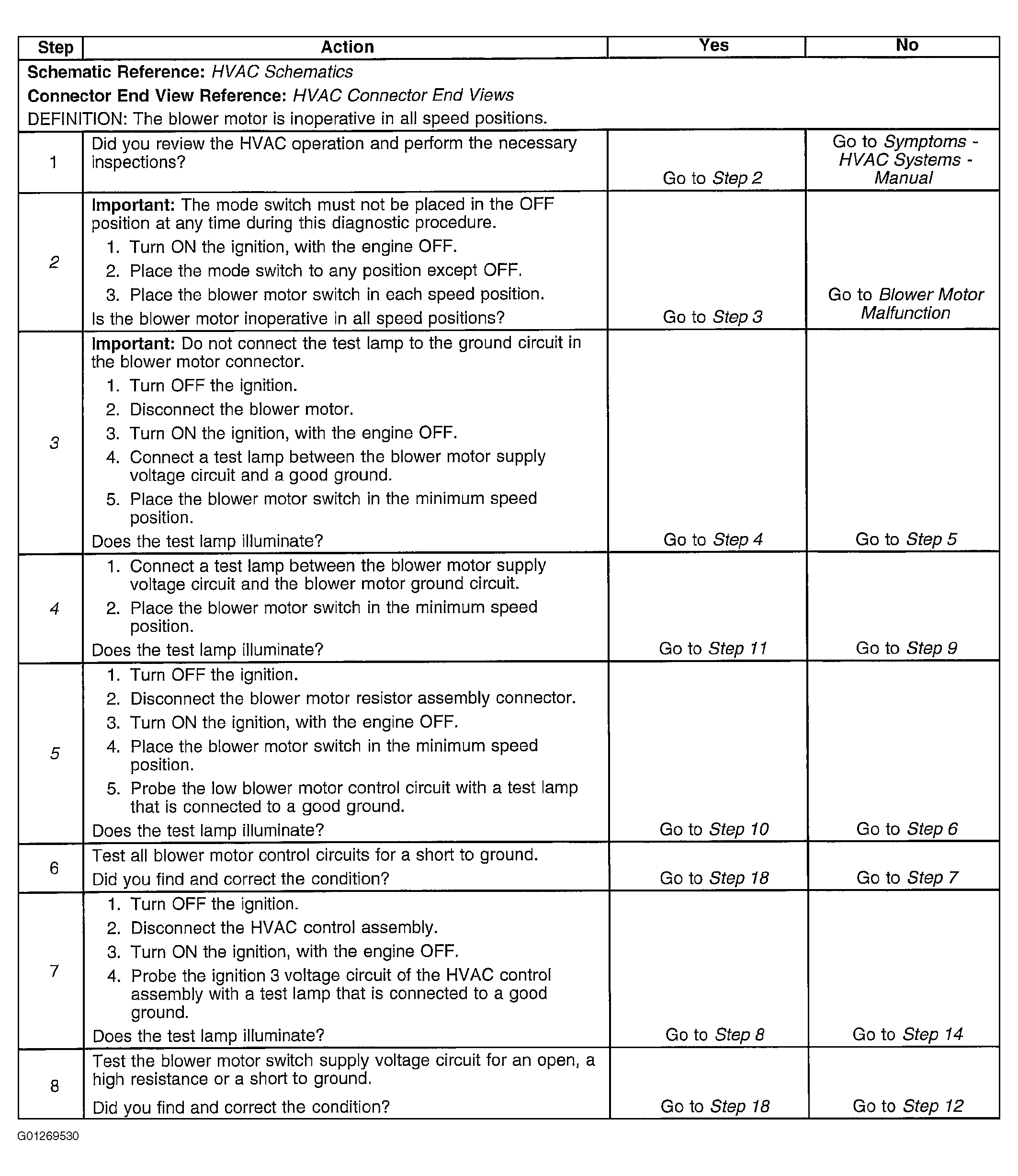

Fig 1: Blower Motor Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

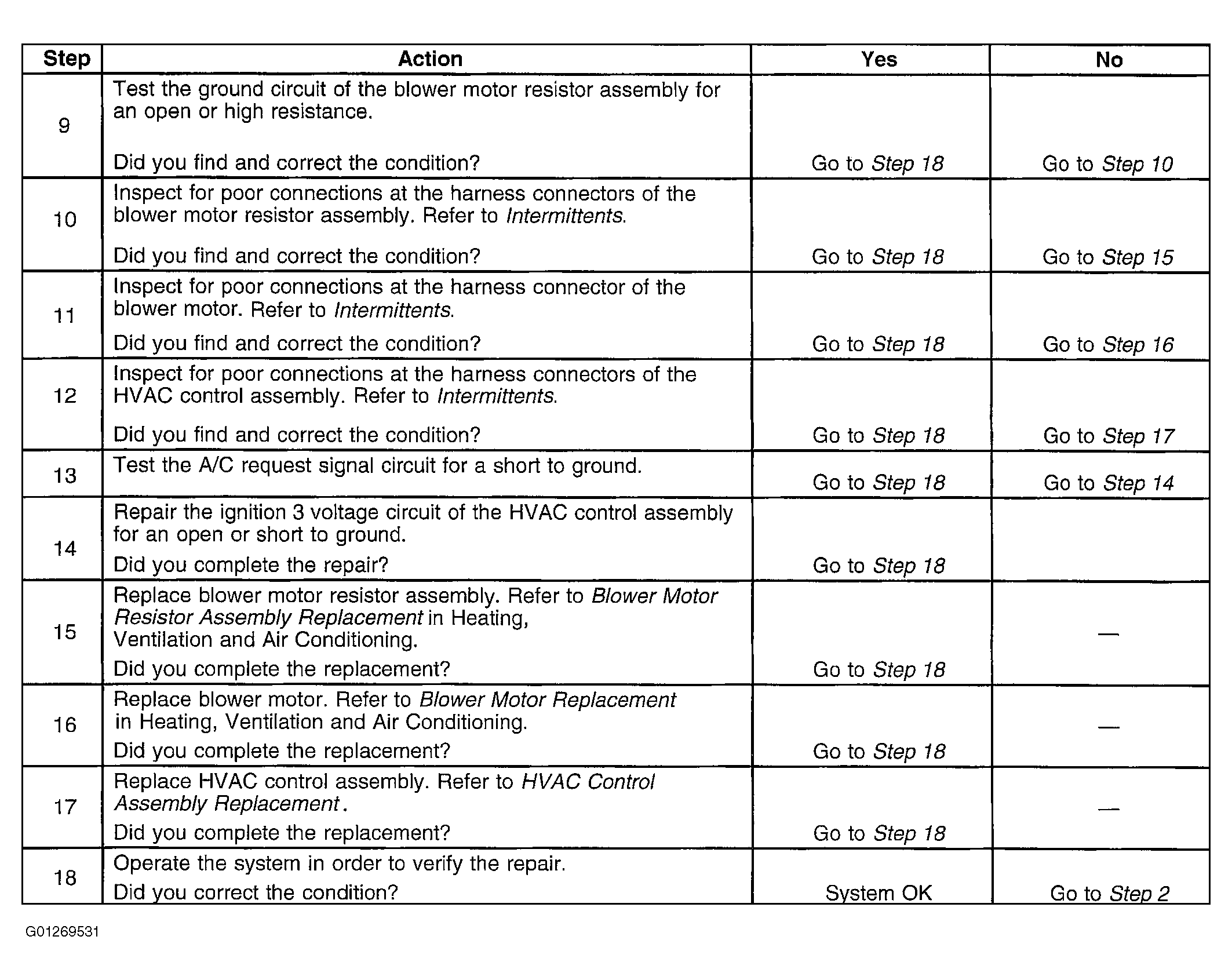

Fig 2: Blower Motor Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
