Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper intermediate shaft and connect the upper intermediate shaft to the steering column.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the upper intermediate shaft (2) to steering column retaining nut and bolt (1).

    Tighten

    Tighten the nut to 64 N.m (47 lb ft).

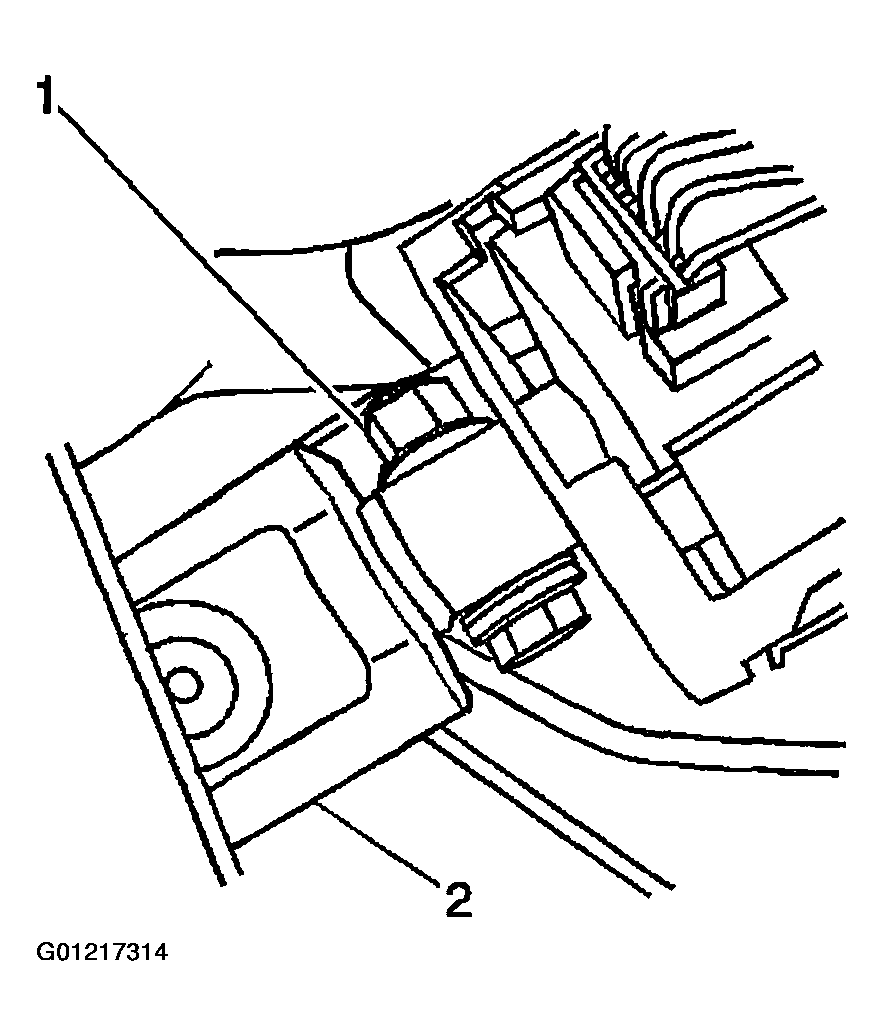

    Fig 1: Installing Upper Intermediate Shaft To Steering Column Retaining Nut & Bolt
    G01217314Courtesy of GENERAL MOTORS CORP.
  3. Install the intermediate shaft bearing. Refer to Intermediate Steering Shaft Bearing Replacement .
  4. Remove the J-42640 from the steering column lower access hole.

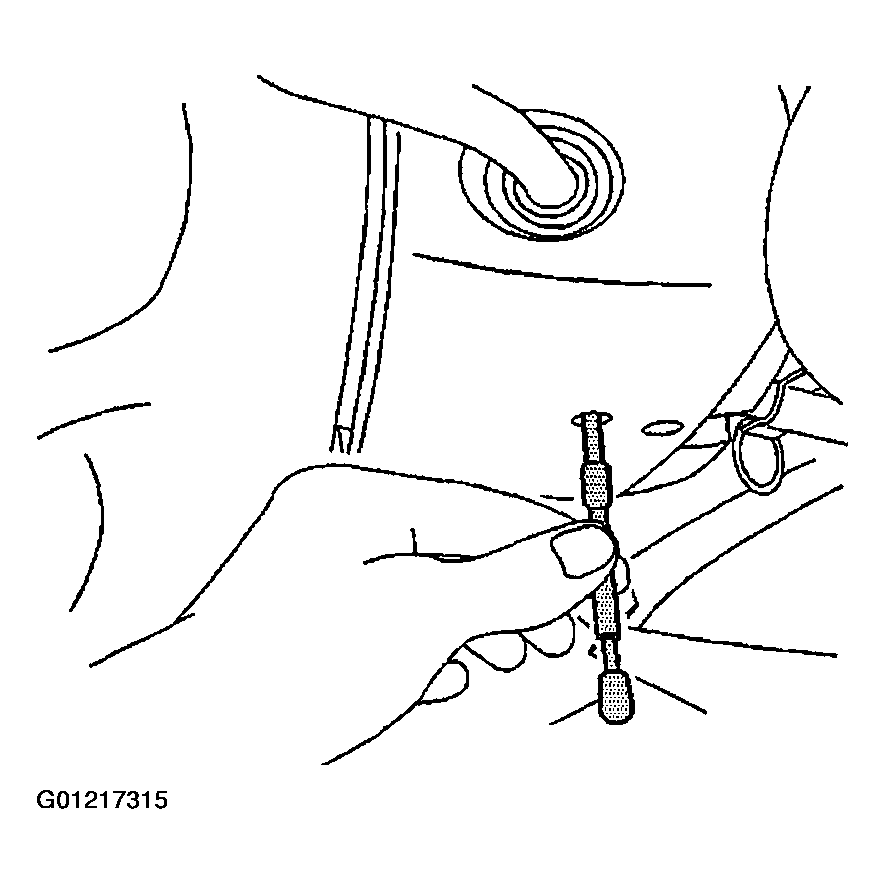

    Fig 2: Removing J-42640 From Steering Column Lower Access Hole
    G01217315Courtesy of GENERAL MOTORS CORP.
