Tire Rotation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

In order to equalize wear, rotate the tires at the specified intervals. In addition to scheduled rotation, rotate the tire and wheel assembly whenever you notice uneven tire wear.

Radial tires tend to wear faster in the shoulder area, particularly in front positions, due to design. Radial tires in non-drive locations may develop an irregular wear pattern that can generate tire noise. This especially makes regular tire rotation necessary.

For vehicles with single rear wheels (four tires), rotate the tires as shown.

Fig 1: Tire Rotation For Single Rear Wheels (4 Tires)
Courtesy of GENERAL MOTORS CORP.

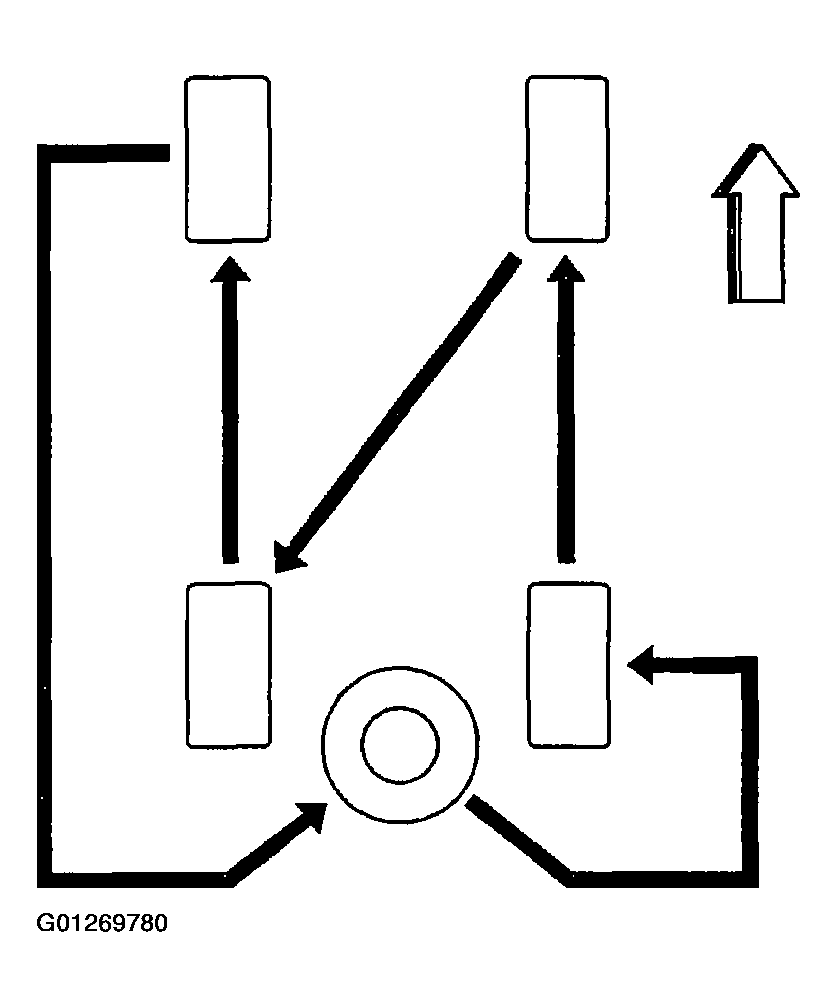

For vehicles with single rear wheels (five tires), rotate the tires as shown.

Fig 2: Tire Rotation For Single Rear Wheels (5 Tires)
Courtesy of GENERAL MOTORS CORP.
For vehicles with dual rear wheels (same tire sizes and load ranges), rotate the tires as shown.

Fig 3: Tire Rotation For Dual Rear Wheels (Same Tire Sizes & Load Ranges)
Courtesy of GENERAL MOTORS CORP.

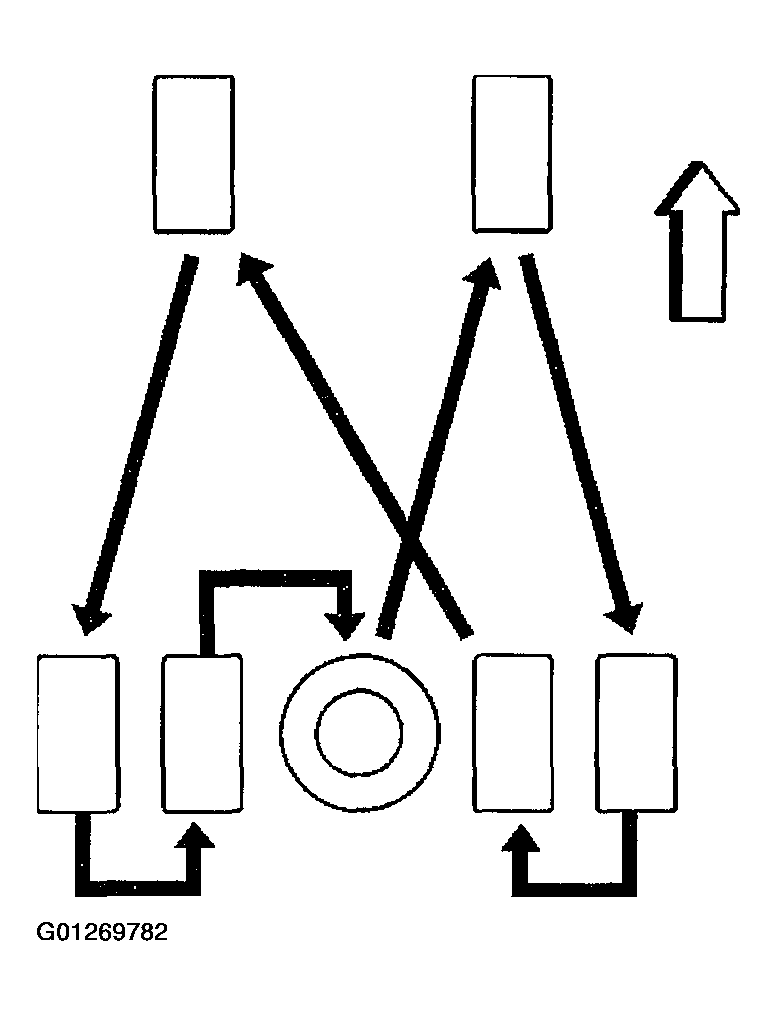

For vehicles with dual rear wheels (including the spare tire), rotate the tires as shown.

Fig 4: Tire Rotation For Dual Rear Wheels (Including Spare Tire)
Courtesy of GENERAL MOTORS CORP.
