Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the rotor. Refer to BRAKE ROTORS .
  4. Remove the wheel stud from the axle flange using the J 43631 for the 15 series.

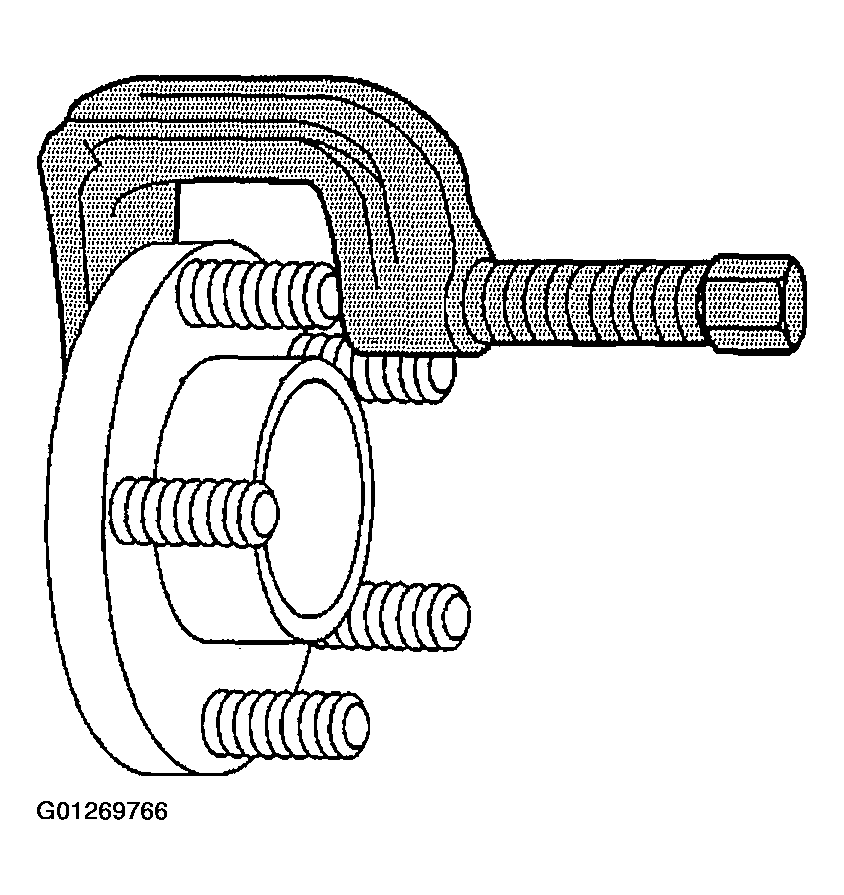

    Fig 1: Removing Wheel Stud From Axle Flange Using J 43631
    G01269766Courtesy of GENERAL MOTORS CORP.
  5. Remove the axle shaft for vehicles with 9.5 in ring gear. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  6. Remove the rear hub assembly for vehicles with 10.5 in ring gear. Refer to Rear Axle Shaft Replacement in Rear Drive Axle .
  7. Remove the wheel stud from the axle flange using the J 43631  .
  8. Remove the wheel stud from the hub flange using the J 43631  .
