Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the shock absorber upper mounting bolts (1).
  3. Remove the shock absorber lower mounting nut (3) and the bolt (4).
  4. Remove the shock absorber (2).

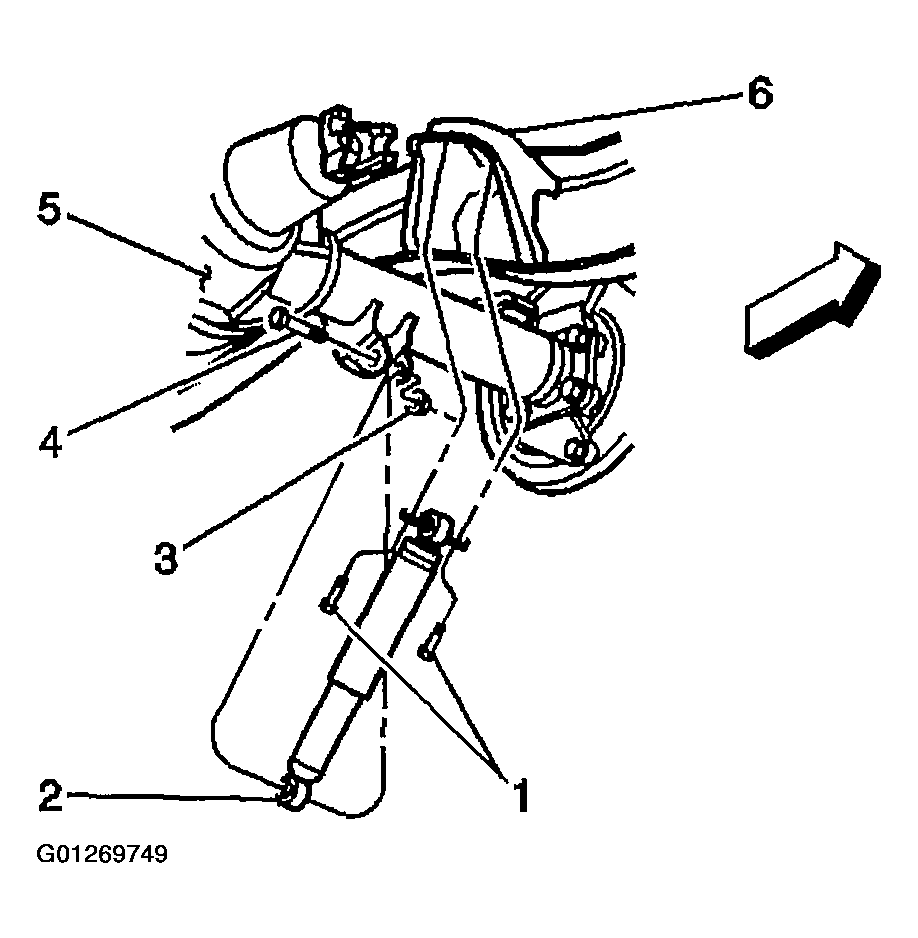

    Fig 1: Removing Shock Absorber Bolts & Nuts
    G01269749Courtesy of GENERAL MOTORS CORP.
