Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the bolt.
  3. Remove the drive belt tensioner.

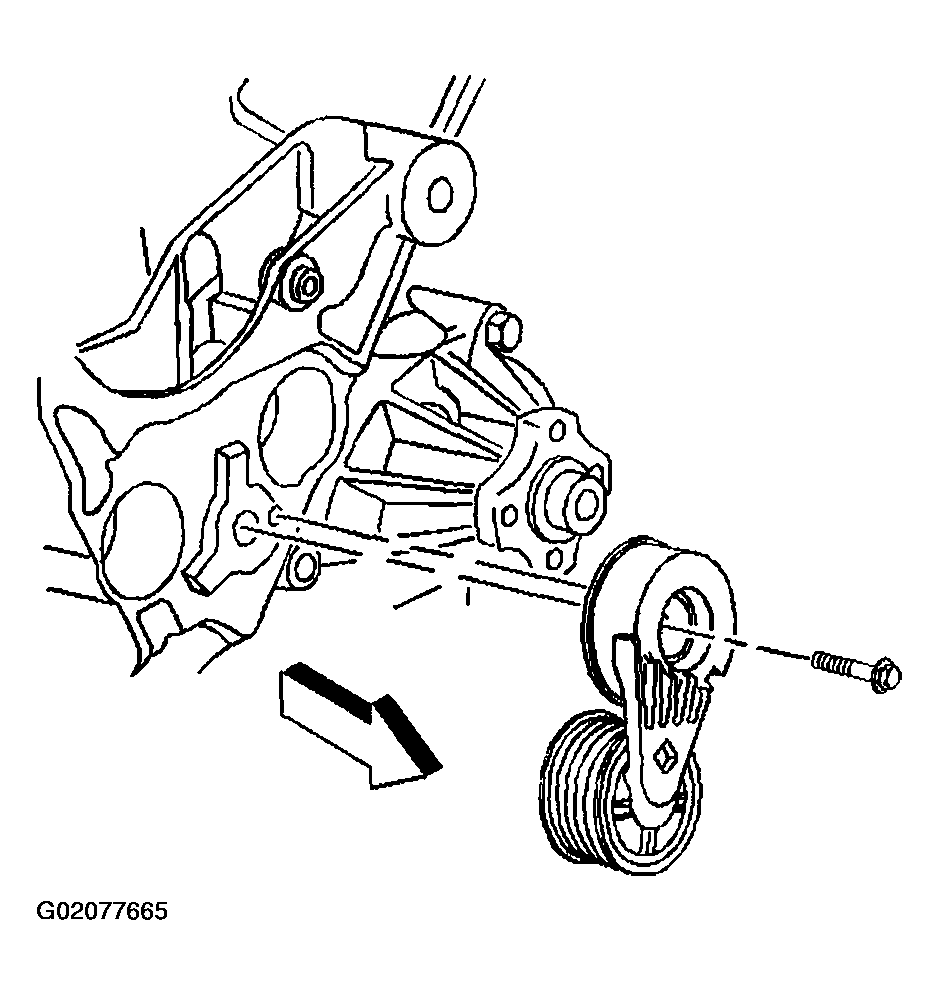

    Fig 1: Removing Drive Belt Tensioner
    G02077665Courtesy of GENERAL MOTORS CORP.
