Oil Pan Removal

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the engine oil level sensor, if applicable.

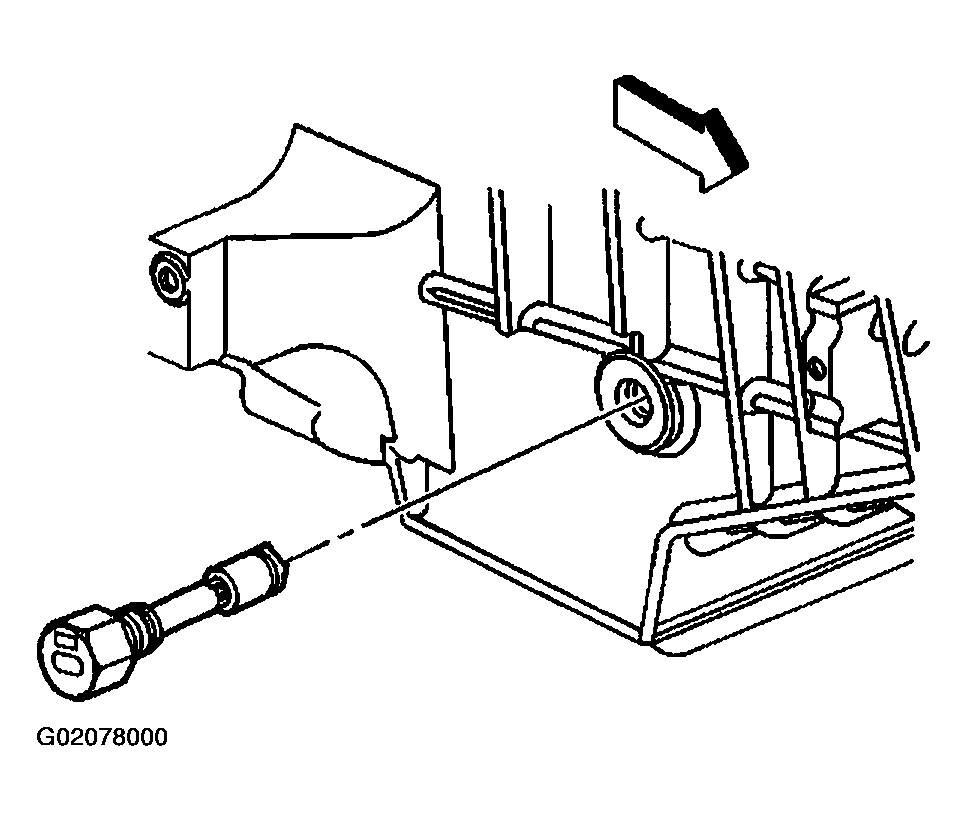

    Fig 1: Removing Engine Oil Level Sensor
    G02078000Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan bolts and nuts.

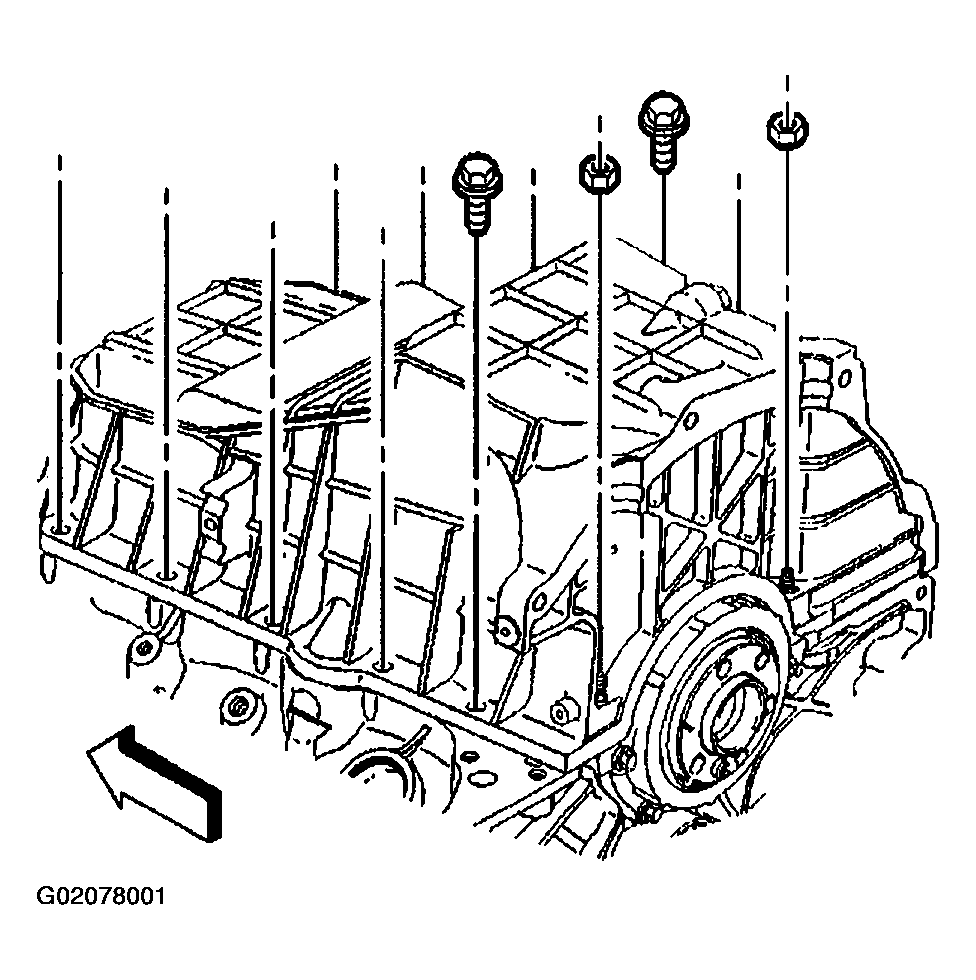

    Fig 2: Removing Oil Pan Bolts & Nuts
    G02078001Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan.

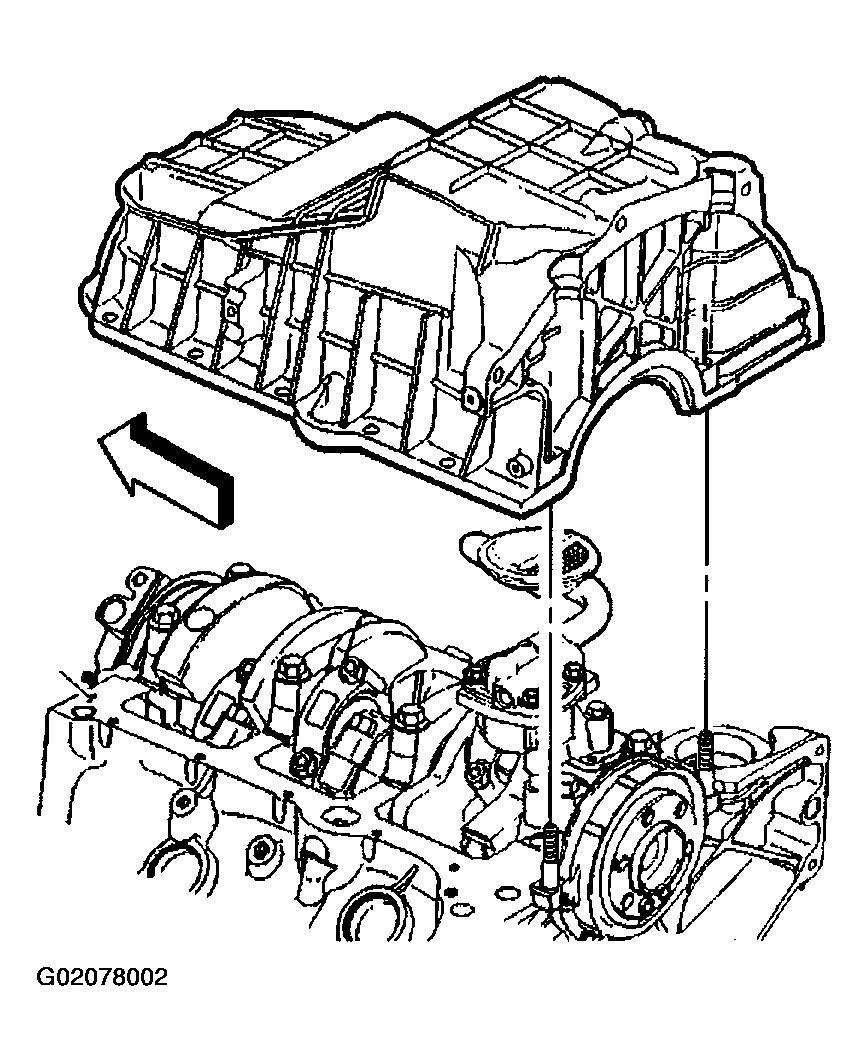

    Fig 3: Removing Oil Pan
    G02078002Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan gasket.
  5. Discard the oil pan gasket.

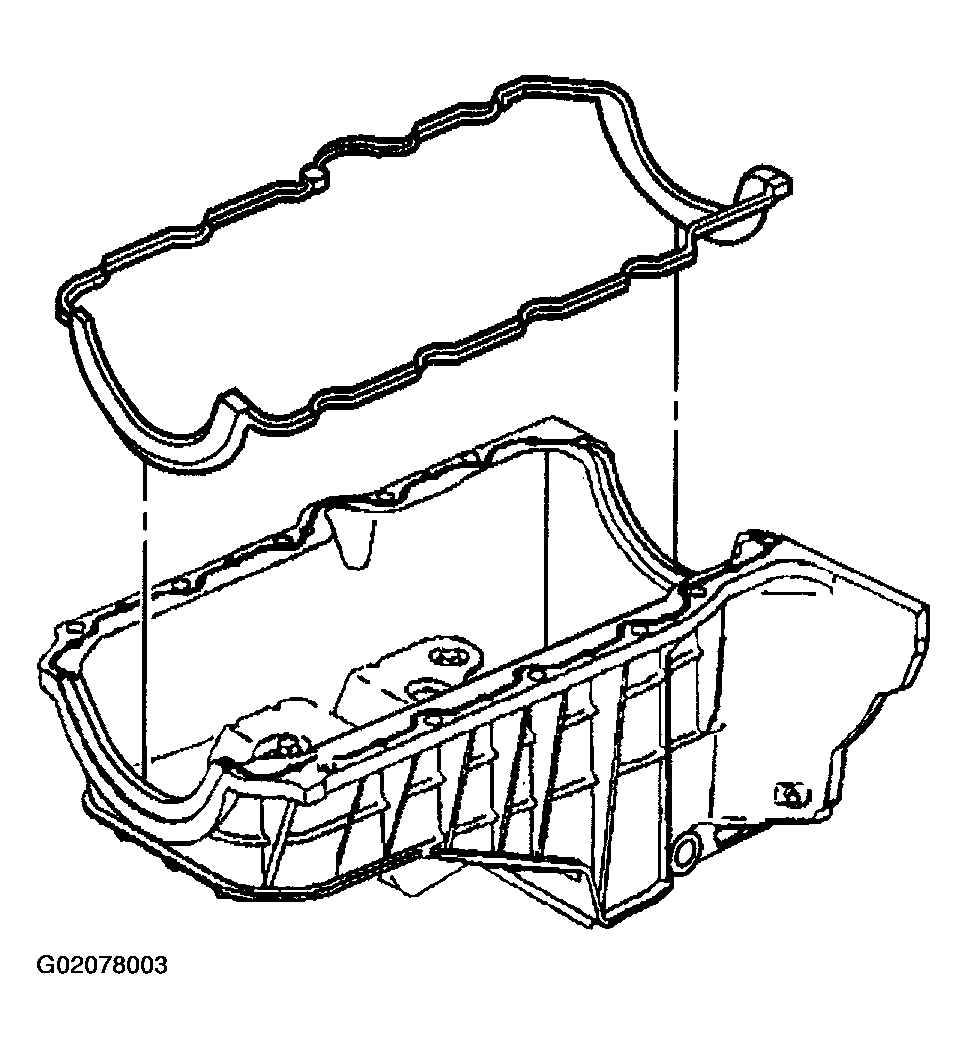

    Fig 4: Removing Oil Pan Gasket
    G02078003Courtesy of GENERAL MOTORS CORP.
