Base Engine Misfire with Excessive Oil Consumption

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

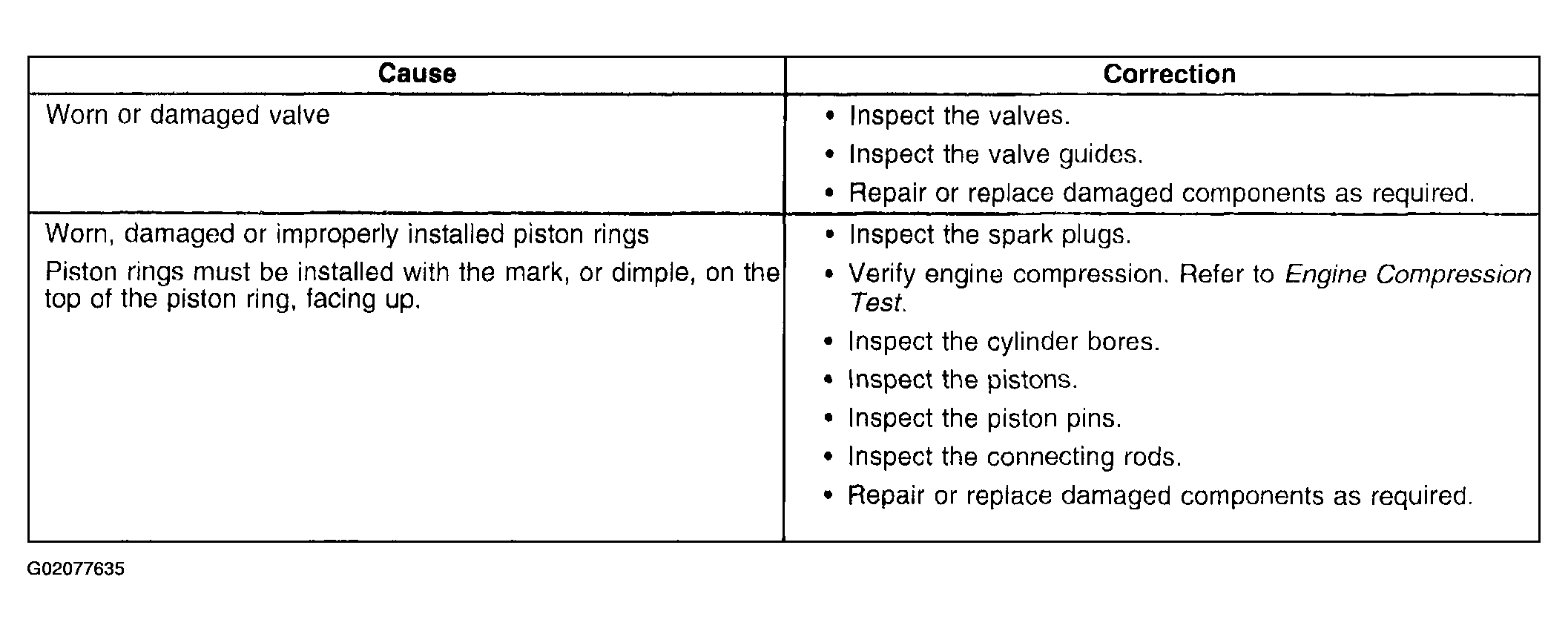

Fig 1: Base Engine Misfire With Excessive Oil Consumption
G02077635Courtesy of GENERAL MOTORS CORP.
