X160 I/P Harness to Body Harness

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

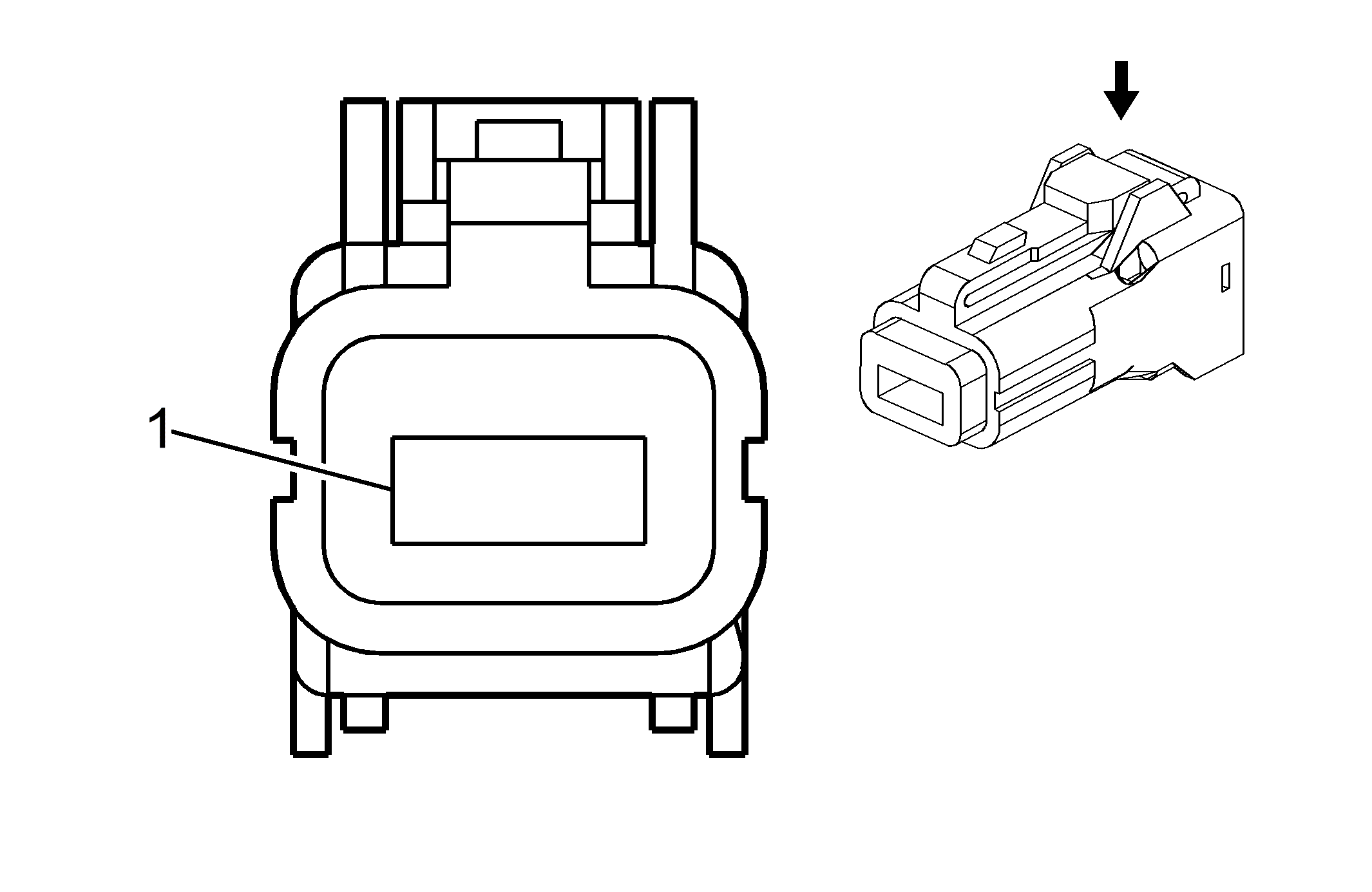

GM1856772Courtesy of GENERAL MOTORS CORP.

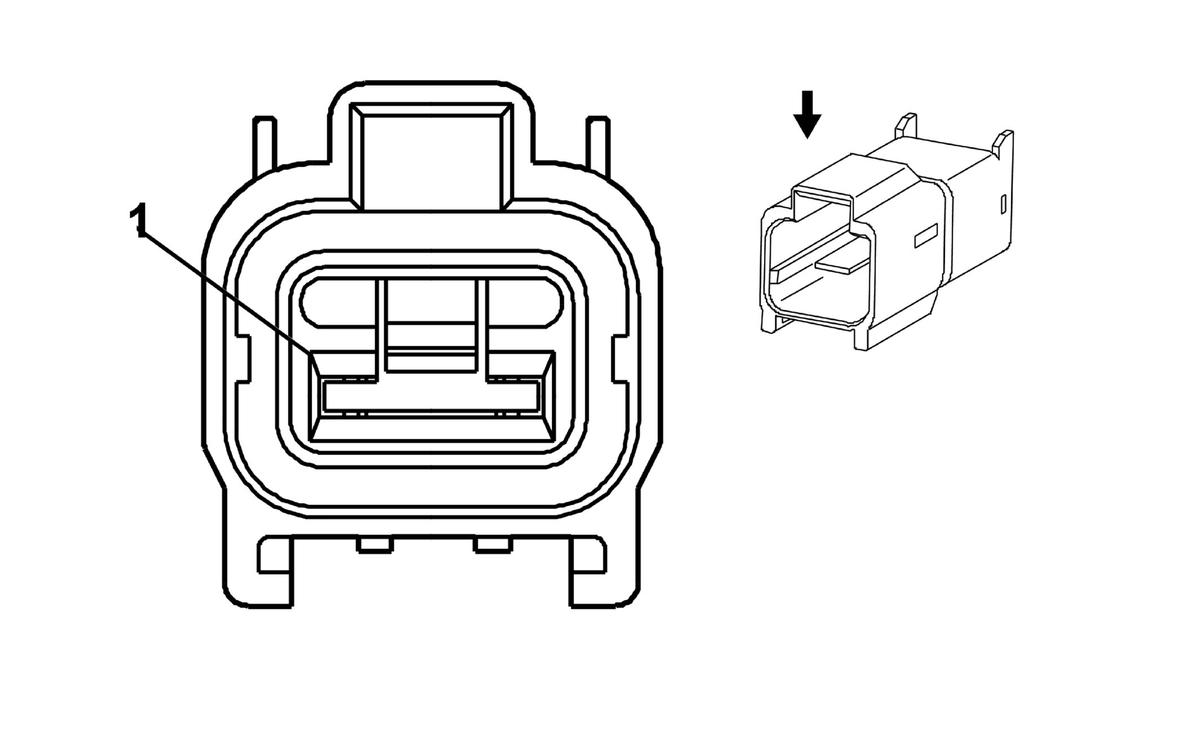

GM1856773Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7123-4210-30
  • Service: 12162870
  • Description: 1-Way F 375 Series, Sealed (BK)
 Connector Part Information
  • OEM: 7222-4210-30
  • Service: 19167742
  • Description: 1-Way M Y Type, Sealed (L-GY)
Terminal Part Information
  • Terminal/Tray: 7116-3250/10
  • Core/Insulation Crimp: G/3
  • Release Tool/Test Probe: 12094430/J-35616-22 (RD)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X160 I/P Harness to Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 5 PU 293 Rear Defog Element Supply Voltage 1 5 PU 293 Rear Defog Element Supply Voltage
