X135 Body Harness to Engine Harness

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

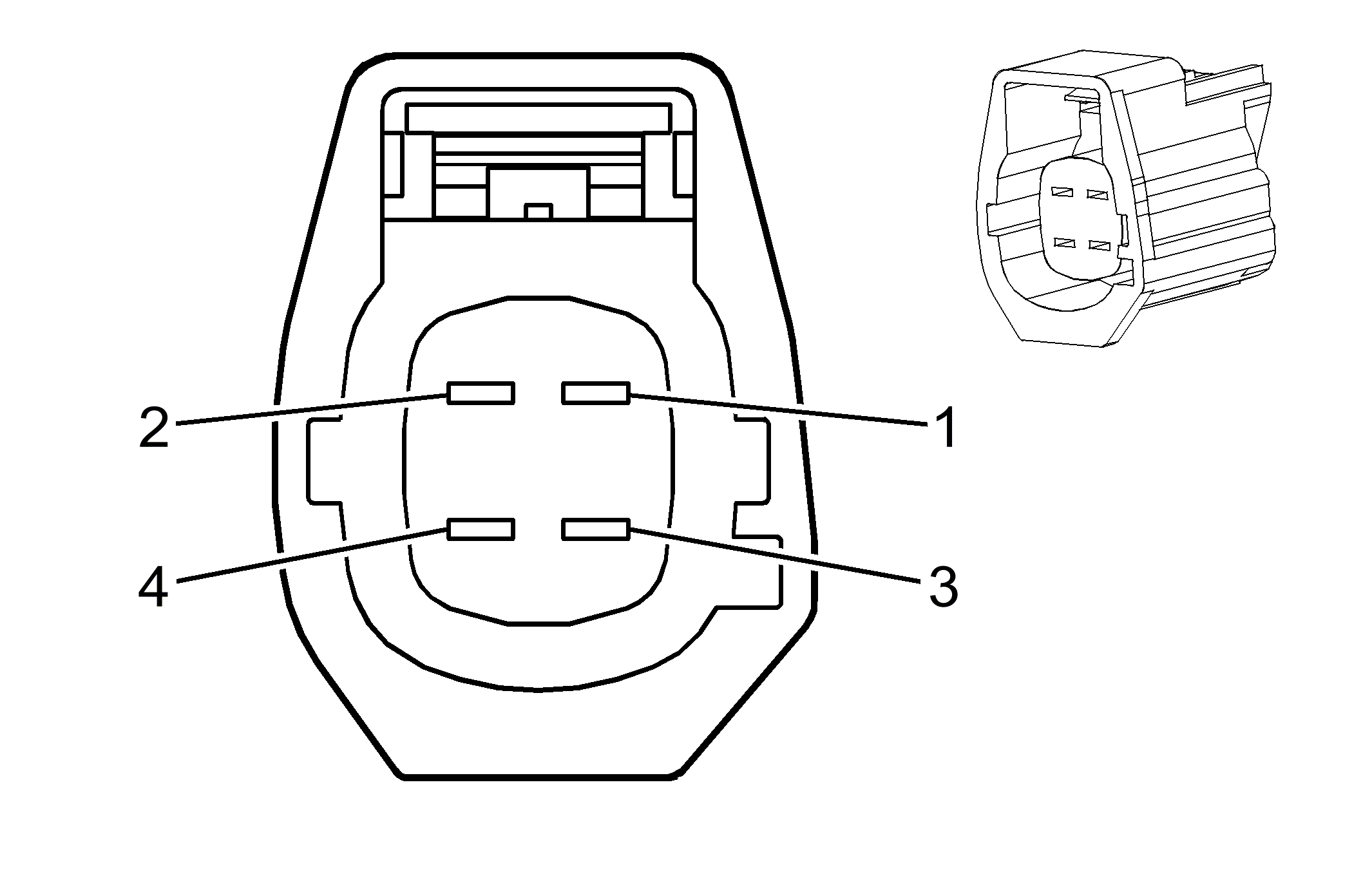

GM1479640Courtesy of GENERAL MOTORS CORP.
GM1479634Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5889-30
  • Service: 19153169
  • Description: 4-Way F YESC/USCAR Class 3 (BK)
 Connector Part Information
  • OEM: 7282-5889-30
  • Service: See Catalog
  • Description: 4-Way M YESC/USCAR Class III Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X135 Body Harness to Engine Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.5 RD 885 Left Rear Wheel Speed Sensor Low Reference 1 0.5 RD 885 Left Rear Wheel Speed Sensor Low Reference
2 0.5 BK 884 Left Rear Wheel Speed Sensor Signal 2 0.5 BK 884 Left Rear Wheel Speed Sensor Signal
3 0.5 WH 883 Right Rear Wheel Speed Sensor Low Reference 3 0.5 WH 883 Right Rear Wheel Speed Sensor Low Reference
4 0.5 BN 882 Right Rear Wheel Speed Sensor Signal 4 0.5 BN 882 Right Rear Wheel Speed Sensor Signal
