X121 Engine Harness to Fuel Injector Harness (LP1/LY7)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

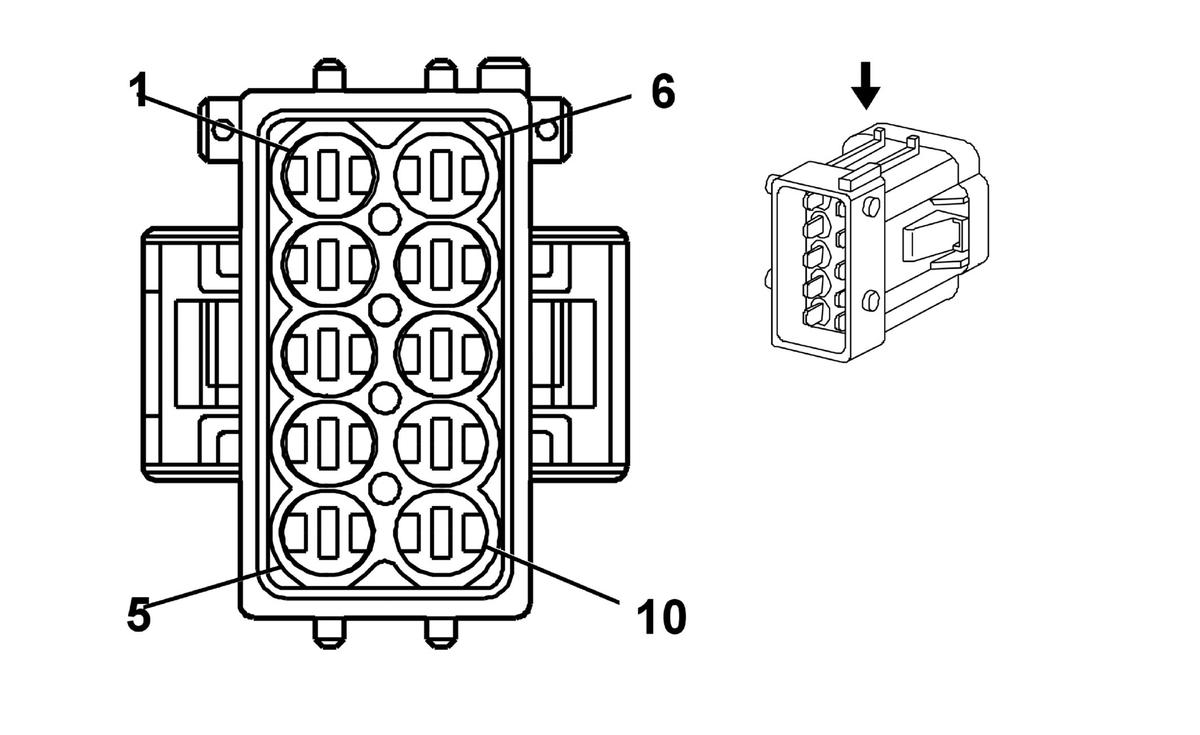

Connector Part Information OEM: 1-967189-1 Service: 88988927 Description: 10-Way F Junior Power Timer Series, Sealed (BK)	Connector Part Information OEM: 1-962352-1 Service: See Catalog Description: 10-Way M Junior Power Timer Series, Sealed (BK)
Terminal Part Information Pins: 1-8 Terminal/Tray: 4-964286-1/16 Core/Insulation Crimp: E/1 Release Tool/Test Probe: 12093647/J-35616-4A (PU)	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

X121 Engine Harness to Fuel Injector Harness (LP1/LY7)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	1 PK/BK	5291	Ignition 1 Voltage	1	0.8 PK/BK	5291	Ignition 1 Voltage
2	1 PK/BK	5292	Ignition 1 Voltage	2	0.8 PK/BK	5292	Ignition 1 Voltage
3	0.8 BK	1744	Fuel Injector 1 Control	3	0.75 BK	1744	Fuel Injector 1 Control
4	0.8 PK/BK	1746	Fuel Injector 3 Control	4	0.75 PK/BK	1746	Fuel Injector 3 Control
5	0.8 BK/WH	845	Fuel Injector 5 Control	5	0.75 BK/WH	845	Fuel Injector 5 Control
6	0.8 L-GN/BK	1745	Fuel Injector 2 Control	6	0.75 L-GN/BK	1745	Fuel Injector 2 Control
7	0.8 L-BU/BK	844	Fuel Injector 4 Control	7	0.75 L-BU/BK	844	Fuel Injector 4 Control
8	0.8 YE/BK	846	Fuel Injector 6 Control	8	0.75 YE/BK	846	Fuel Injector 6 Control
9-10	-	-	Not Used	9-10	-	-	Not Used
