Power Steering Gear Solenoid/Actuator Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

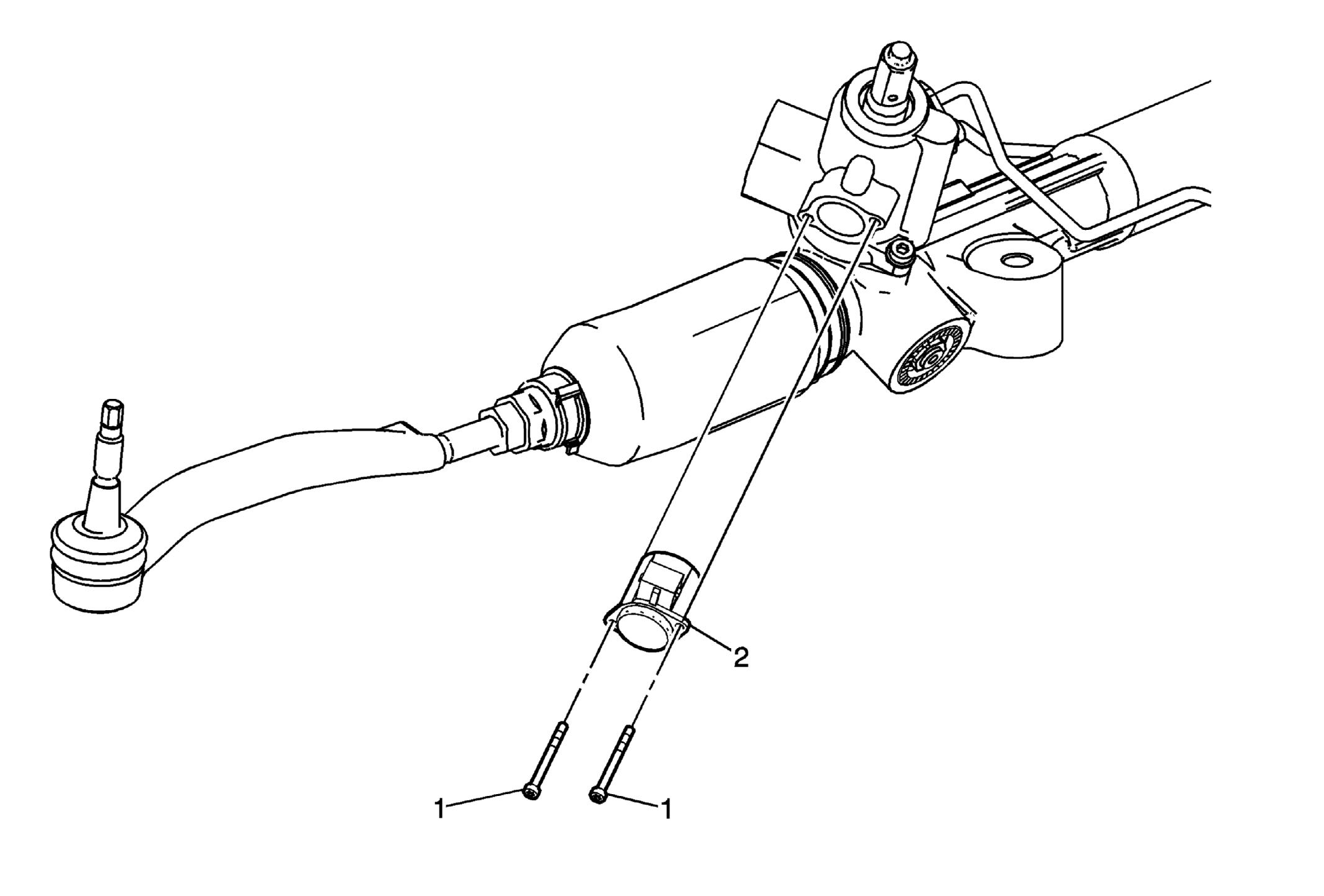

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Hoist the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Power Steering Gear Solenoid Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (27 lb in) |
| 2 | Power Steering Gear Solenoid Procedure: Disconnect any electrical connectors as needed. |
