Floor Front Air Outlet Duct Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

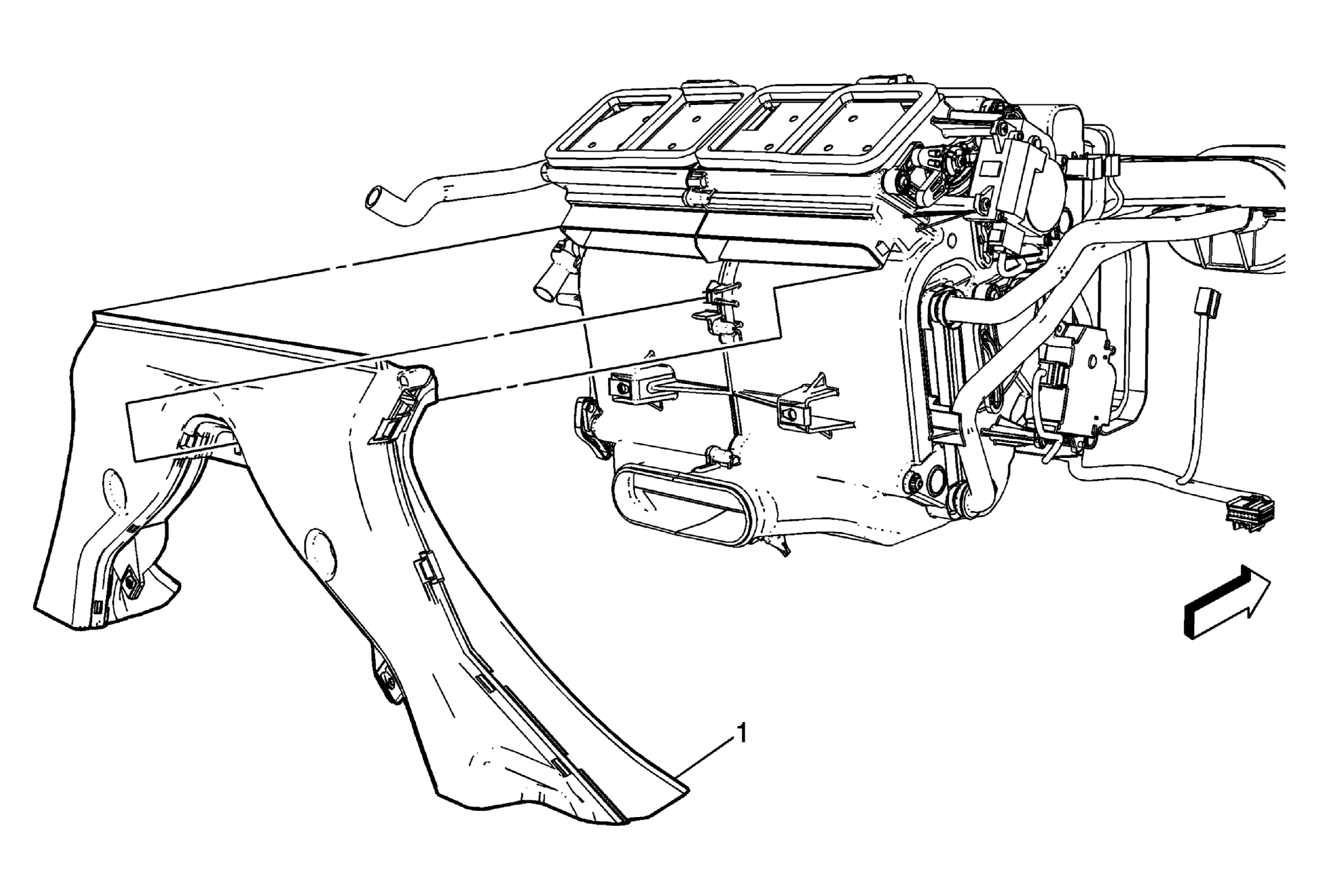

Fig 1: Floor Front Air Outlet Duct Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the I/P carrier. Refer to Instrument Panel Carrier Replacement . Disconnect any electrical connectors from the Instrument Panel.
1	Front Floor Air Outlet. Procedure Squeeze the retaining tabs to release the air outlet from the HVAC module. Note the routing of any wiring harnesses for proper installation.

Callout

Component Name

Preliminary Procedure

Remove the I/P carrier. Refer to Instrument Panel Carrier Replacement .
Disconnect any electrical connectors from the Instrument Panel.

Front Floor Air Outlet.

Procedure

Squeeze the retaining tabs to release the air outlet from the HVAC module.
Note the routing of any wiring harnesses for proper installation.
