Rear Brake Hose Replacement (Frame to Axle - JF3 w/o JL4, JF7)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

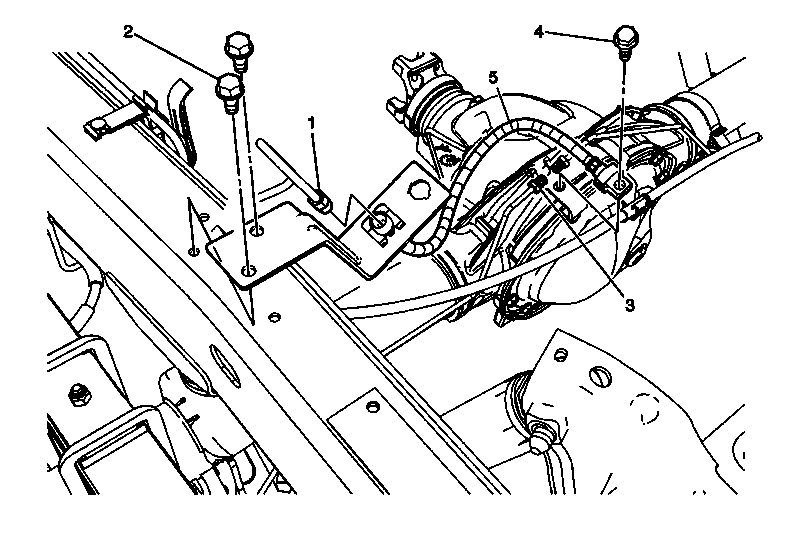

Fig 1: Rear Brake Hose Replacement (Frame to Axle - JF3 w/o JL4, JF7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Brake Pipe Fitting NOTE: Refer to Fastener Notice . Procedure Remove any dirt or debris from the brake pipe fitting. Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft)
2	Hose Bracket to Frame Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Brake Pipe Fitting (Qty: 2) Procedure Remove any dirt or debris from the brake pipe fittings. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft)
4	Hose to Rear Axle Bolt Tighten: 9 N.m (80 lb in)
5	Rear Brake Hose Procedure: Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Manual) .
