SIR Component Views

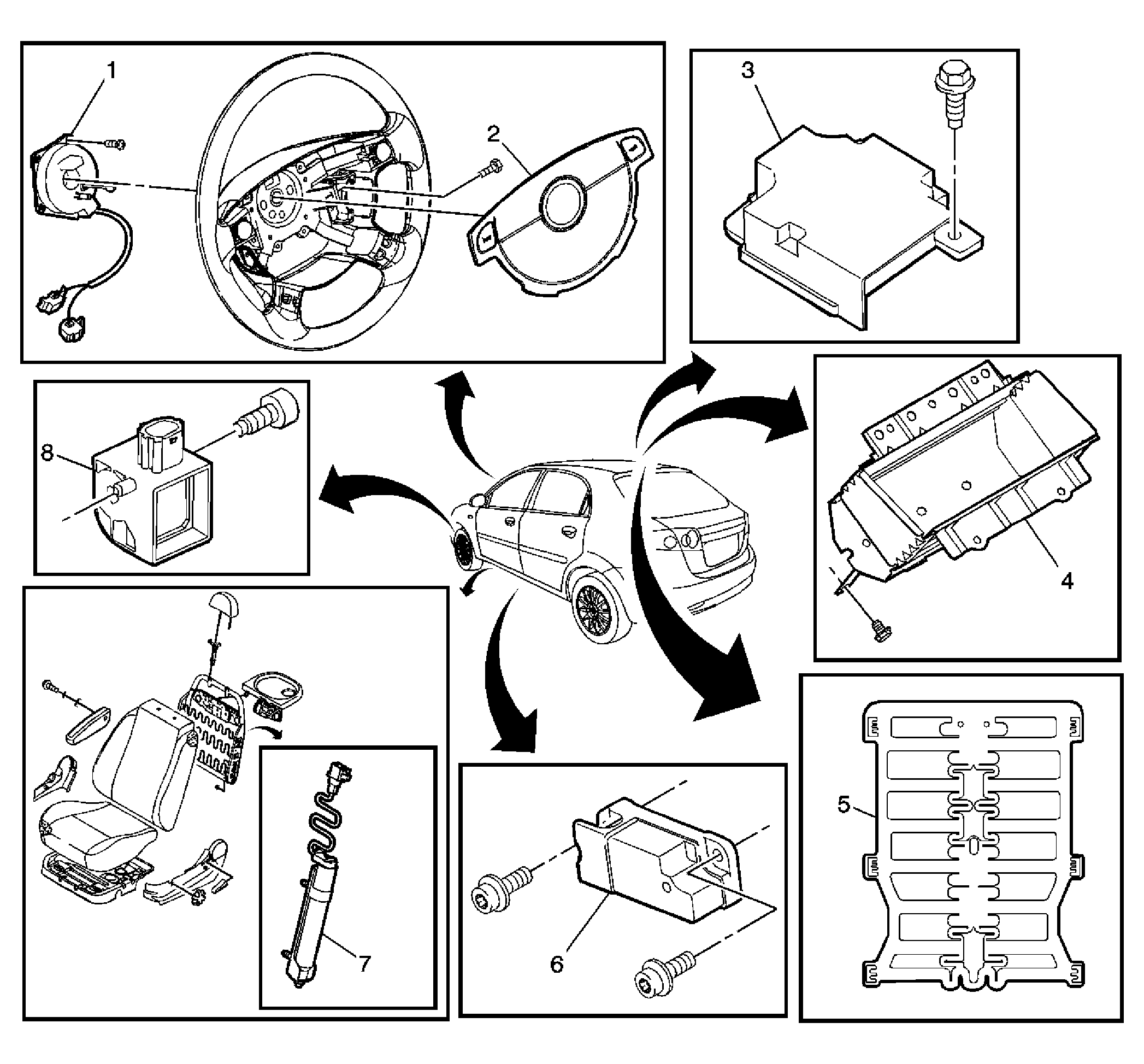

Fig 1: Identifying SIR Components (North America)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Inflatable Restraint I/P Module
5	Occupant Classification (OC) Sensor
6	Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger
7	Side Airbag Module
8	Inflatable Restraint Front End Discriminating Sensor - Right or Left

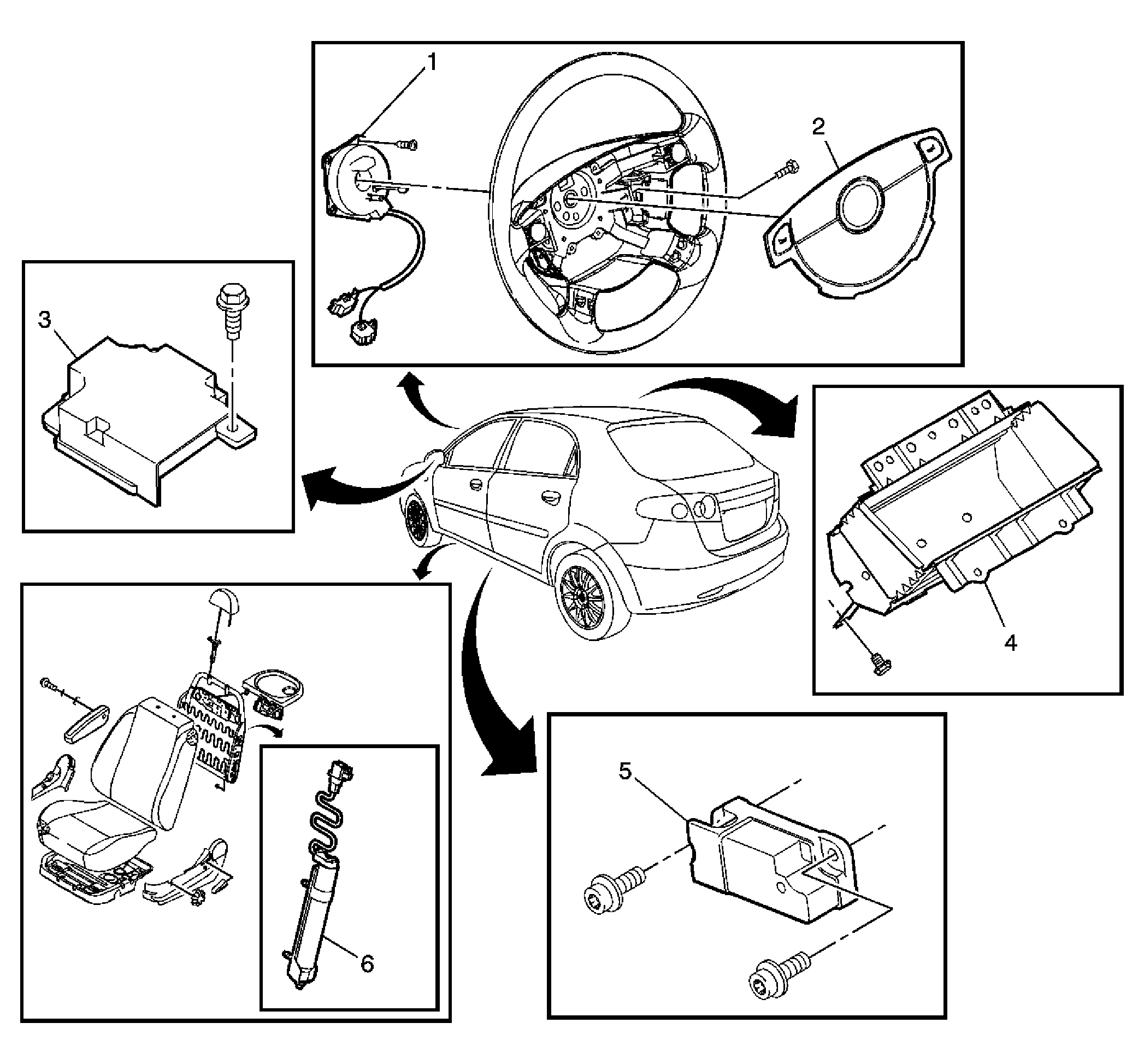

Fig 2: Identifying SIR Components (Except North America)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Inflatable Restraint I/P Module
5	Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger
6	Side Airbag Module

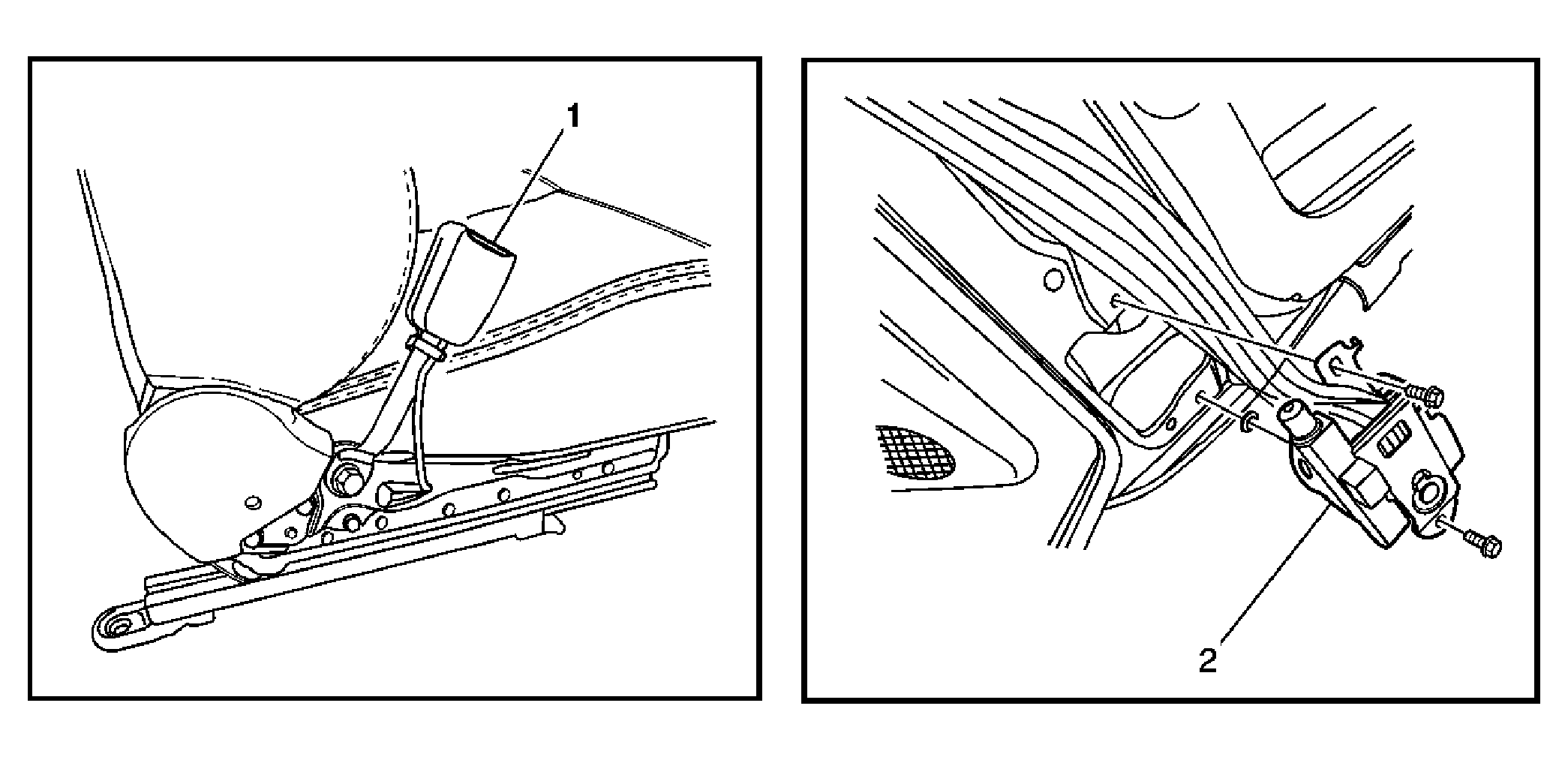

Fig 3: View Of Seat Belt Switch And Seat Belt Pretensioner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Seat Belt Pretensioner - Driver and Passenger
