Instrument Cluster Schematics

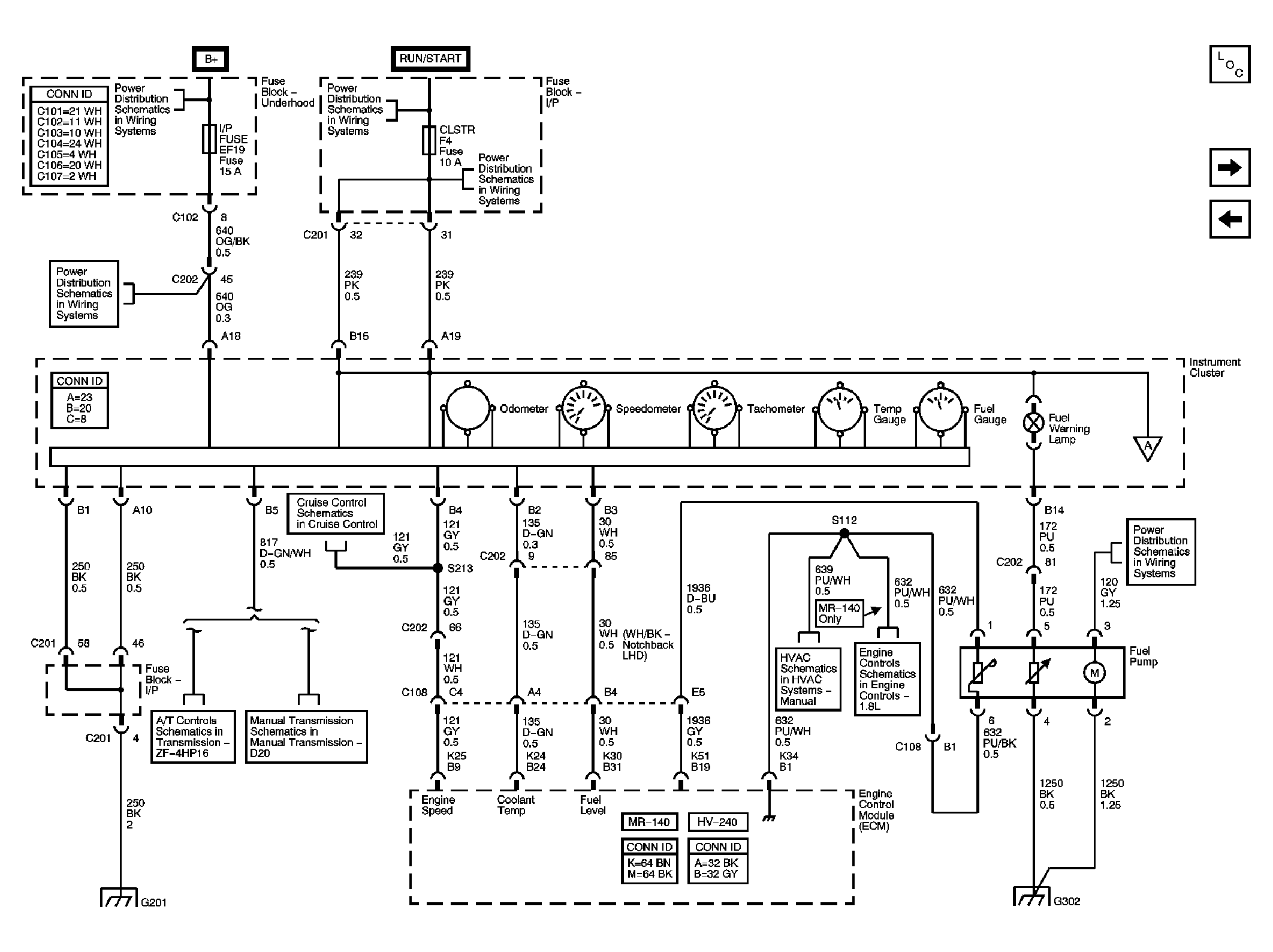

Fig 1: Power, Ground And Gauges Schematic - 1.4L/1.6L

Courtesy of GENERAL MOTORS CORP.

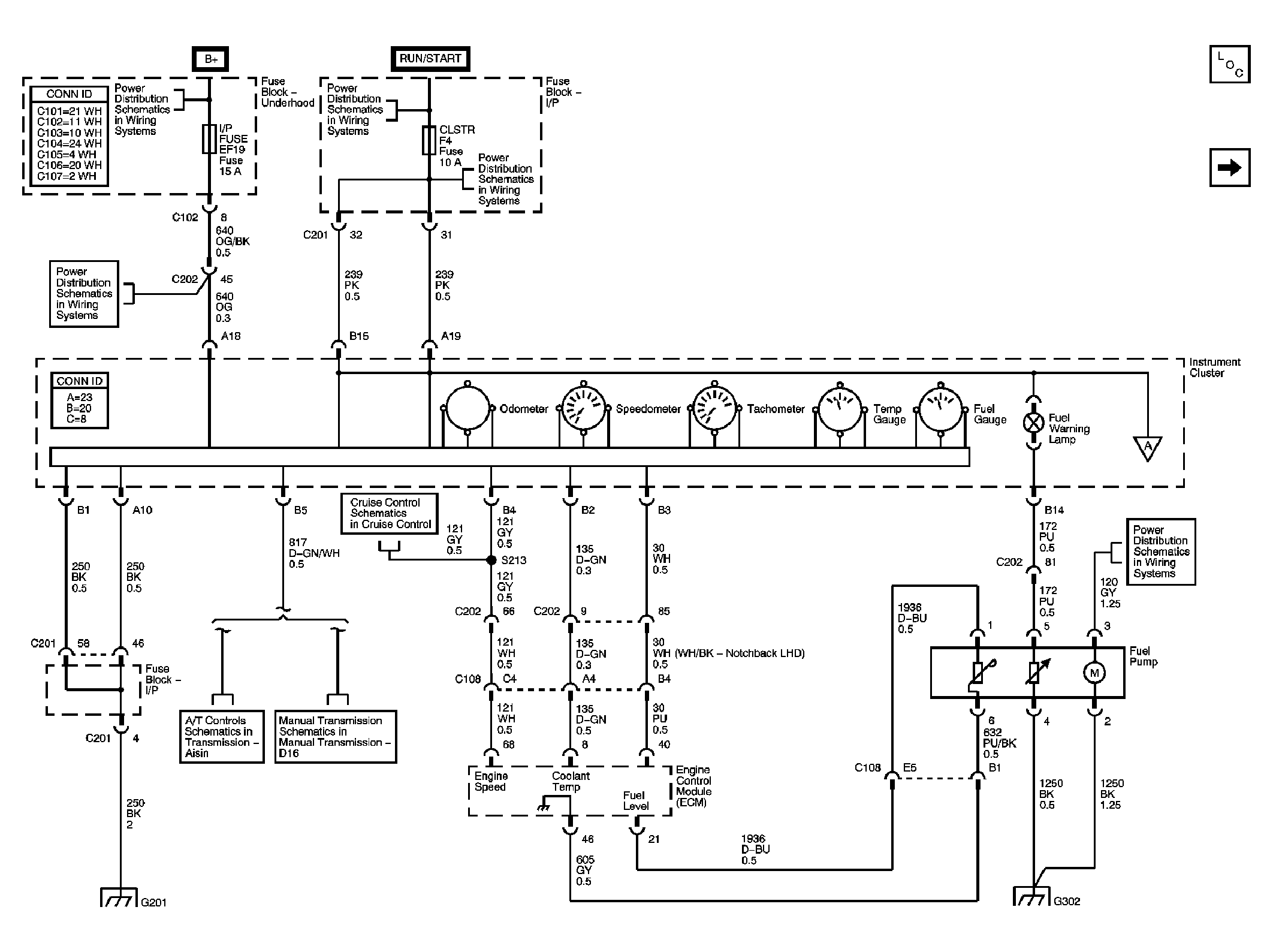

Fig 2: Power, Ground and Gauges Schematic - 1.8L/2.0L

Courtesy of GENERAL MOTORS CORP.

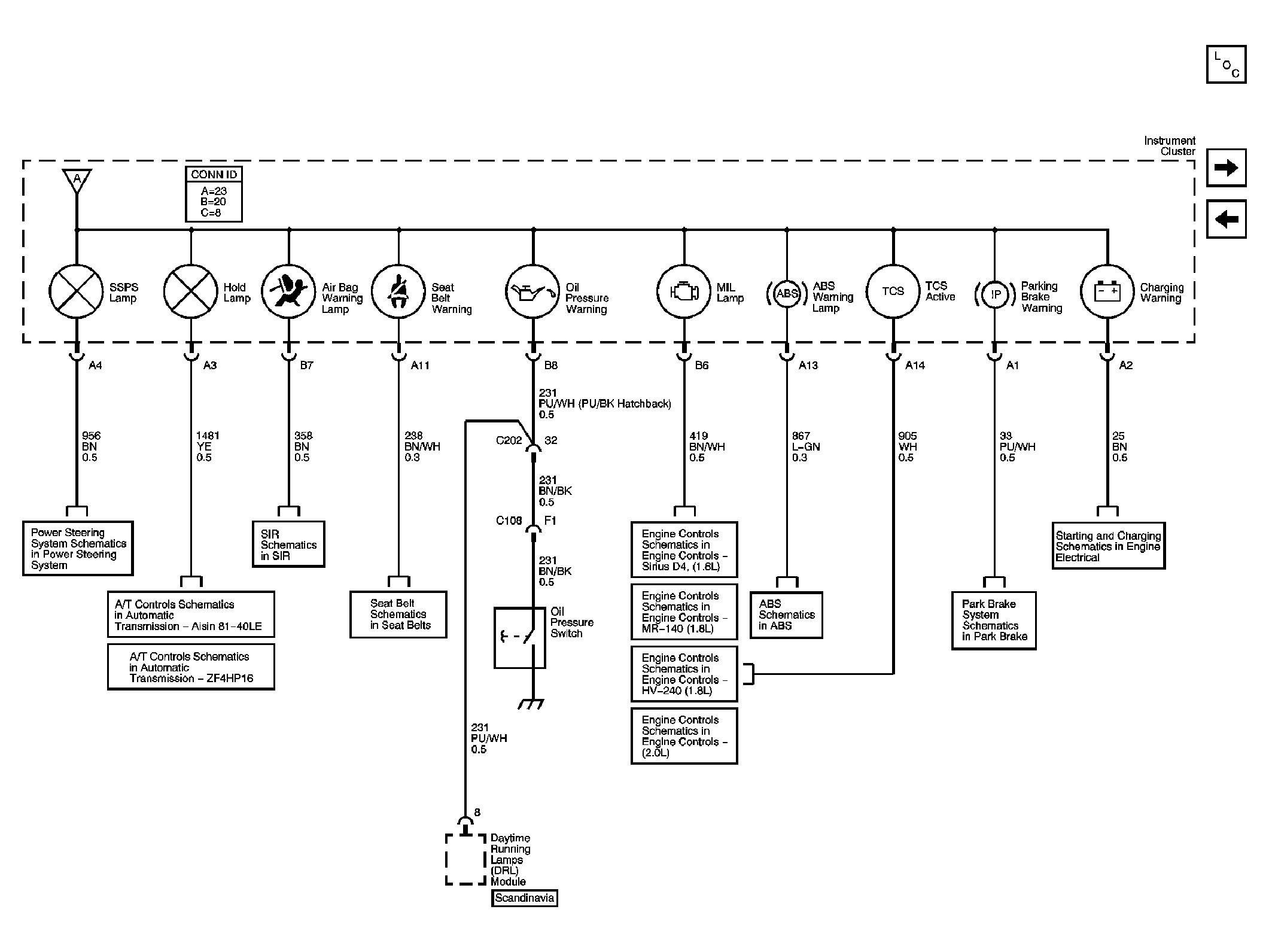

Fig 3: Power Steering, Shift Program, Air Bag, Seat Belt, Oil Pressure, MIL, ABS, TCS, Parking Brake, and Charging Warning Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

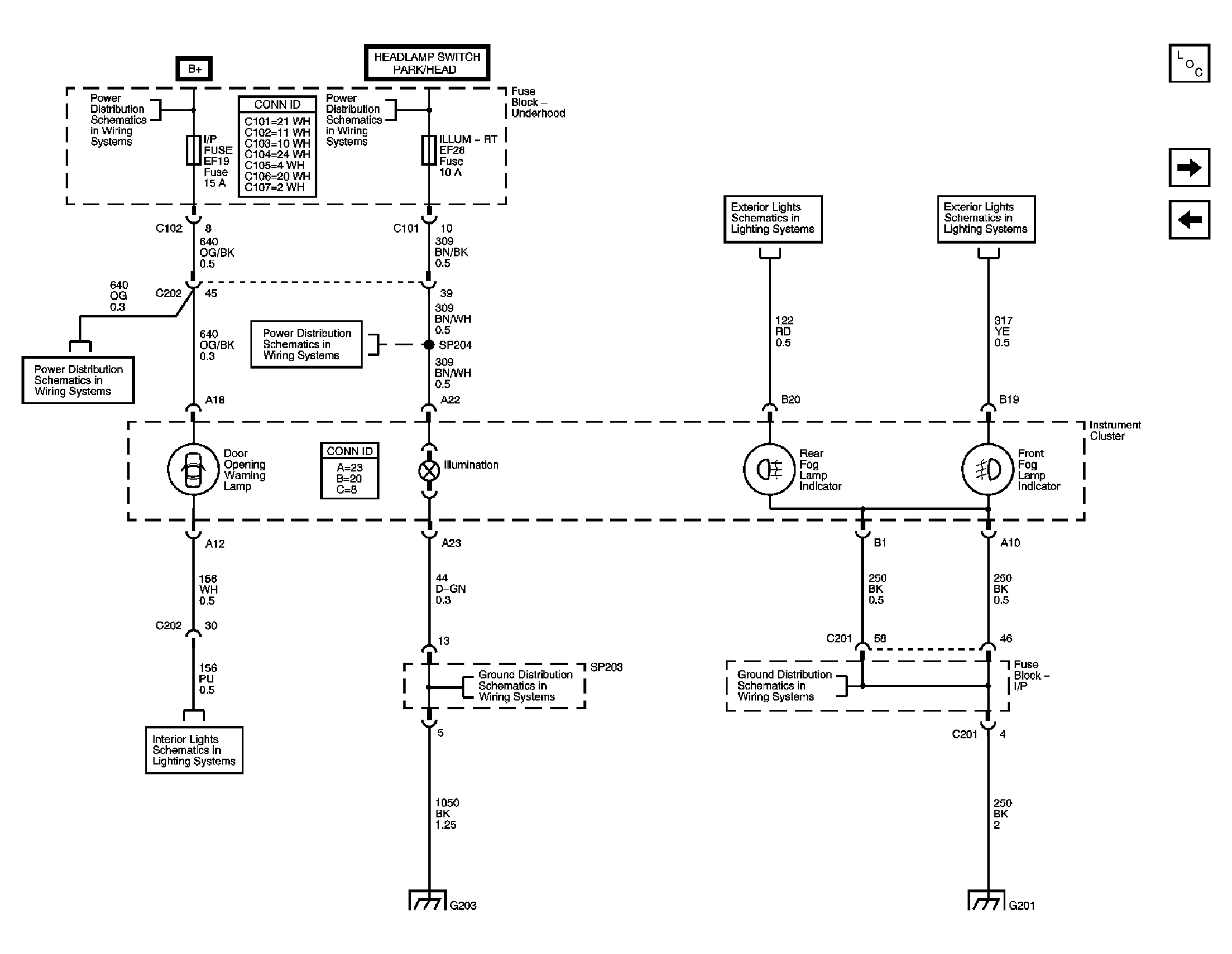

Fig 4: I/P Illumination, Door Open and Fog Lamp Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

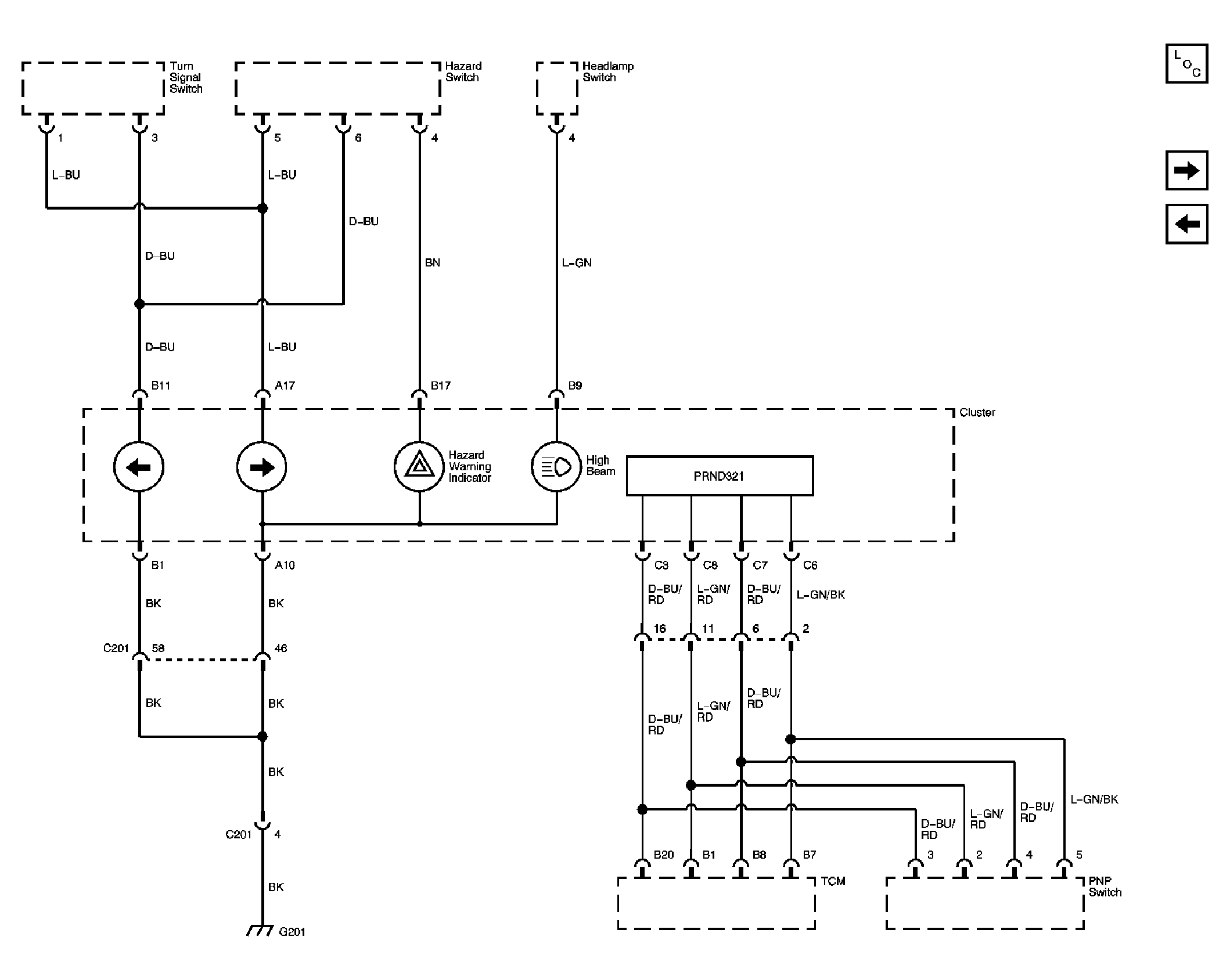

Fig 5: Cluster - PRNDL, Turn Signal, Hazard, and High Beam Indicators Schematic - 1.8L and 2.0L

Courtesy of GENERAL MOTORS CORP.

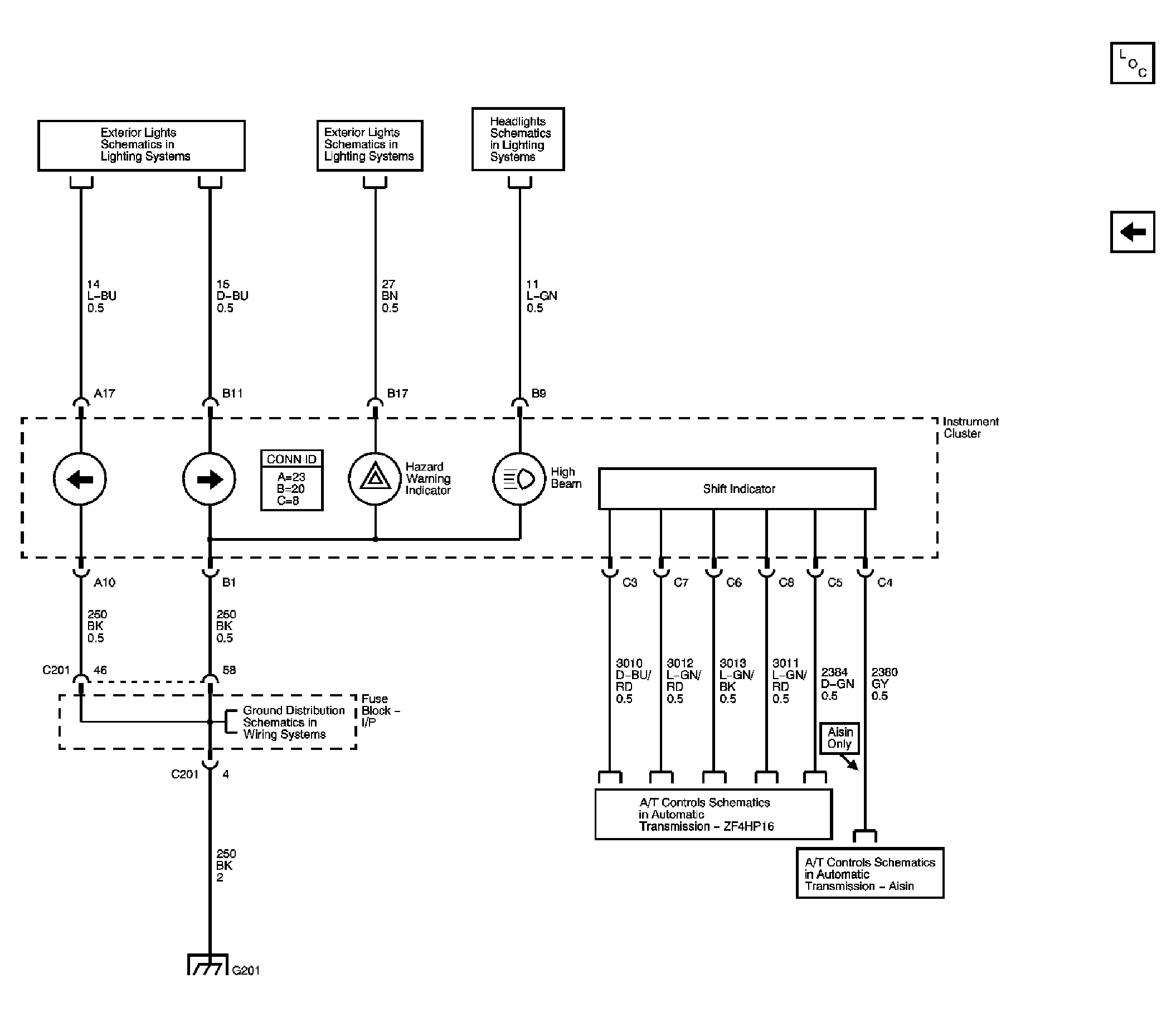

Fig 6: Turn Signal, Hazard, and High Beam Indicators Schematic - PRNDL Illumination

Courtesy of GENERAL MOTORS CORP.
