Automatic Transmission Controls Schematics

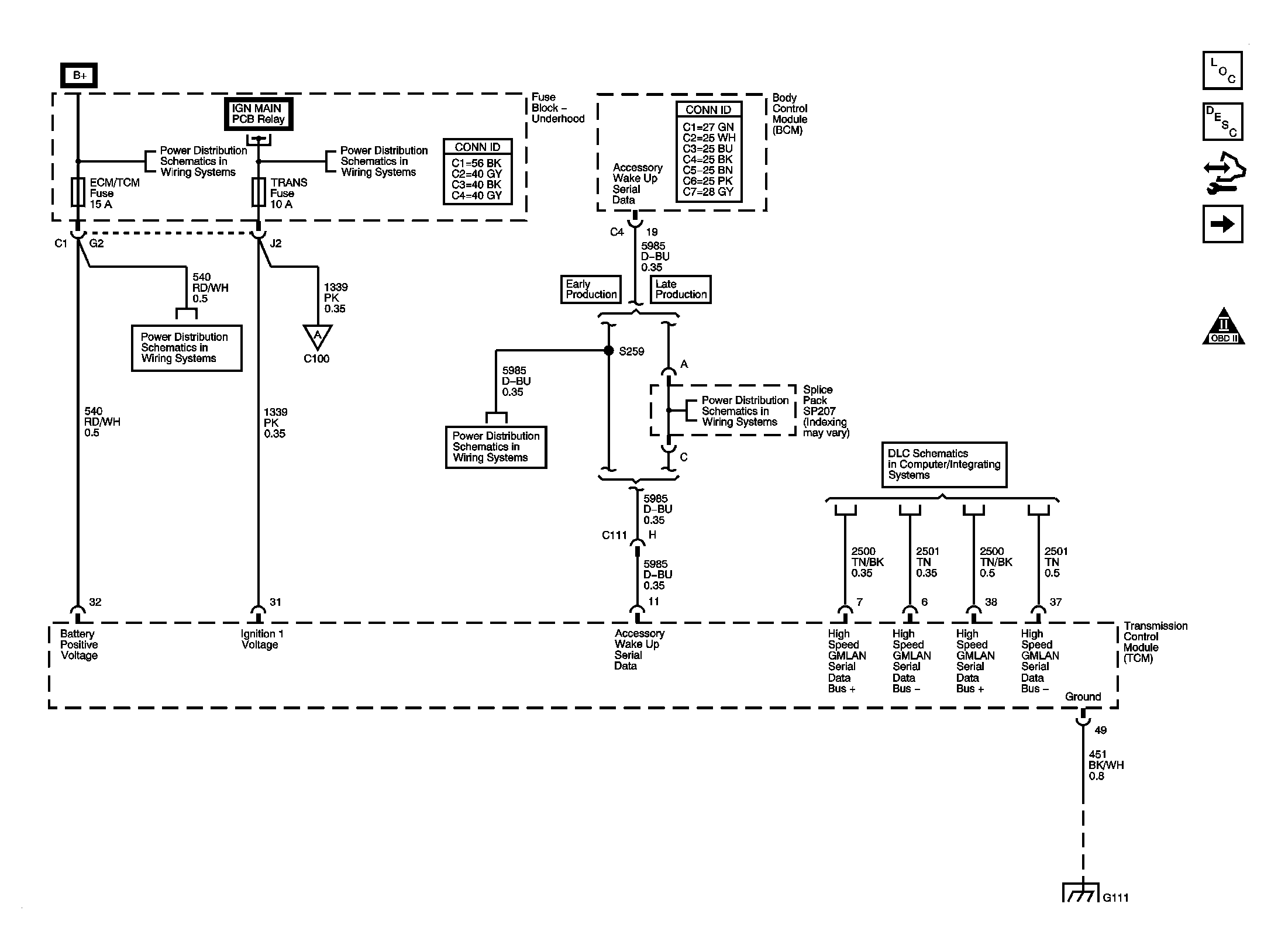

Fig 1: Power, Ground, And Serial Data - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

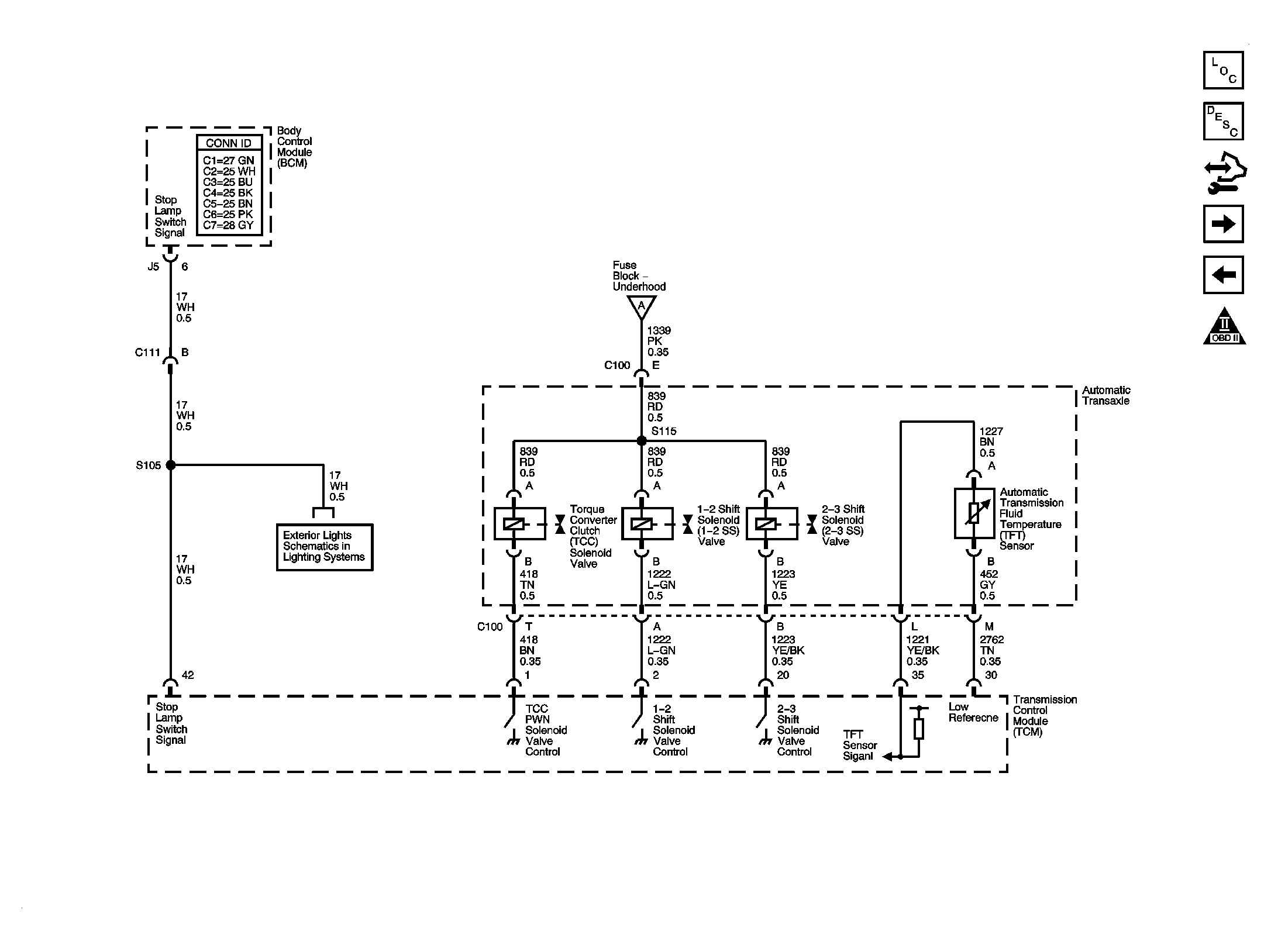

Fig 2: Stop Lamp Switch Signal, TFT Sensor, TCC, And Shift Solenoids - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

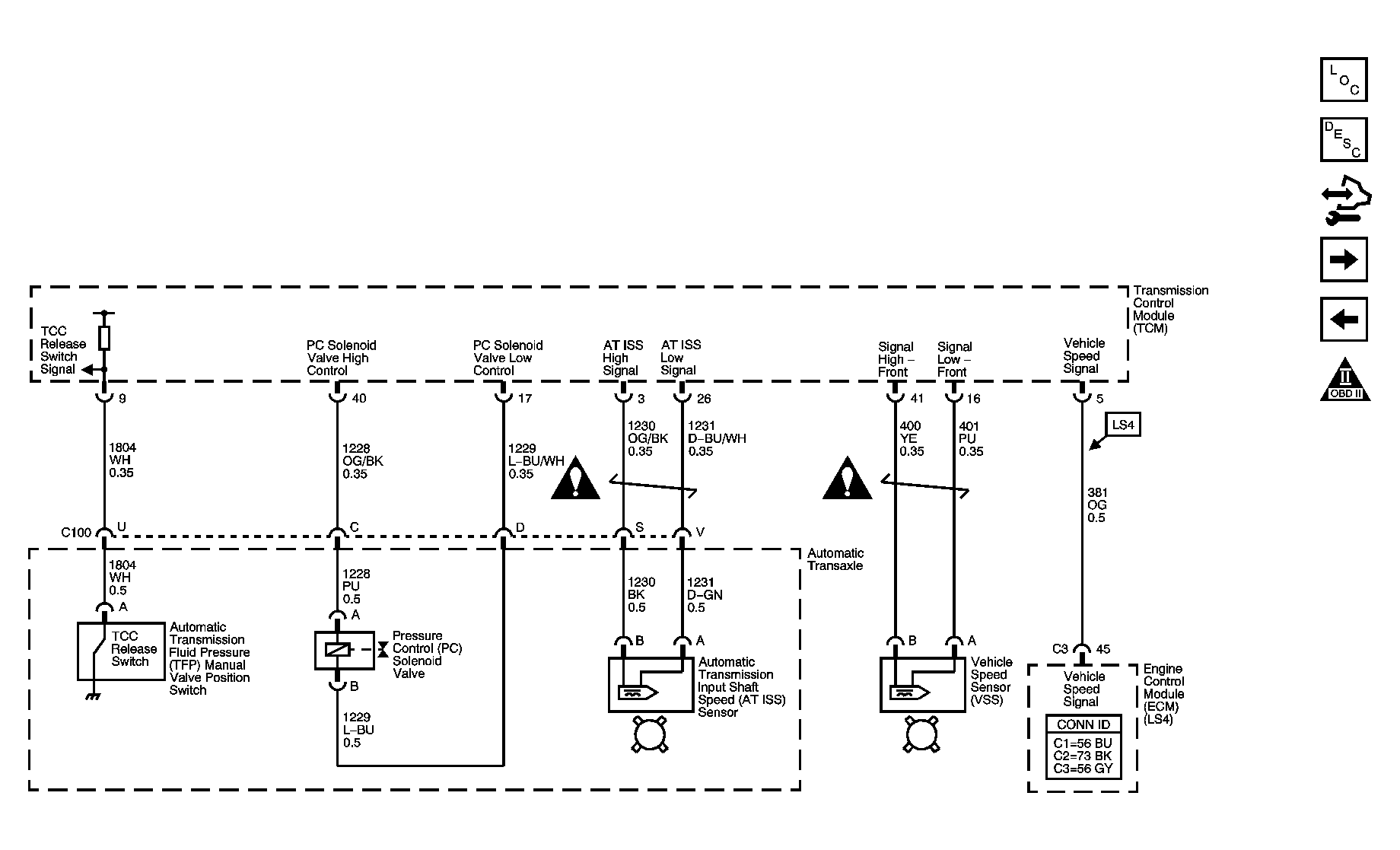

Fig 3: VSS, AT ISS Sensors, Pressure Control Solenoid Valve, And TCC Release Switch - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

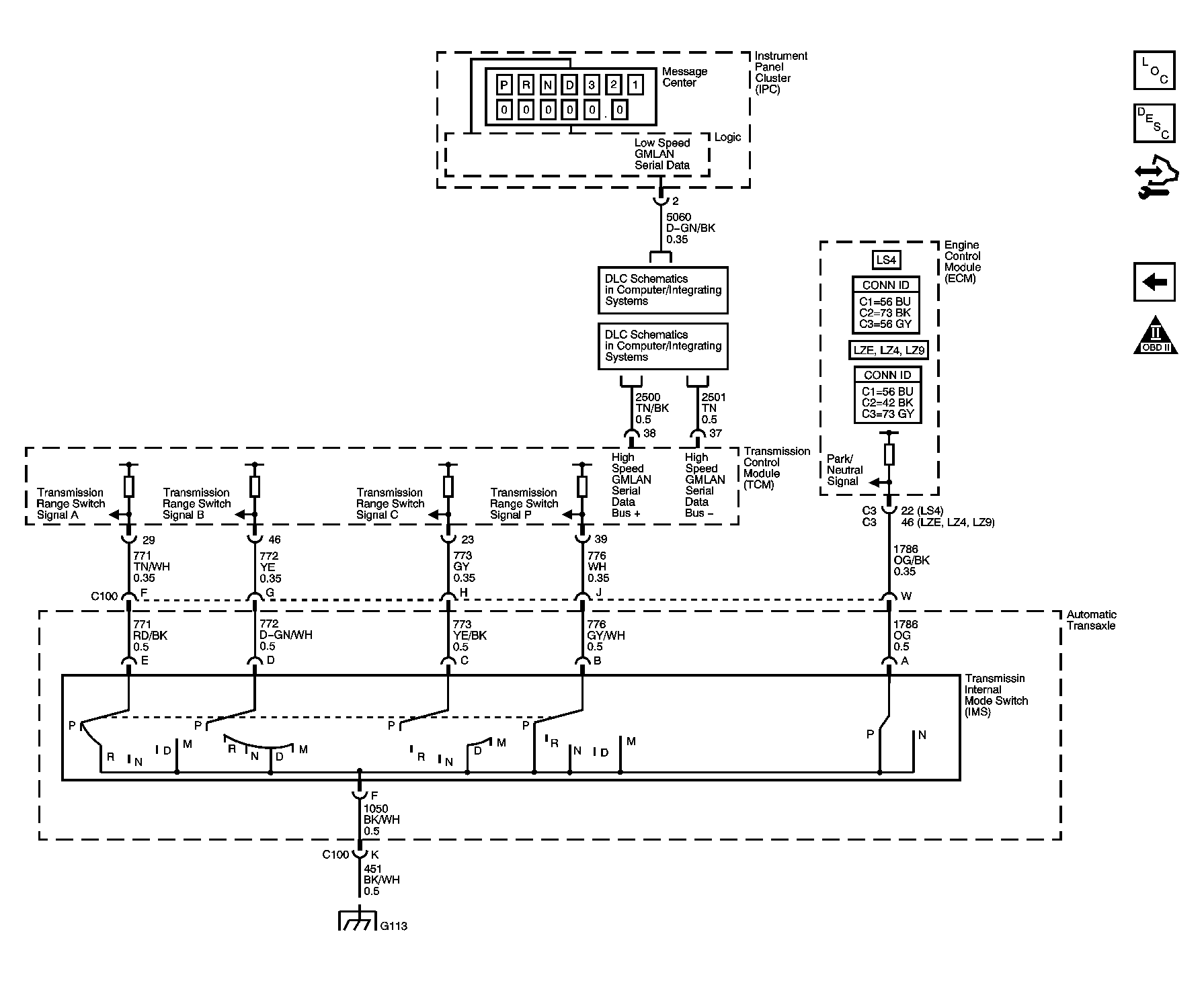

Fig 4: PRNDL, And IMS Switch - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
