SIR Schematics

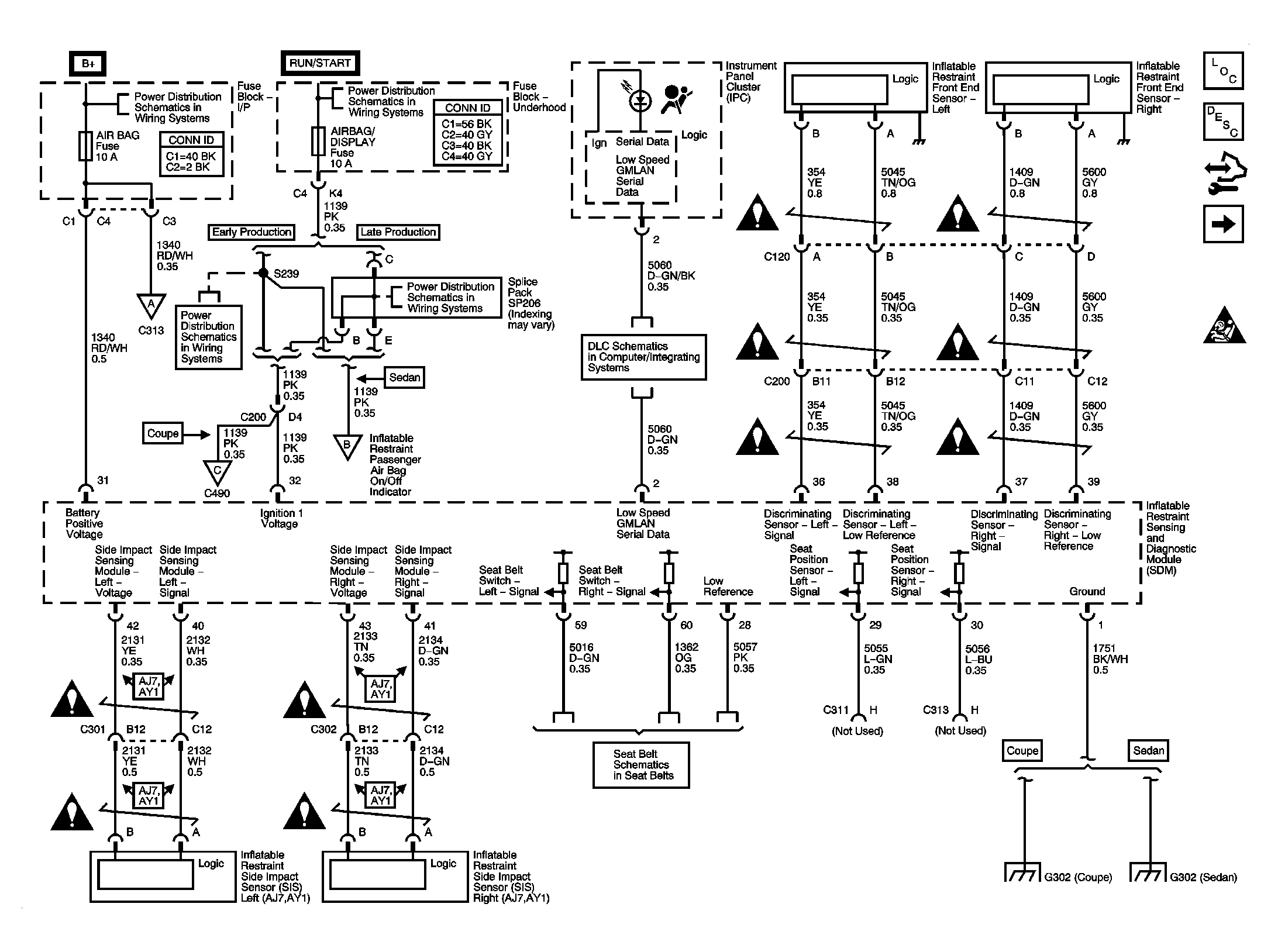

Fig 1: Power, Ground, DLC, Indicators, Sensors, And References - Wiring Diagram
GM1648866Courtesy of GENERAL MOTORS CORP.

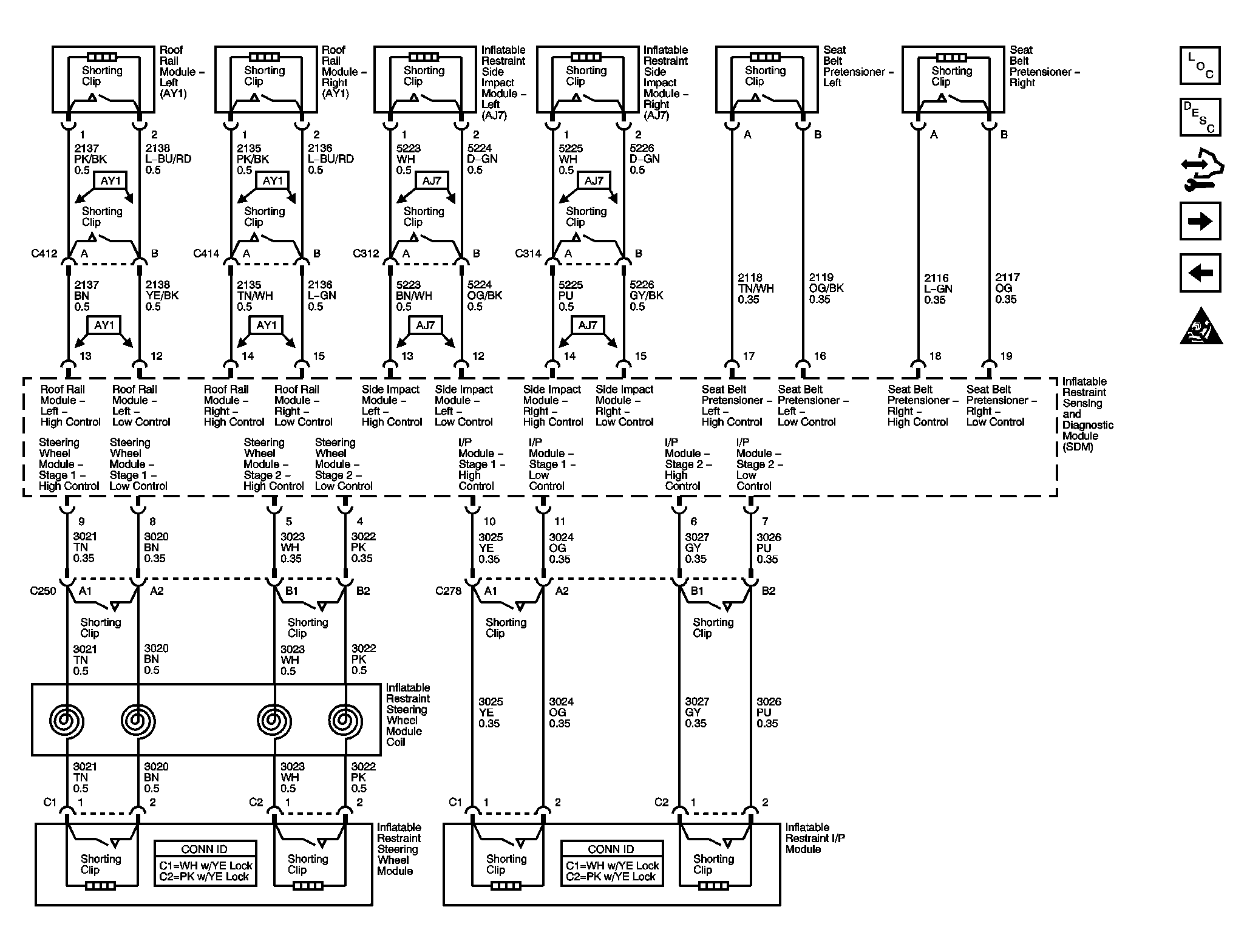

Fig 2: Deployment Loops - Wiring Diagram
GM1648885Courtesy of GENERAL MOTORS CORP.

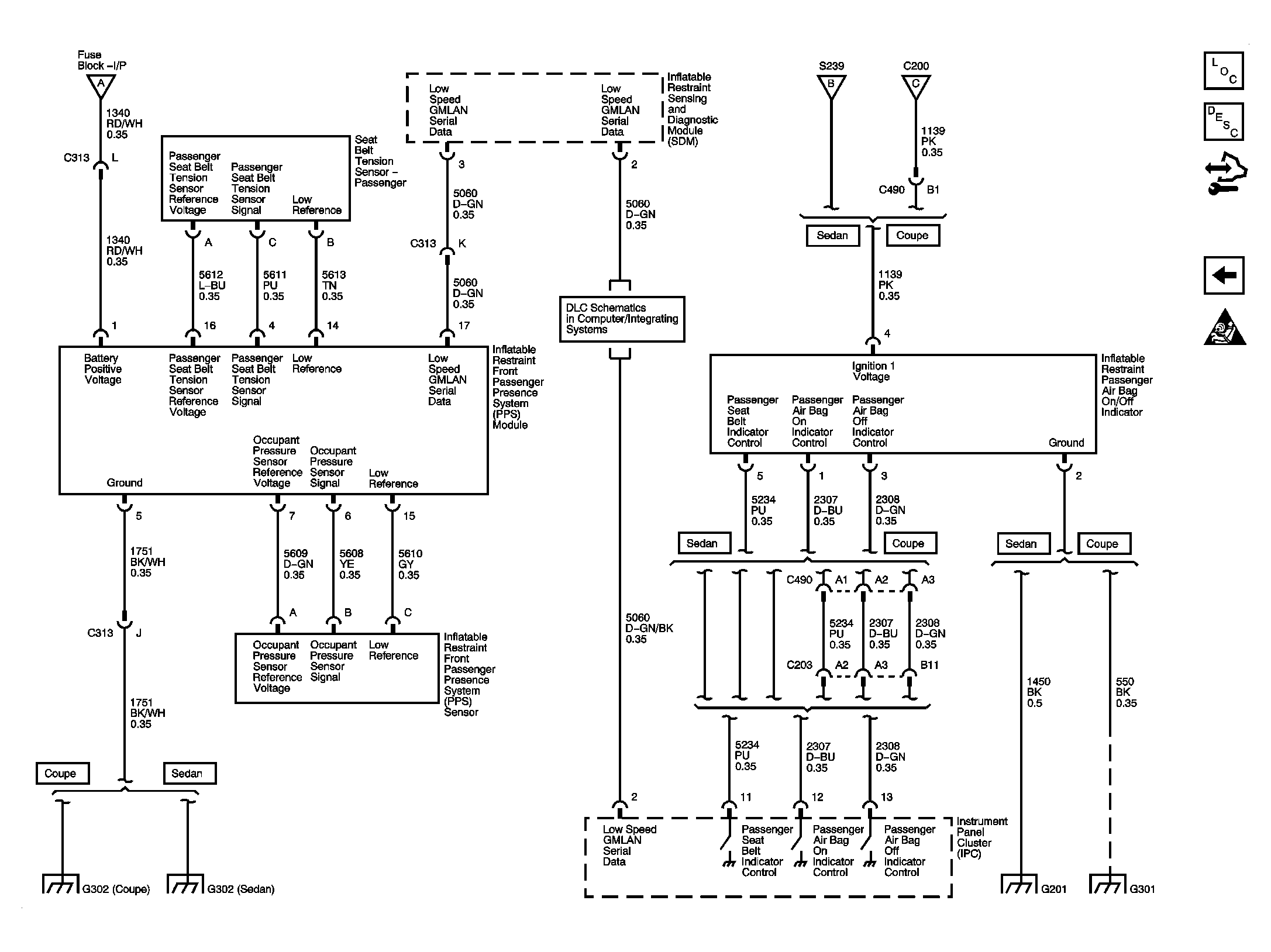

Fig 3: Passenger Presence System - Wiring Diagram
GM1648897Courtesy of GENERAL MOTORS CORP.
