HVAC Schematics

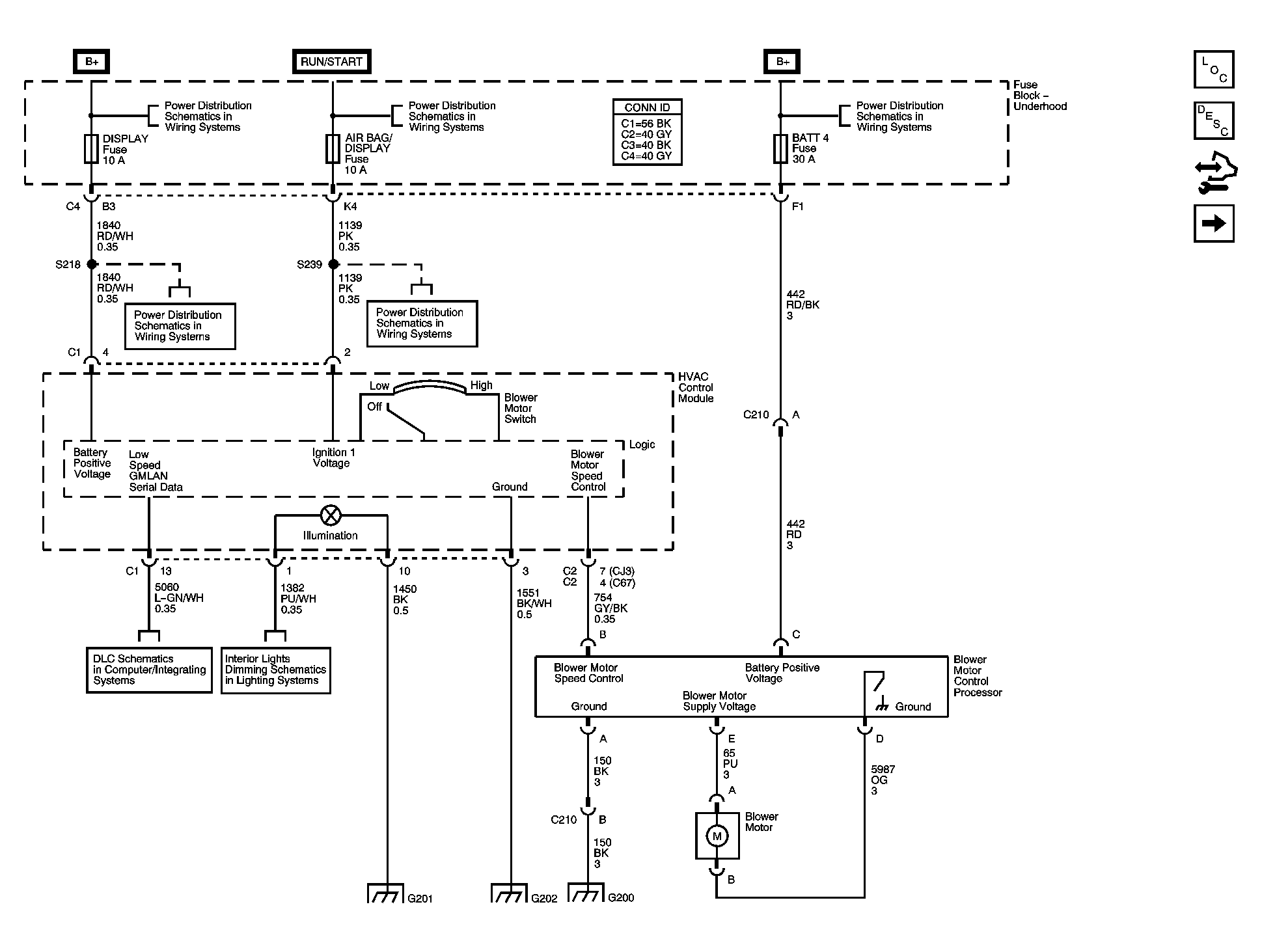

Fig 1: Power, Ground, And Blower Motor Control - Wiring Diagram
GM1648765Courtesy of GENERAL MOTORS CORP.

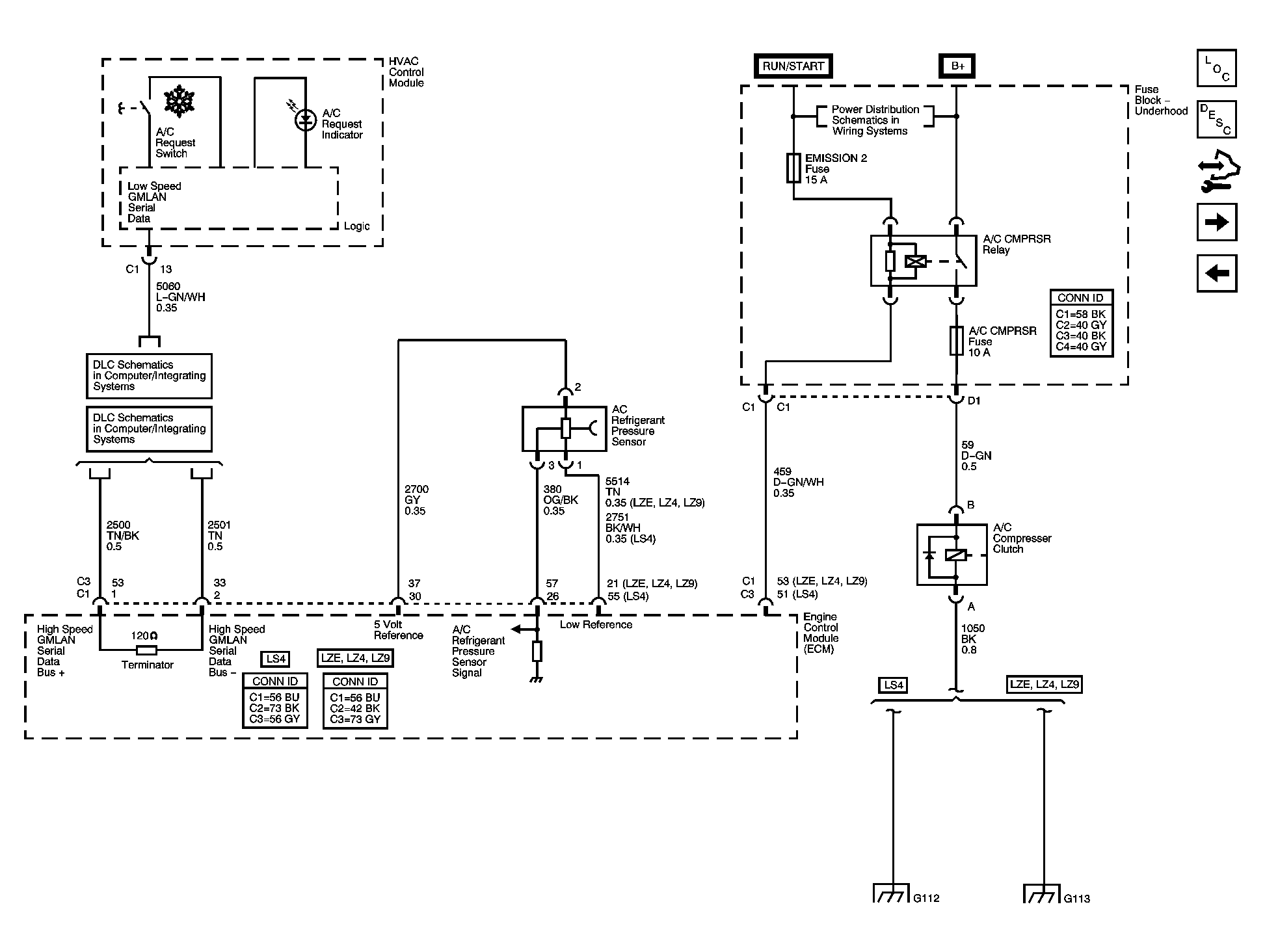

Fig 2: A/C Compressor Controls - Wiring Diagram
GM1648781Courtesy of GENERAL MOTORS CORP.

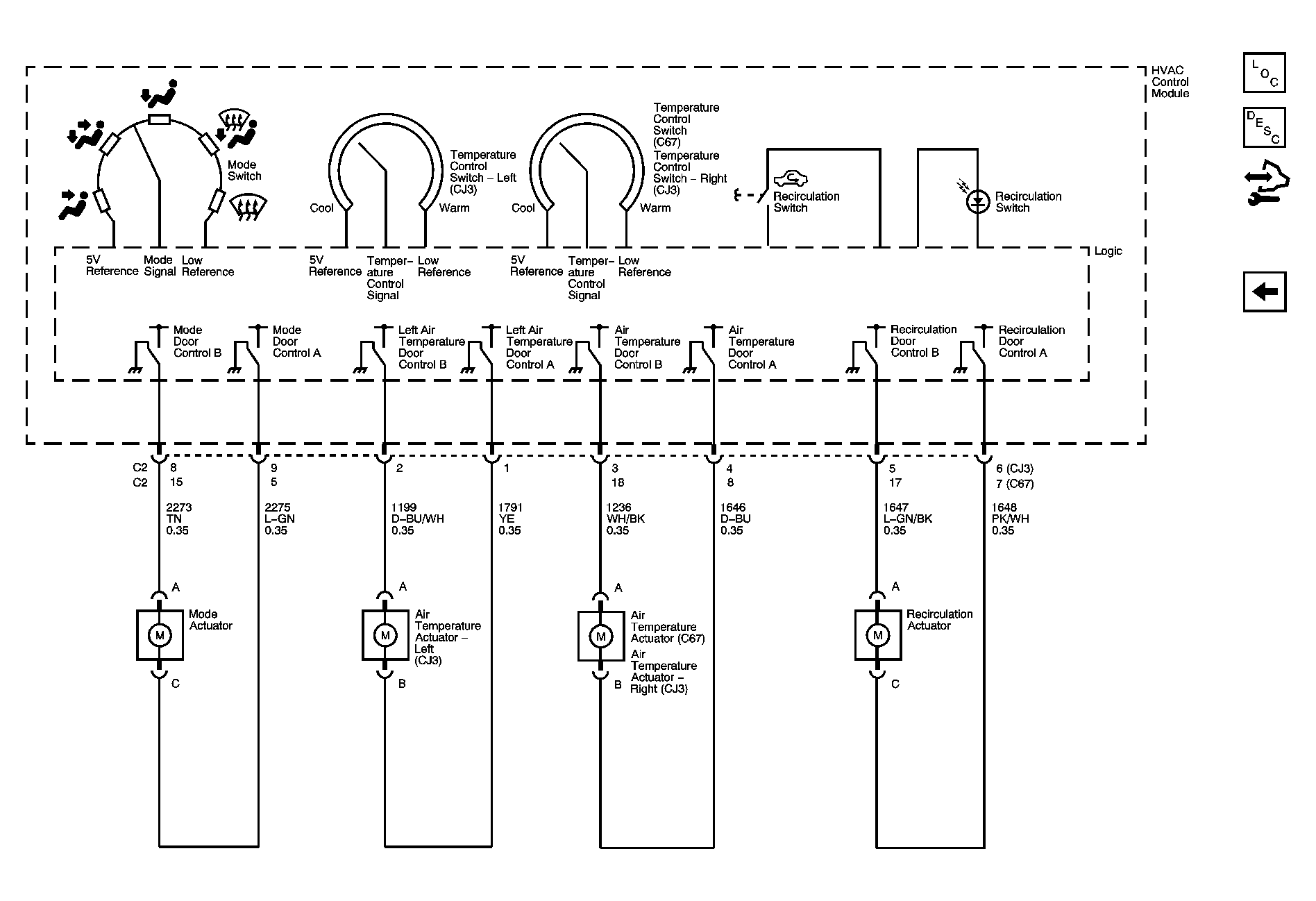

Fig 3: Mode And Air Temperature Controls - Wiring Diagram
GM1648793Courtesy of GENERAL MOTORS CORP.
