Instrument Cluster Schematics

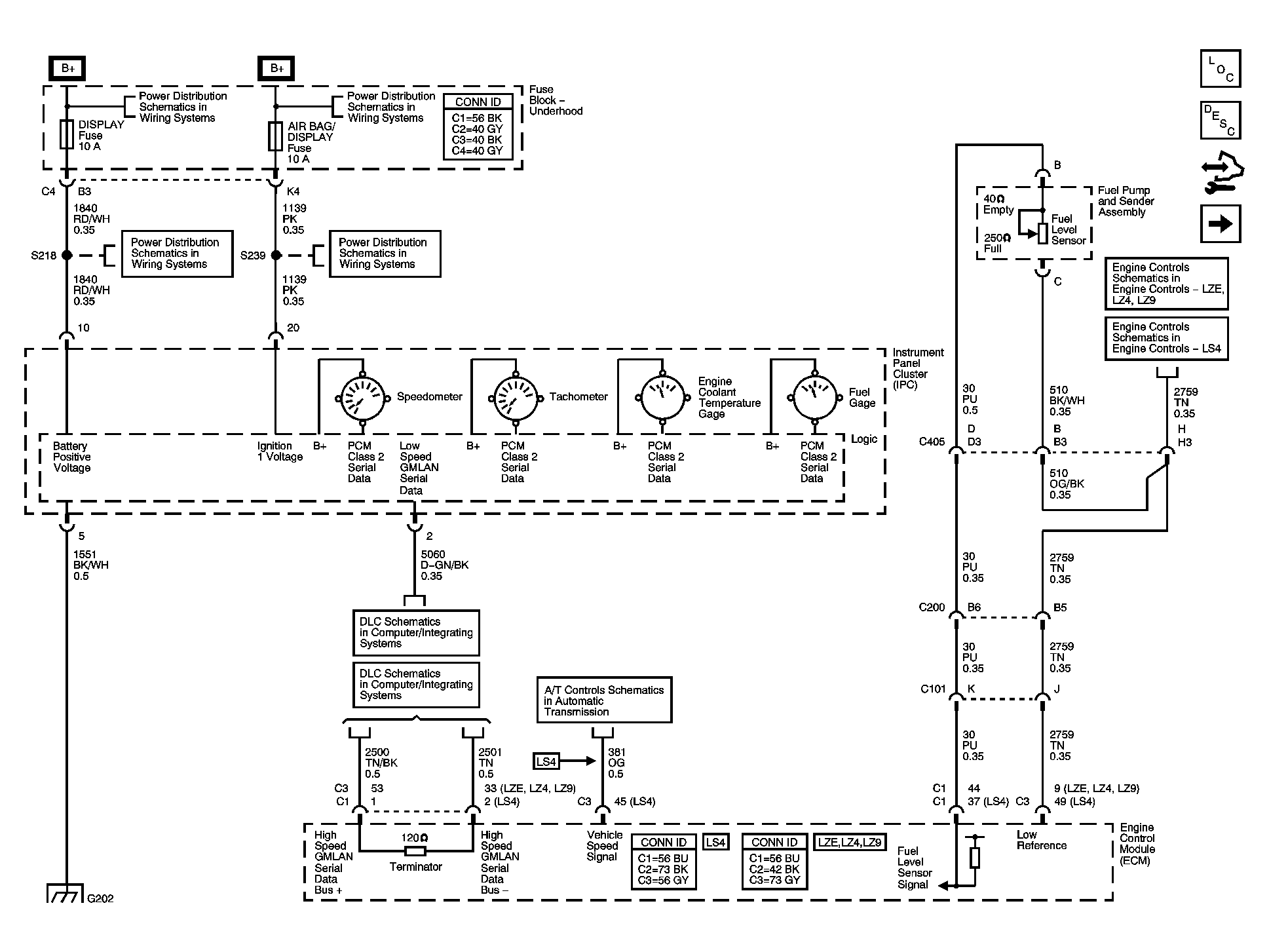

Fig 1: Power, Ground, And Gages - Wiring Diagram
GM1648803Courtesy of GENERAL MOTORS CORP.

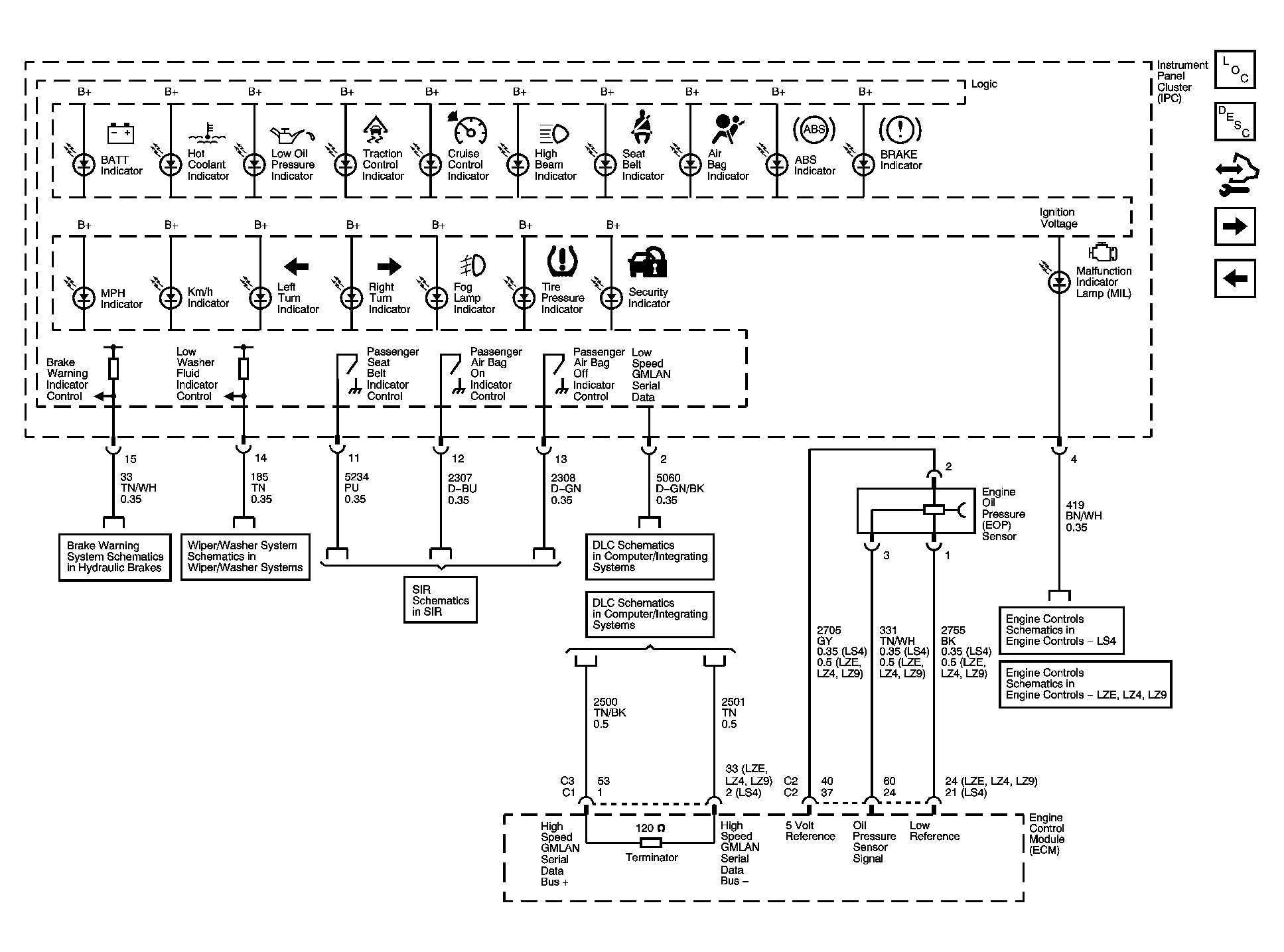

Fig 2: Indicators - Wiring Diagram
GM1648810Courtesy of GENERAL MOTORS CORP.

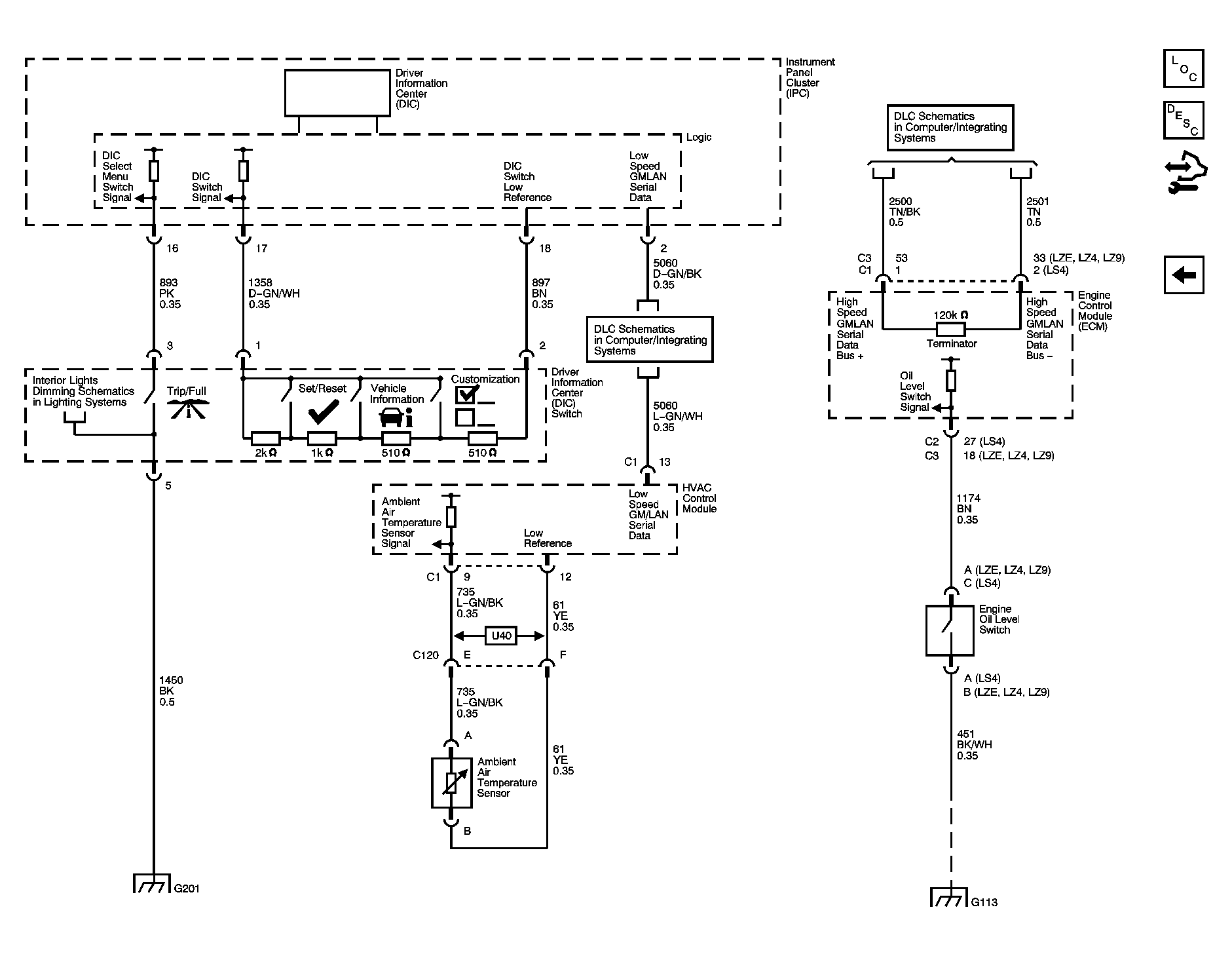

Fig 3: Driver Information Center - Wiring Diagram
GM1648815Courtesy of GENERAL MOTORS CORP.
