Audible Warnings Schematics

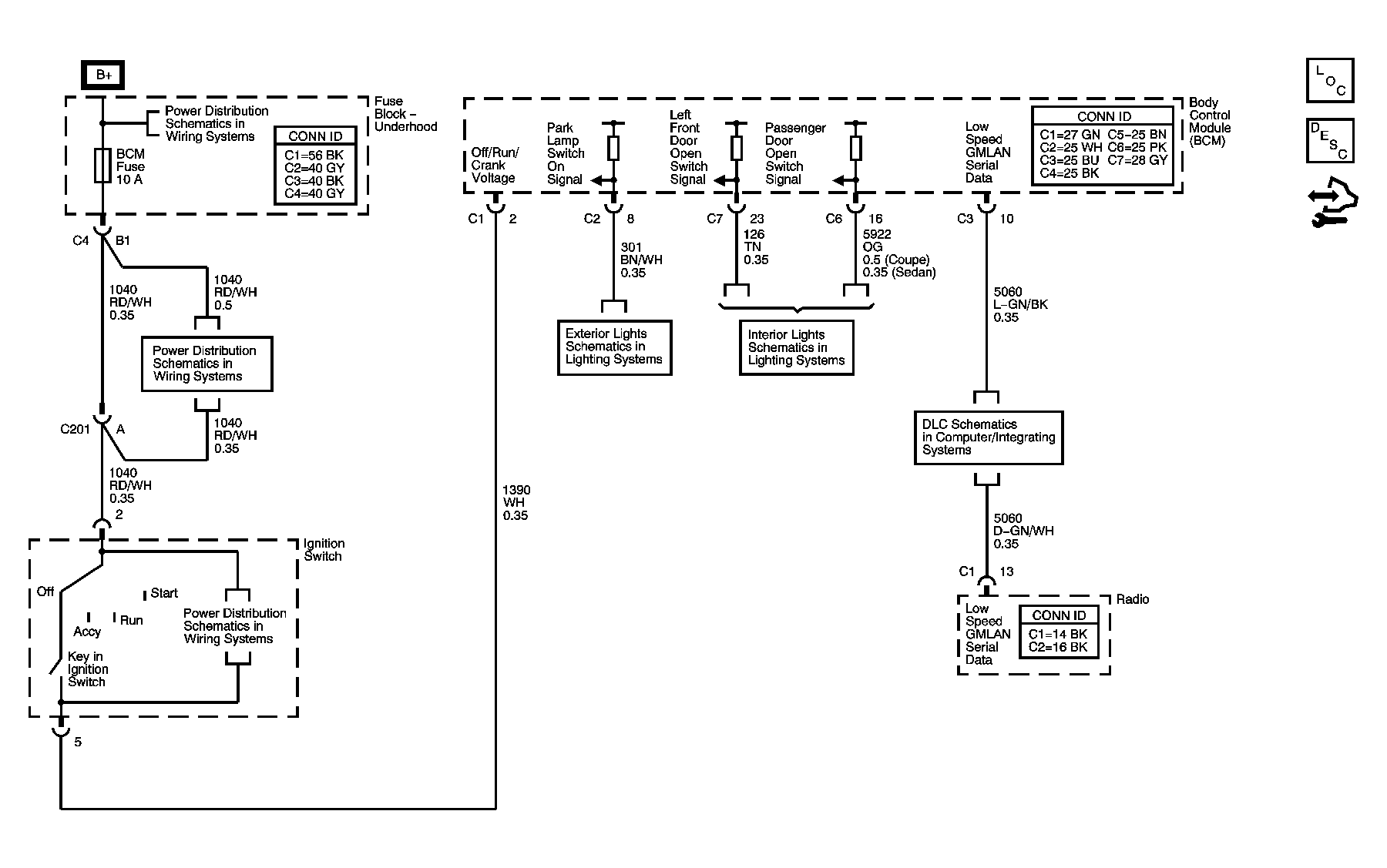

Fig 1: Audible Warnings - Wiring Diagram

GM1648821

Courtesy of GENERAL MOTORS CORP.
