Instrument Panel (I/P) Upper Trim Panel Replacement

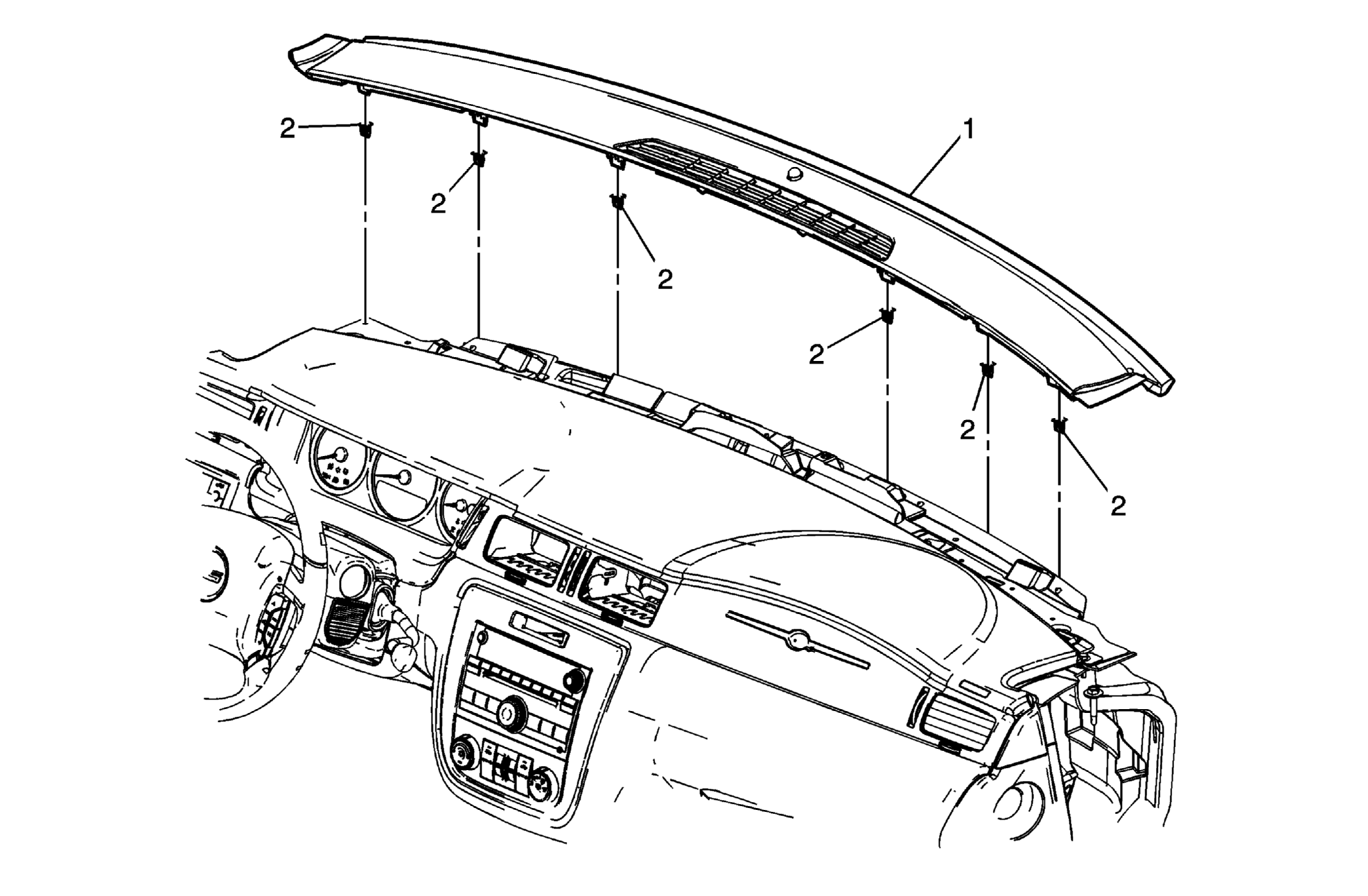

Fig 1: Replacing Instrument Panel (I/P) Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Trim Panel Replacement - Instrument Panel (I/P) Upper

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the Windshield Garnish Moldings. Refer to Garnish Molding Replacement - Windshield Pillar (Impala) or Garnish Molding Replacement - Windshield Pillar (Monte Carlo) .
1	Instrument Panel Upper Trim Panel Assembly Tip: Impala Shown Monte Carlo similar. Disconnect electrical connectors. Remove the Ambient Light Sensor.
2	Retainer Clips Tip: Impala (Qty 6) Monte Carlo (Qty 10)
