Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Power Roof System
>>
Schematic and Routing Diagrams
>>
Power Sunroof Schematics
Power Sunroof Schematics

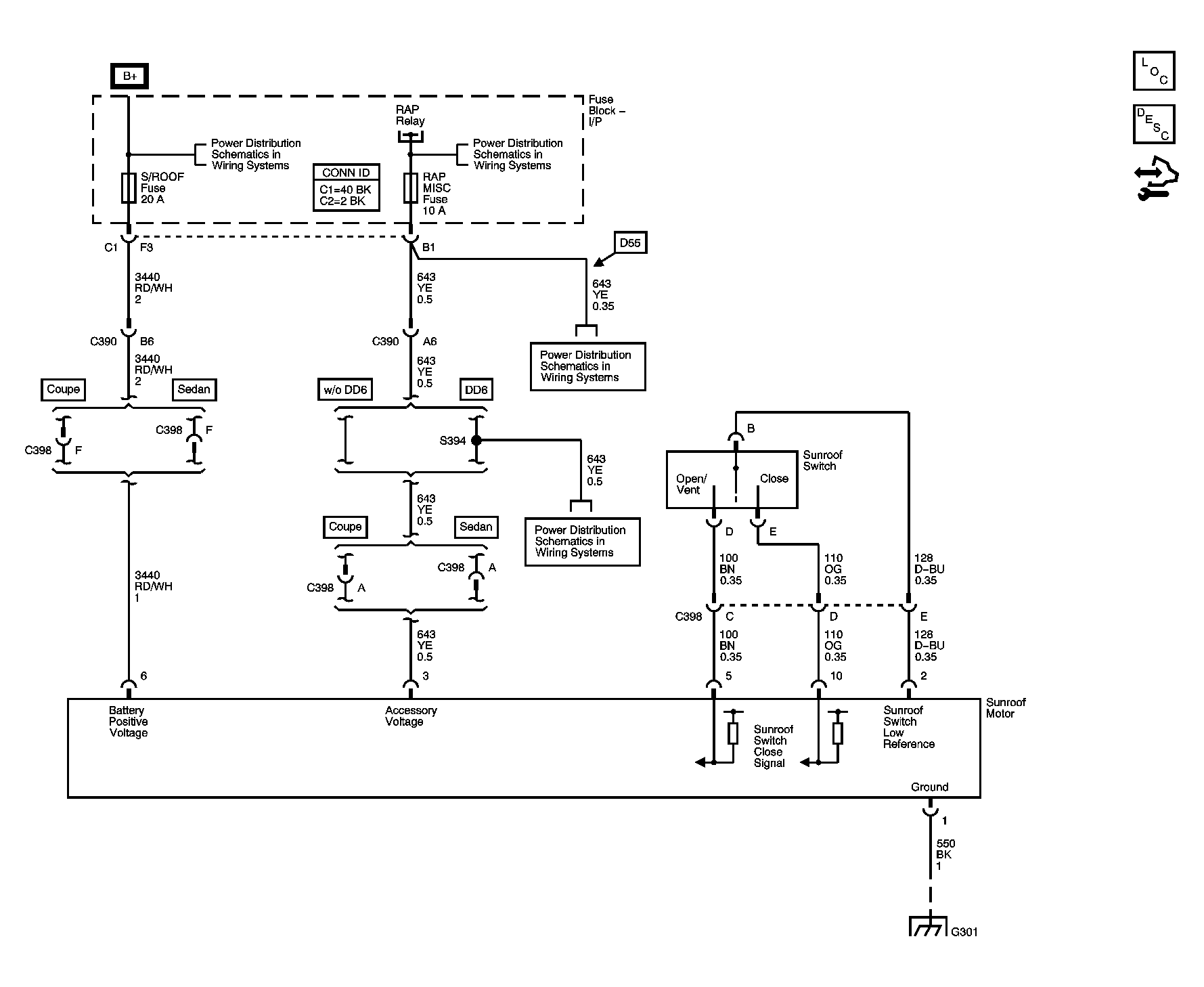

Fig 1: Power Sunroof Schematics - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
