Passenger Seat Schematics

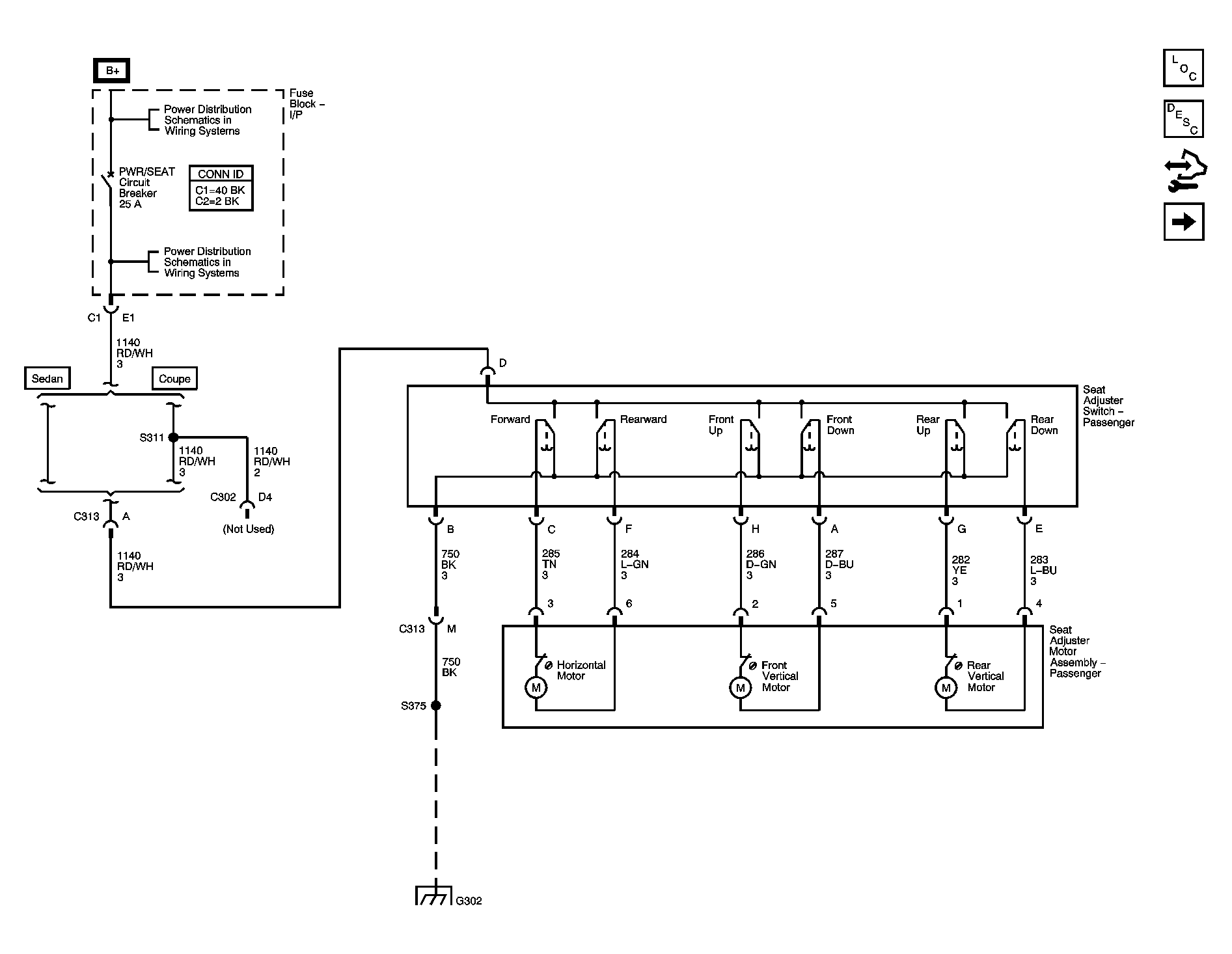

Fig 1: 6-Way Power - Wiring Diagram

GM1657130

Courtesy of GENERAL MOTORS CORP.

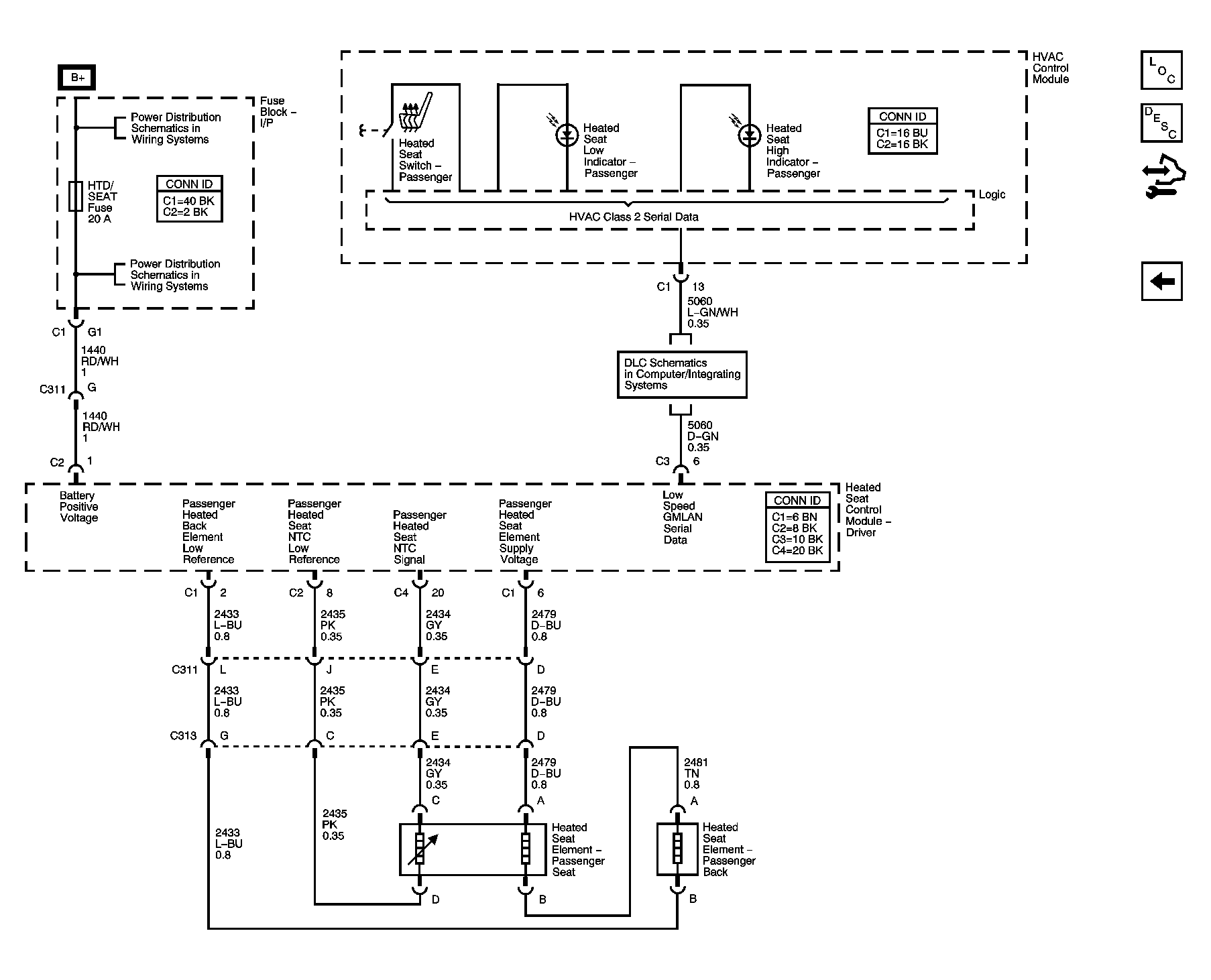

Fig 2: Heat Controls - Wiring Diagram

GM1657131

Courtesy of GENERAL MOTORS CORP.
