Driver Seat Schematics

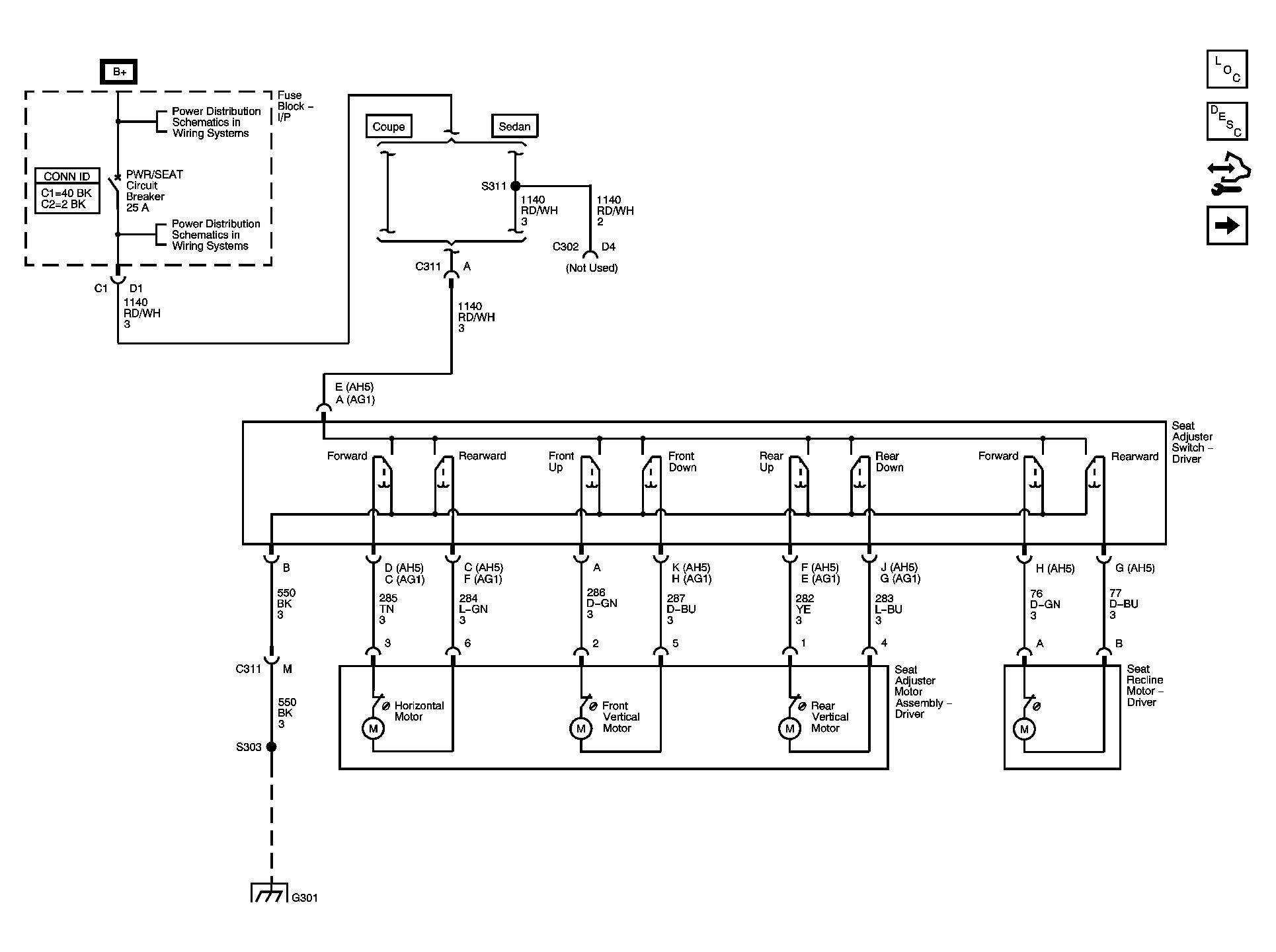

Fig 1: 8-Way Power - Wiring Diagram

GM1657125

Courtesy of GENERAL MOTORS CORP.

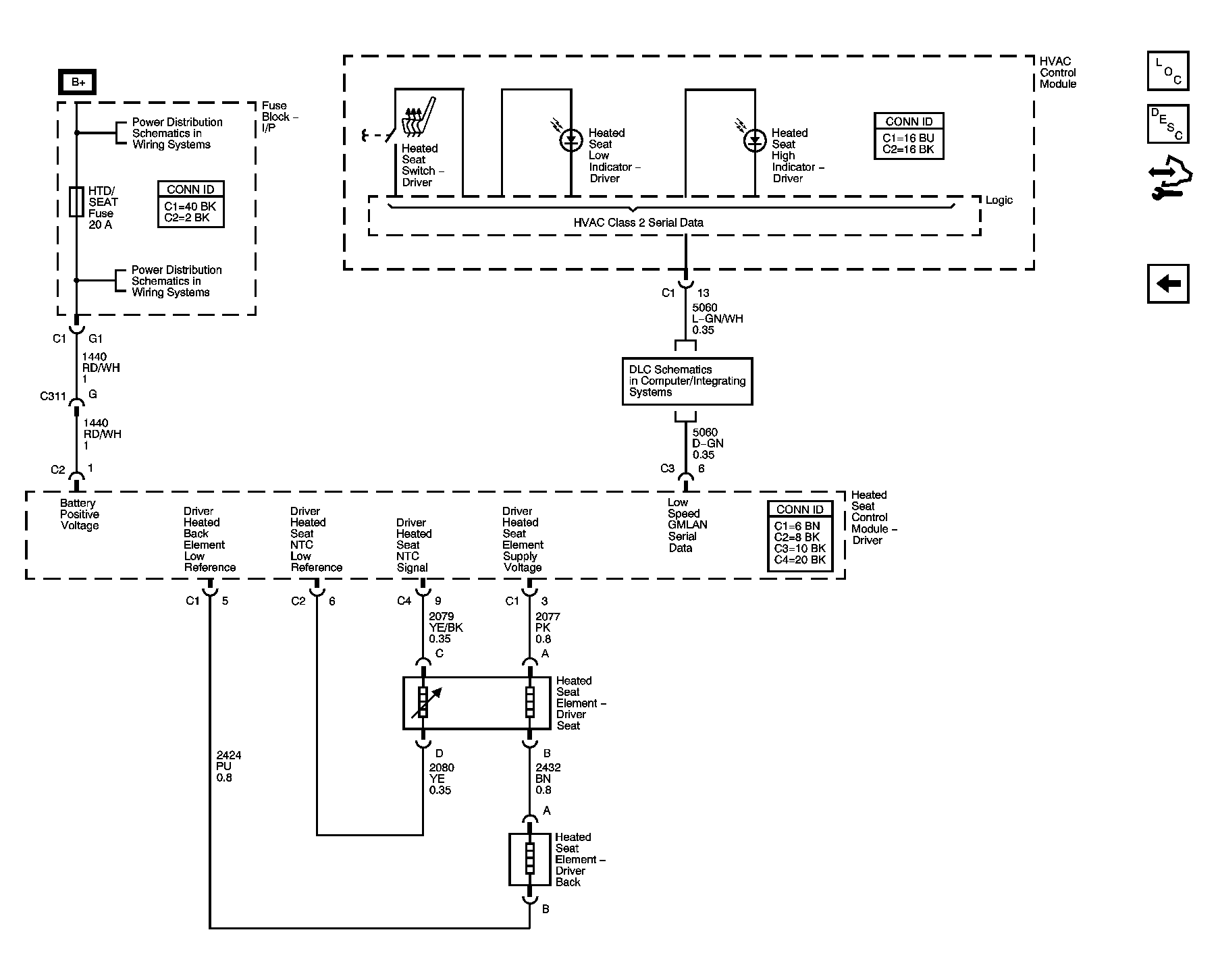

Fig 2: Heat Controls - Wiring Diagram

GM1657127

Courtesy of GENERAL MOTORS CORP.
