Lumbar Support Knob Replacement (Monte Carlo)

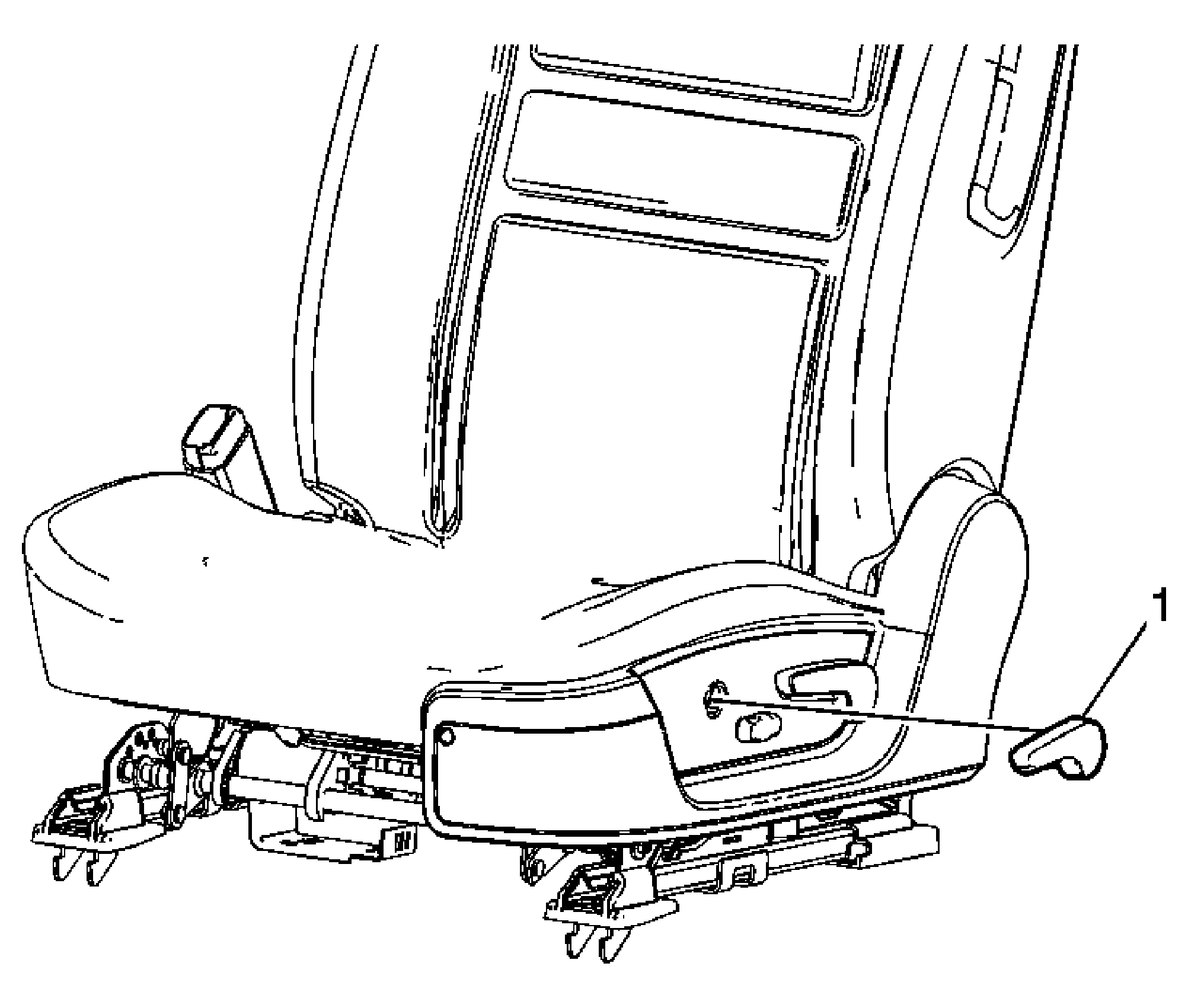

Fig 1: Replacing Lumbar Support Knob

Courtesy of GENERAL MOTORS CORP.

Lumbar Support Knob Replacement (Monte Carlo)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Knob, Lumbar Actuator Tip:  Pull outward to remove.
