Radio/Audio System Schematics

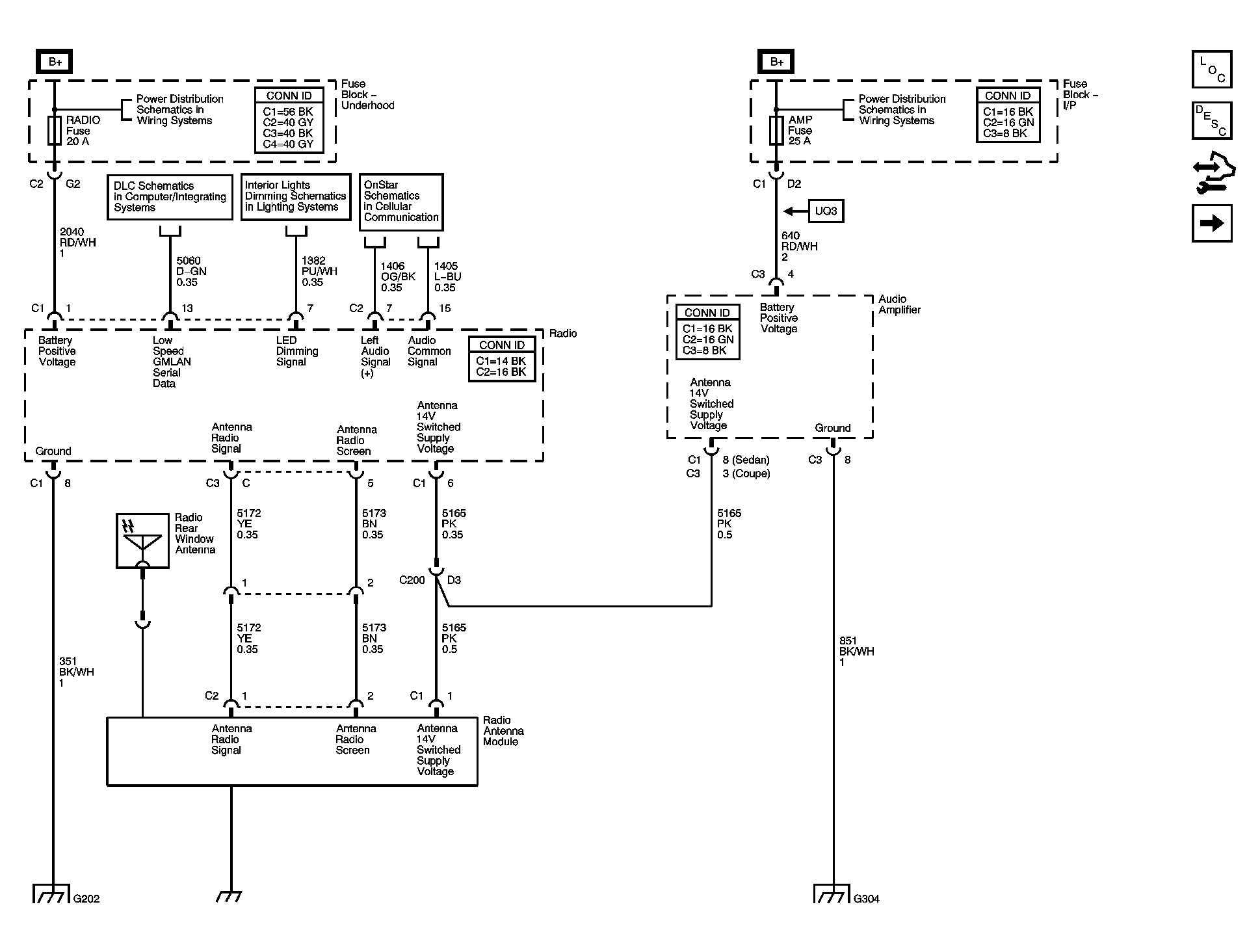

Fig 1: Power, Ground, and References - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

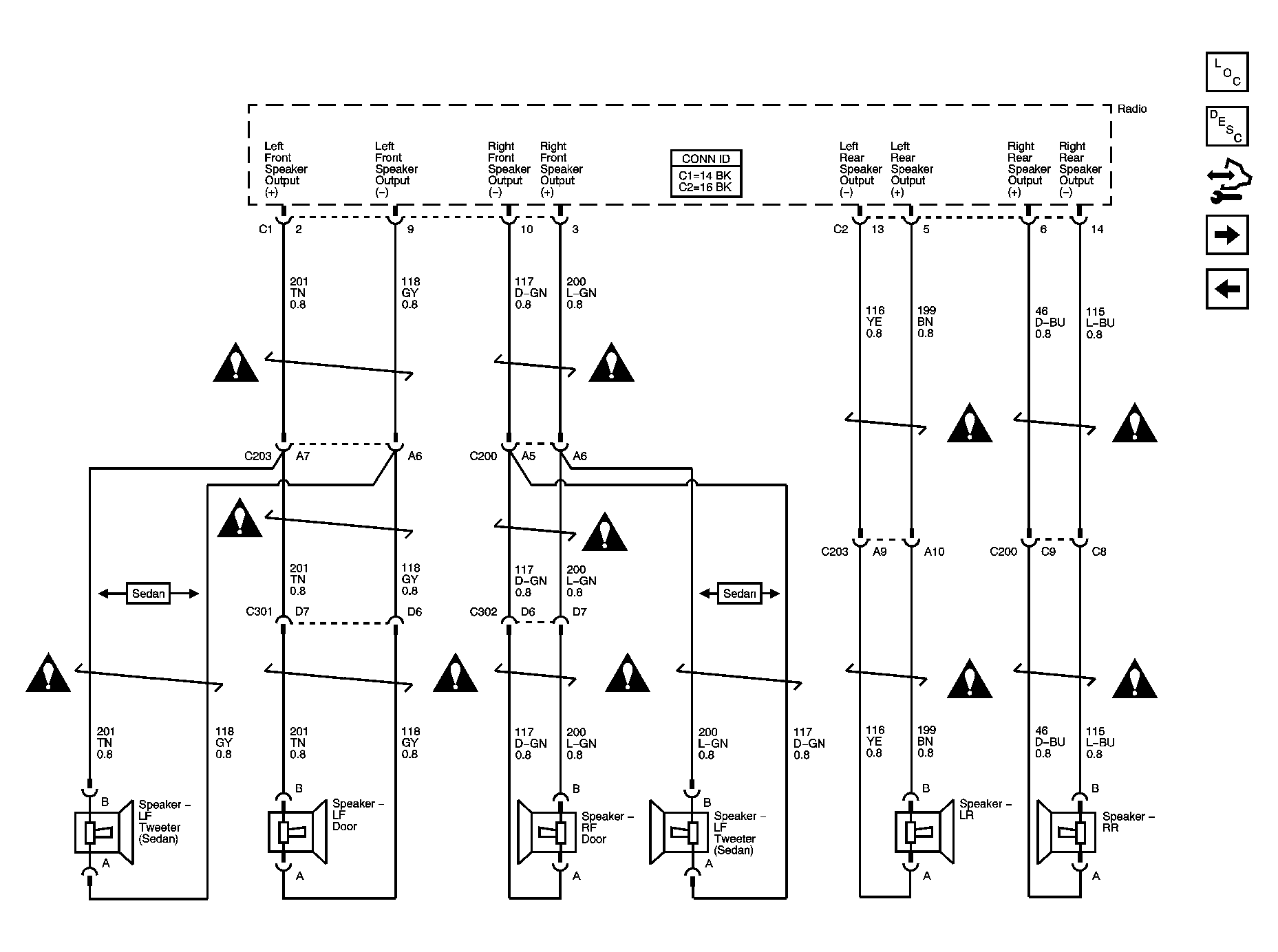

Fig 2: Radio to Speakers - UW6 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

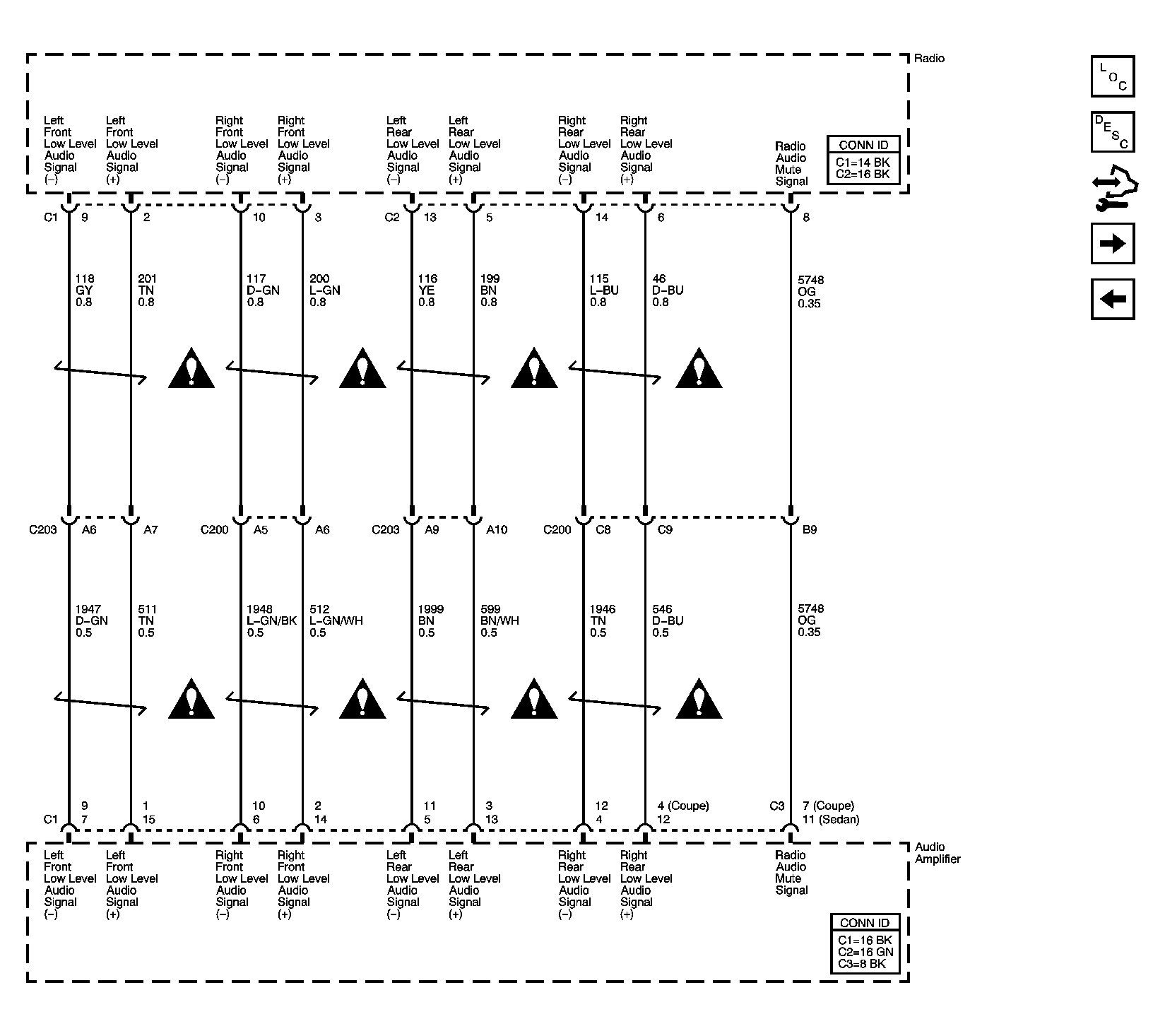

Fig 3: Audio Signal Communication - UQ3 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

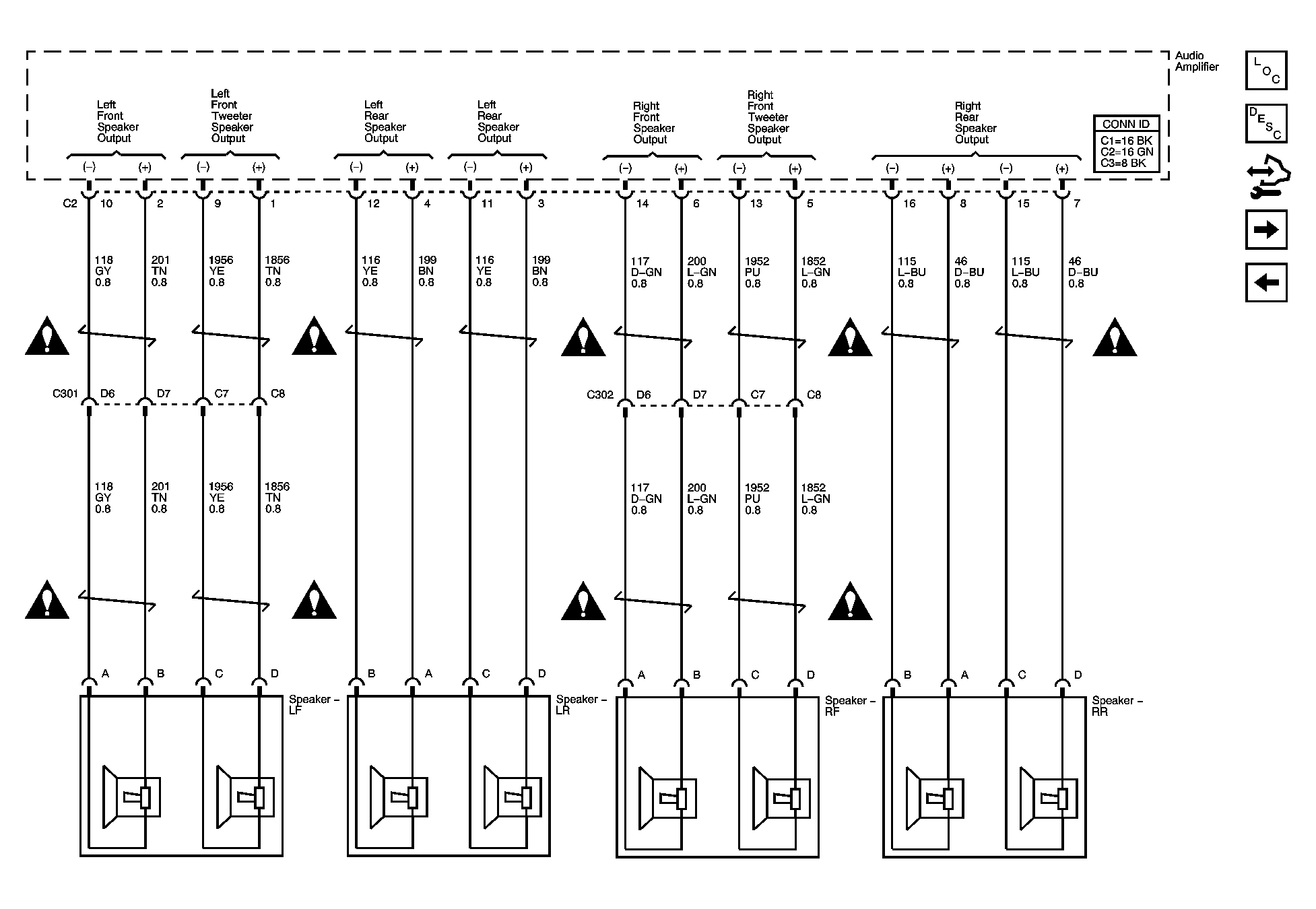

Fig 4: Audio Amplifier to Speakers - UQ3, Sedan - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

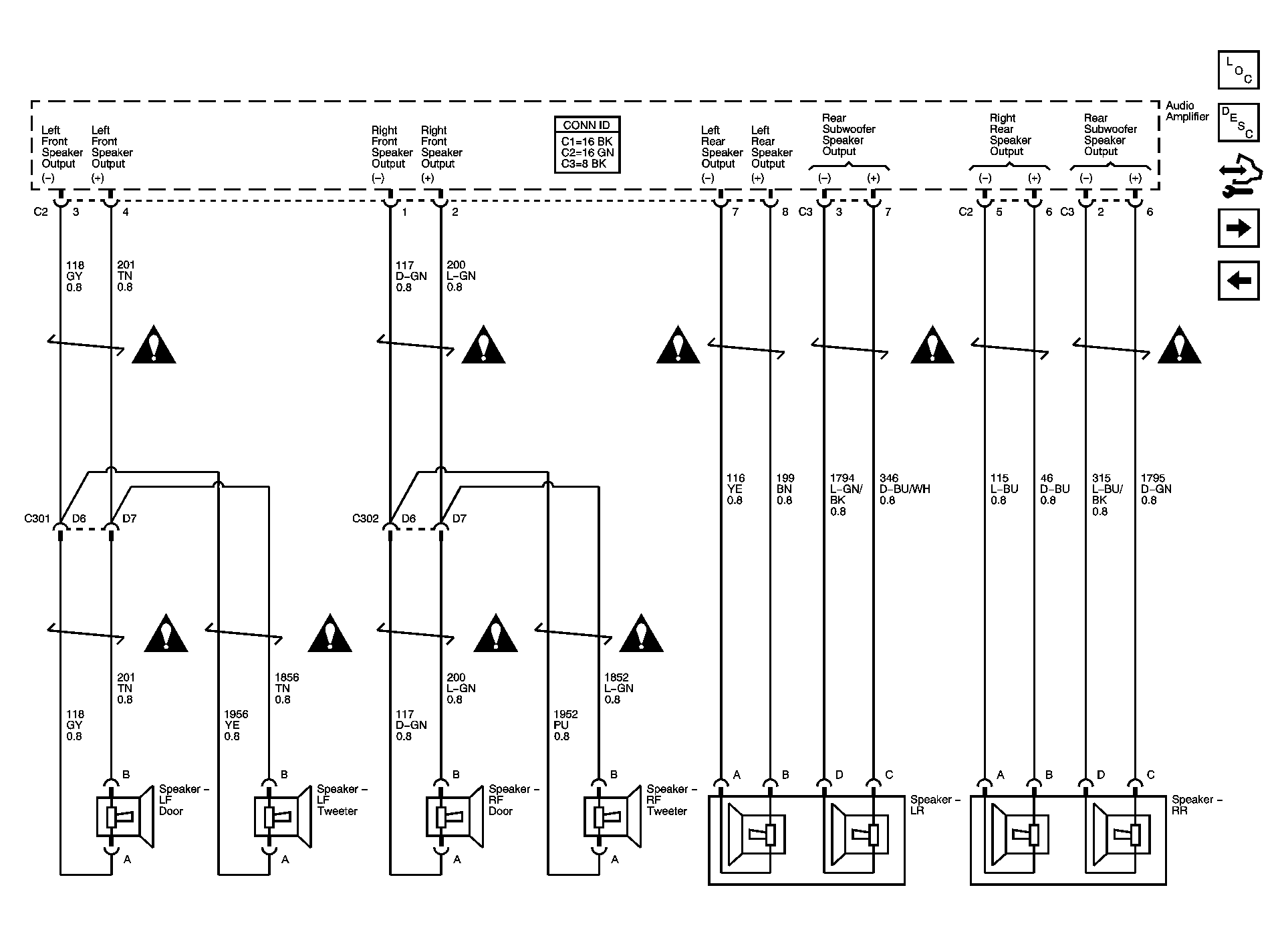

Fig 5: Amplifier to Speakers - UQ3, Coupe - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

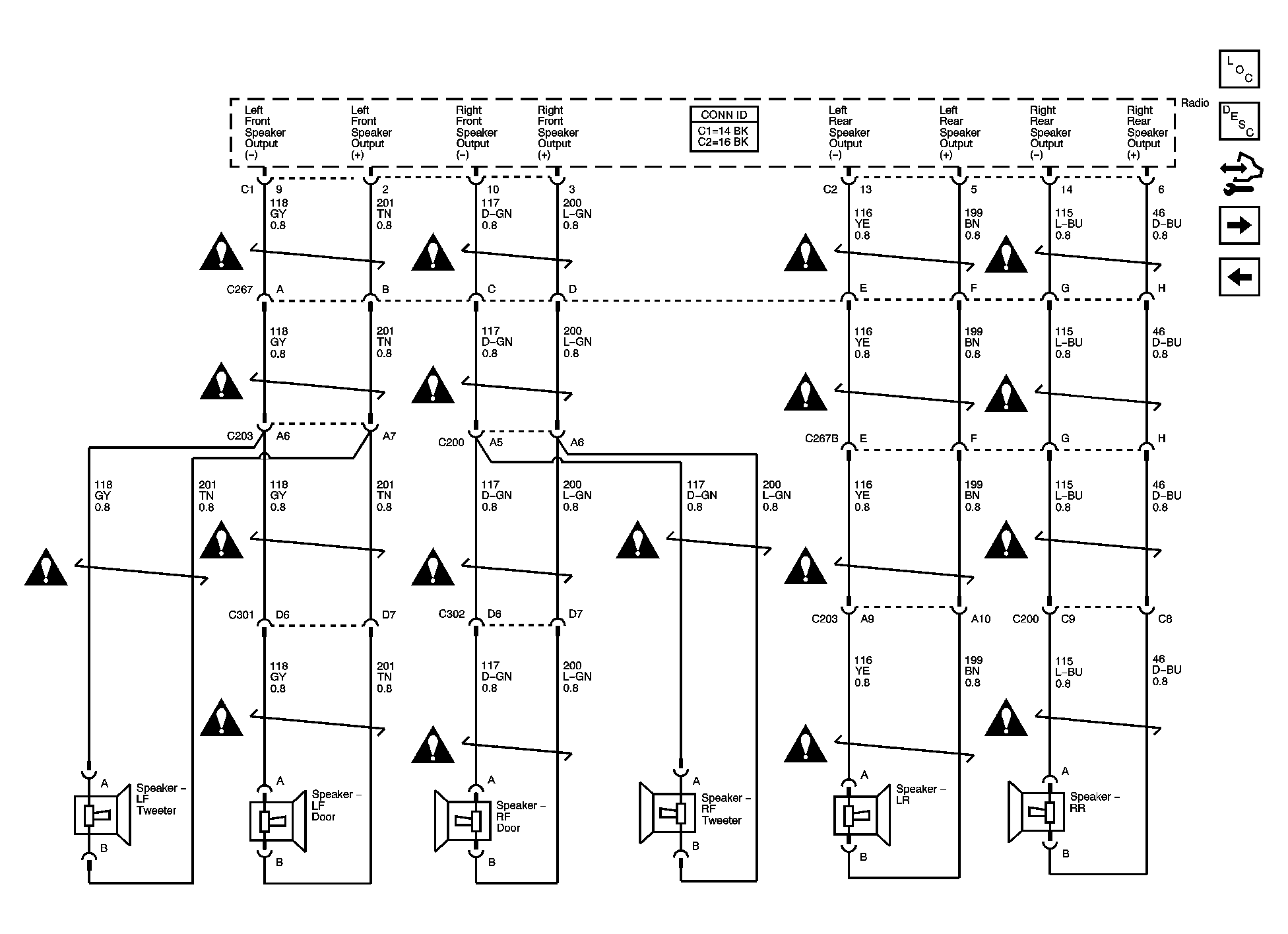

Fig 6: Radio to Speakers - 9C1, 9C3, w/o WX7 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

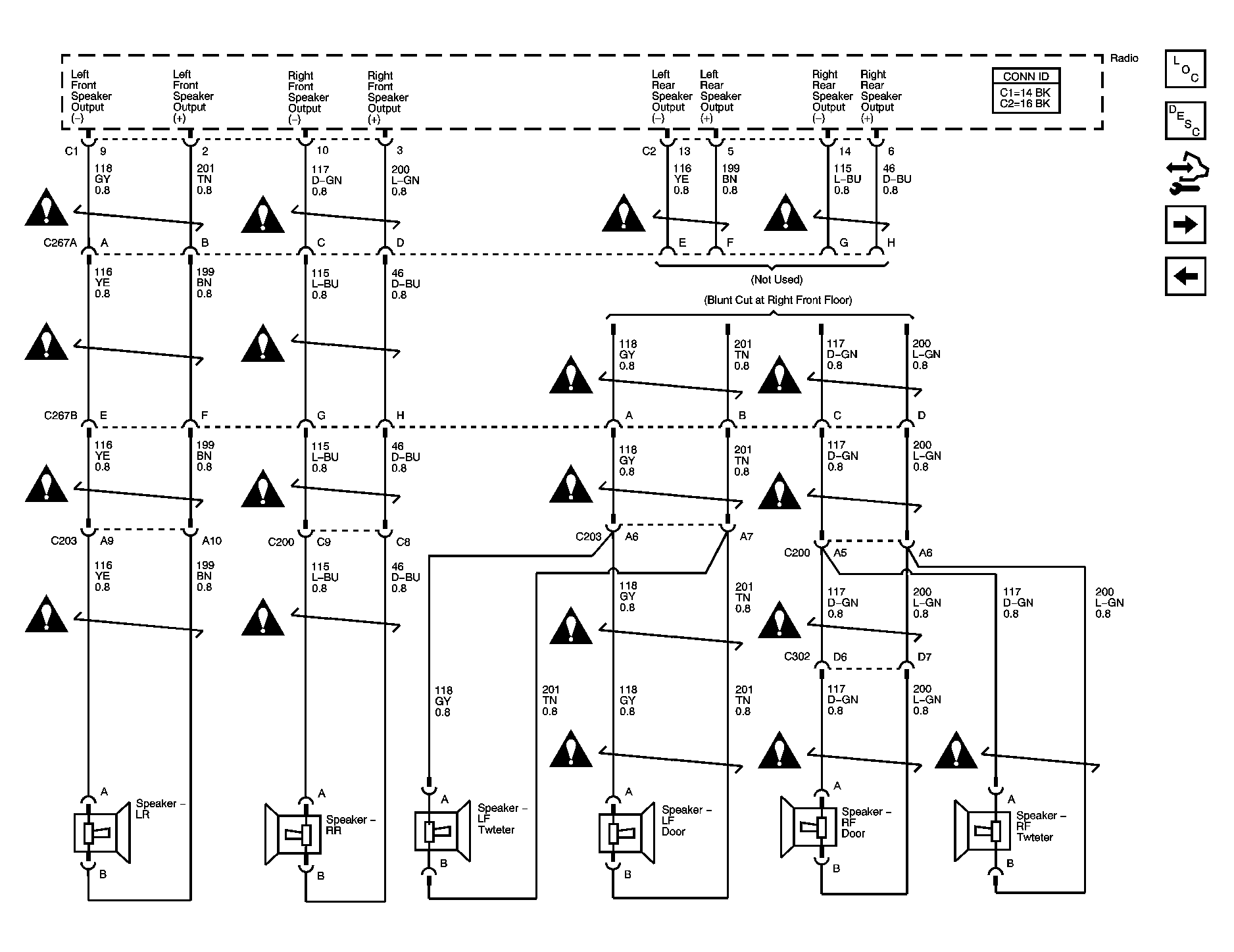

Fig 7: Radio to Speakers - 9C1, 9C3, and WX7 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

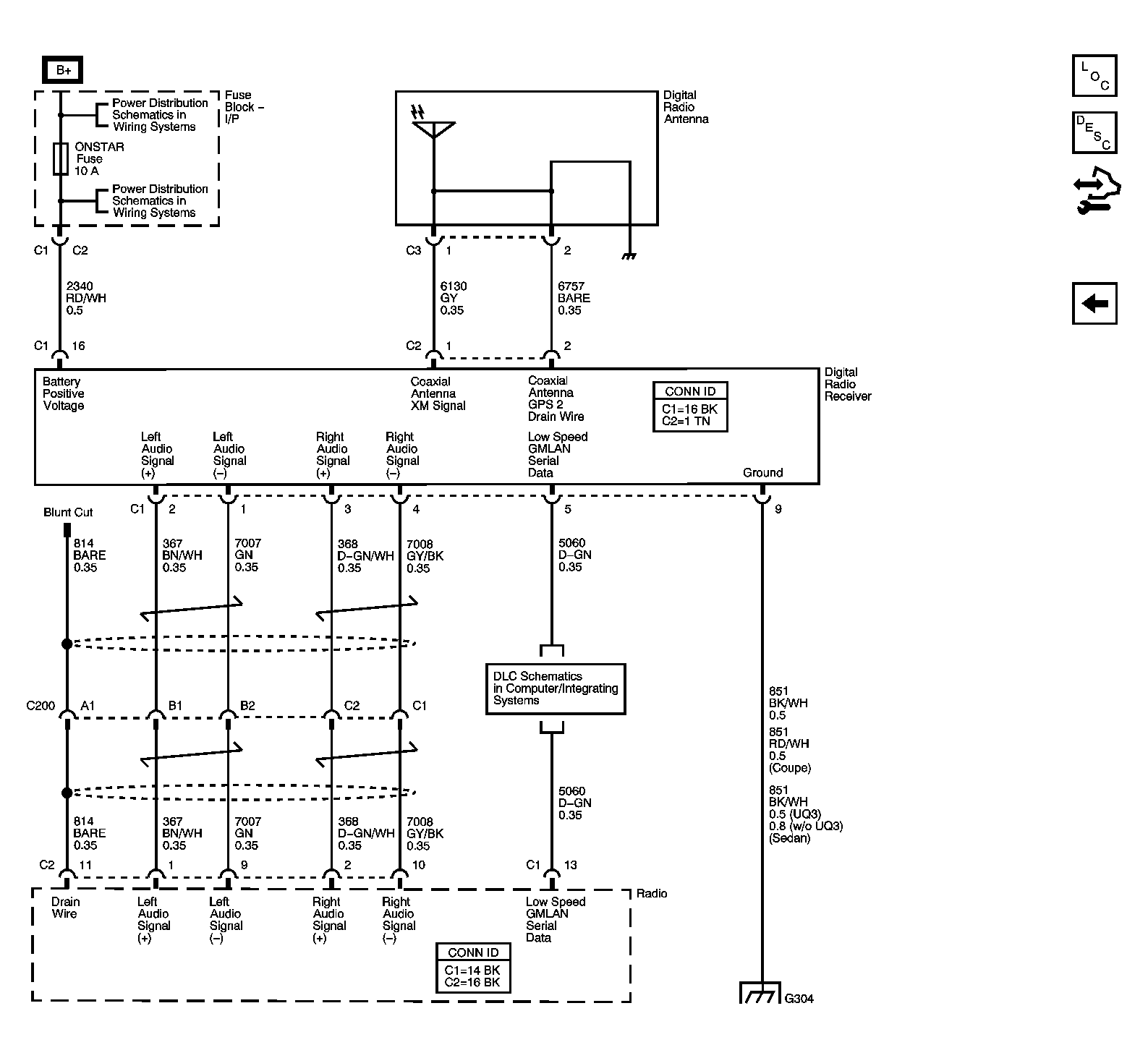

Fig 8: Satellite Radio - U2K - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
