Instrument Panel (I/P) Extension Trim Plate Replacement (Impala)

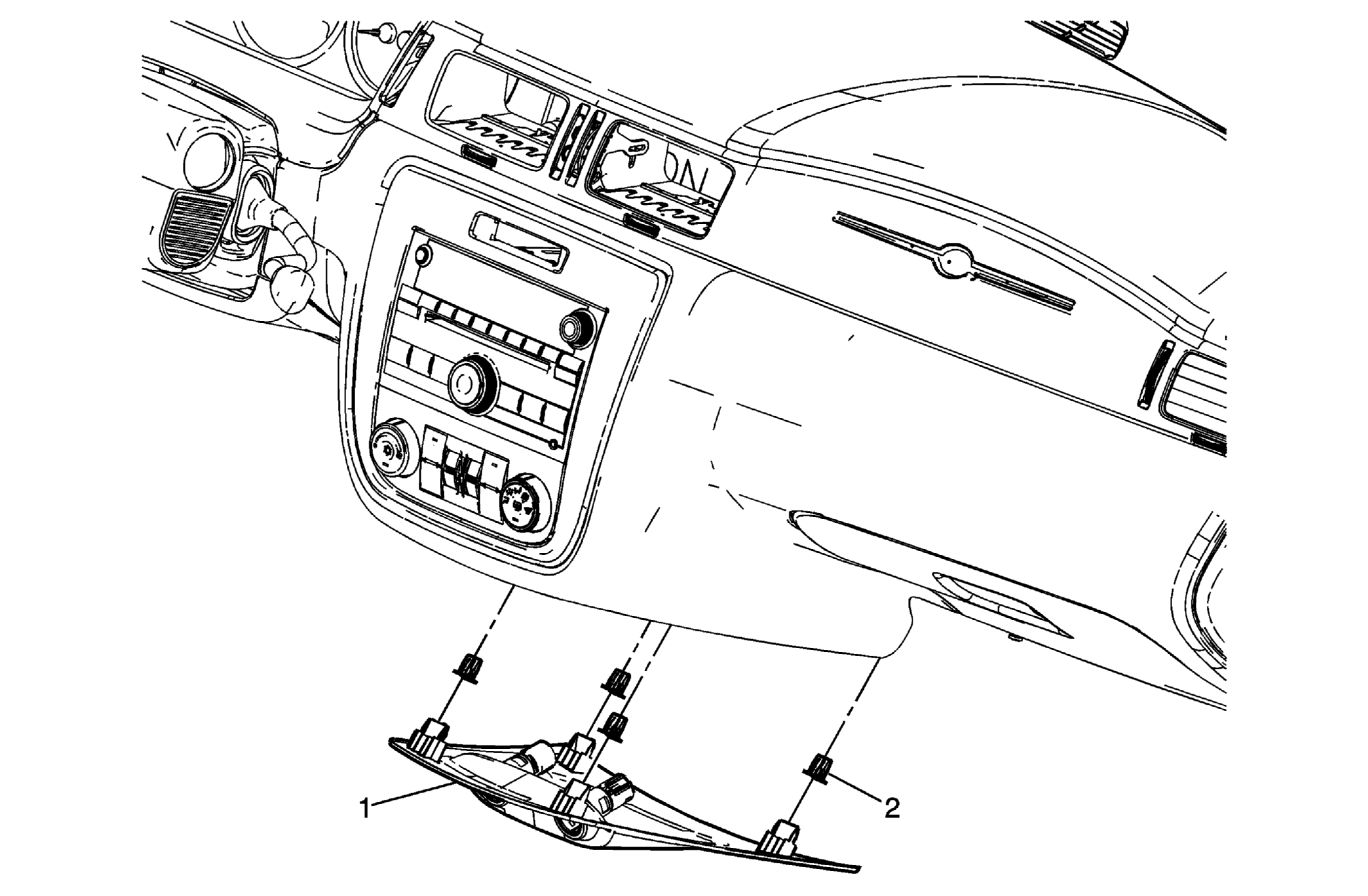

Fig 1: Replacing Instrument Panel (I/P) Extension Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Extension Panel Assembly, Instrument Panel Tip: Disconnect electrical connectors. Remove the 12-volt accessory power receptacles. Refer to Cigar Lighter Housing or 12 Volt Accessory Power Receptacle Replacement .
2	Clip, Retainer (Qty 4)
