Instrument Panel (I/P) Compartment Striker Replacement - (Monte Carlo)
Striker Replacement - Instrument Panel (I/P) Compartment (Monte Carlo)

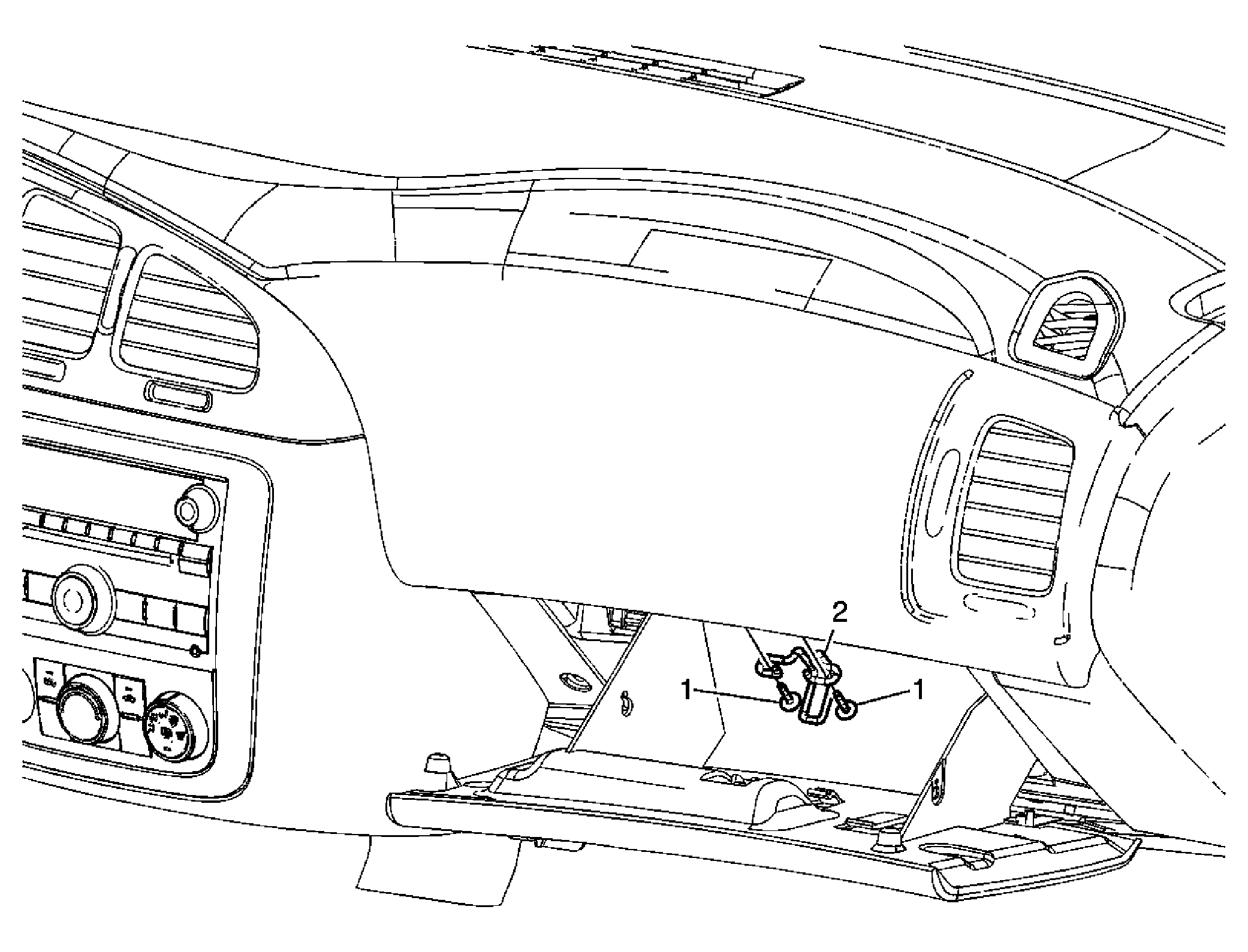

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Instrument Panel Compartment Striker Screws (Qty 2) Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Compartment Striker |
