Instrument Panel (I/P) Compartment Striker Replacement - (Impala)

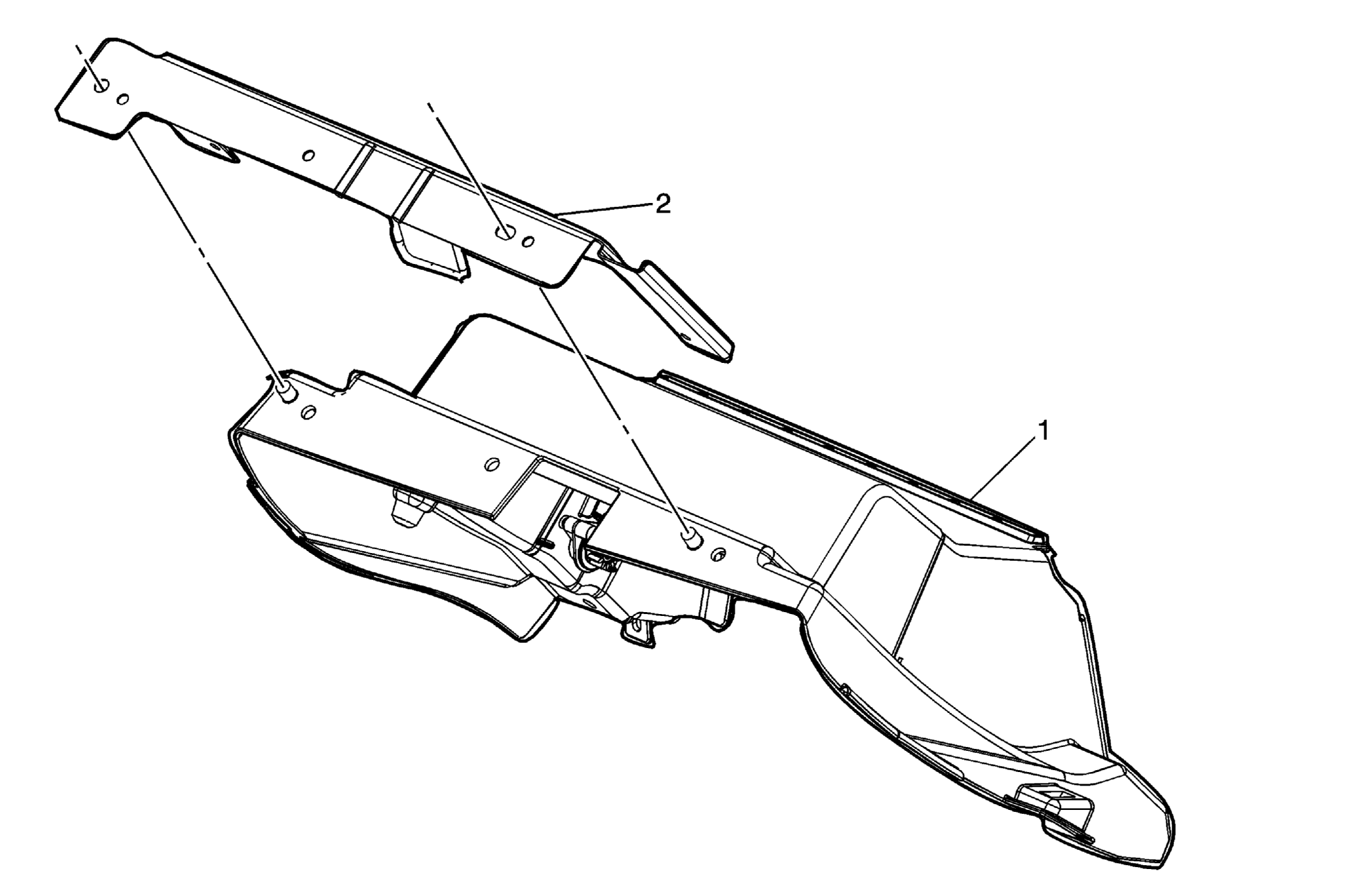

Fig 1: Replacing Instrument Panel (I/P) Compartment Striker

Courtesy of GENERAL MOTORS CORP.

Striker Replacement - Instrument Panel (I/P) Compartment (Impala)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Panel Assembly, Instrument Panel Compartment Inner Refer to Instrument Panel Compartment Inner Panel Replacement (Impala) .
2	Striker Assembly, Instrument Panel Compartment.
