Console Compartment Door Latch Replacement - (Monte Carlo)

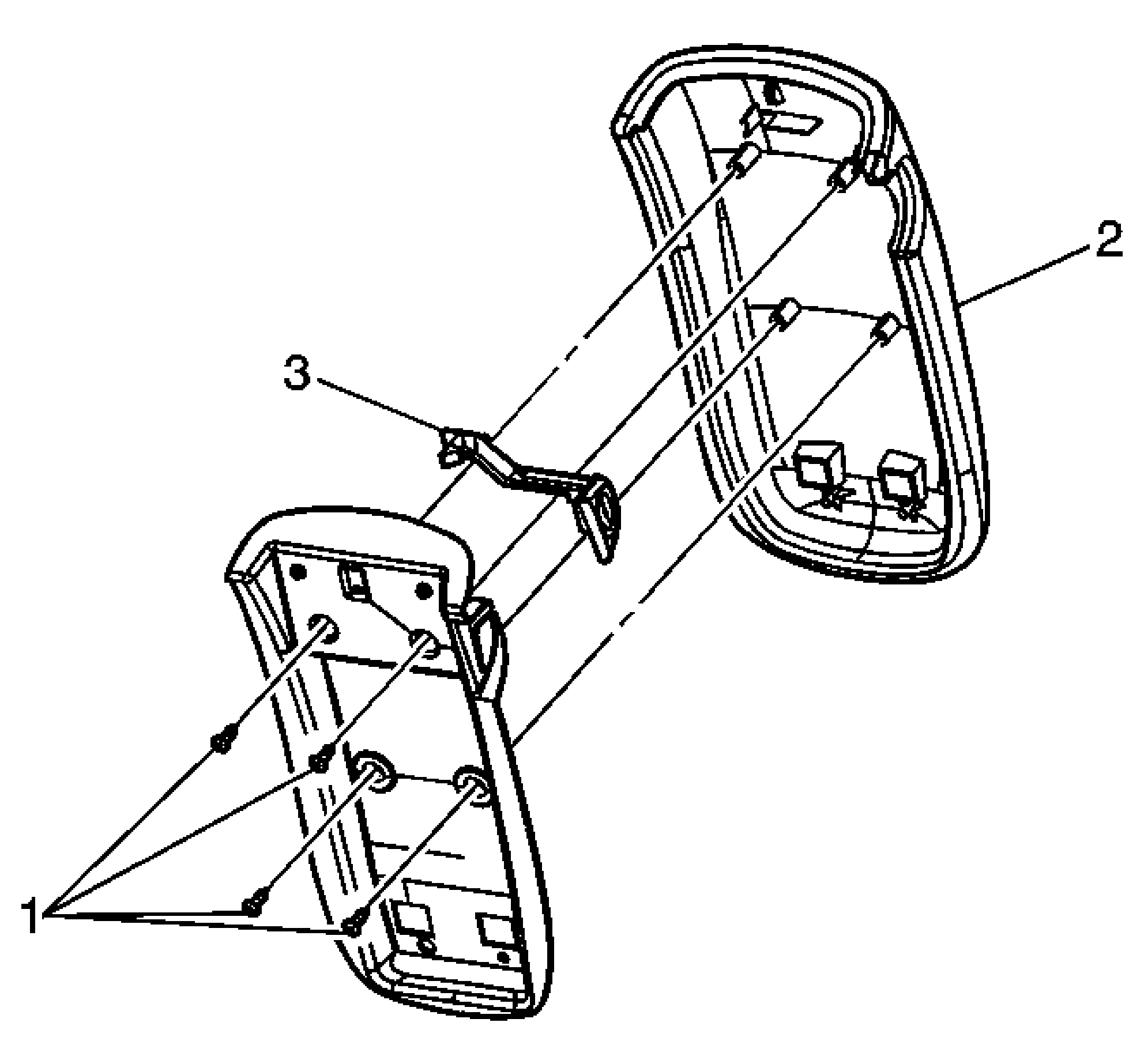

Fig 1: Replacing Console Compartment Door Latch

Courtesy of GENERAL MOTORS CORP.

Latch Replacement - Console Compartment Door (Monte Carlo)

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console Door Assembly. Refer to Door Replacement - Console Compartment (Monte Carlo) .
1	Front Floor Console Door Inner Screws (Qty 4) Tighten:  2 N.m (18 lb in)
2	Front Floor Console Door Cover Assembly
3	Front Floor Console Door Latch
