Console Compartment Door Latch Replacement - (Impala)

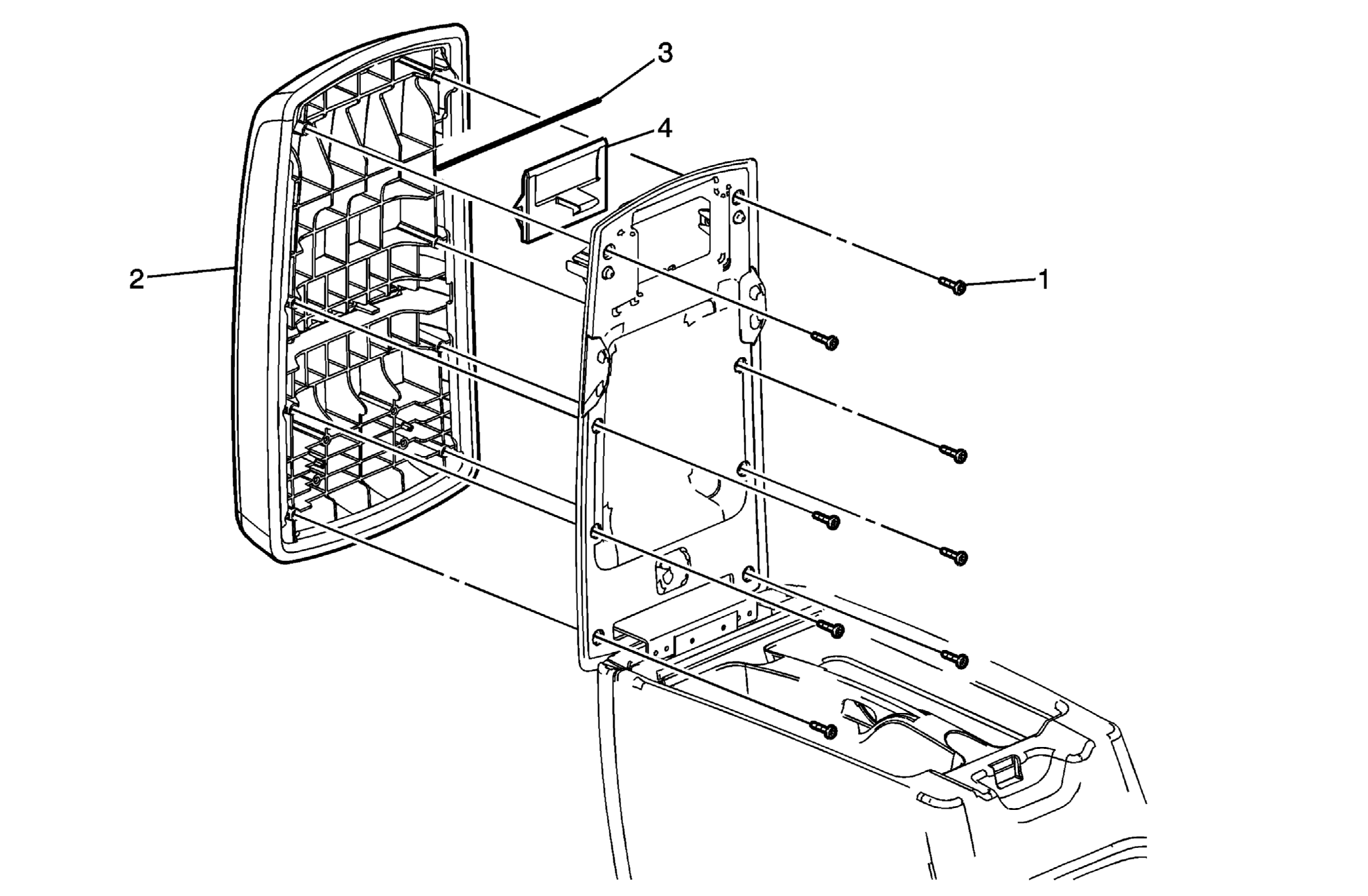

Fig 1: Replacing Console Compartment Door Latch

Courtesy of GENERAL MOTORS CORP.

Latch Replacement - Console Compartment Door (Impala)

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Floor Console Armrest Inner Screws (Qty 8) Tighten:  2 N.m (18 lb in)
2	Front Floor Console Armrest Cover Assembly Tip:  Separate the armrest cover assembly from the inner panel.
3	Front Floor Console Armrest Latch Spring
4	Front Floor Console Armrest Latch Assembly
