Console Compartment Door Hinge Replacement (Monte Carlo)
Console Compartment Door Hinge Replacement (Monte Carlo)

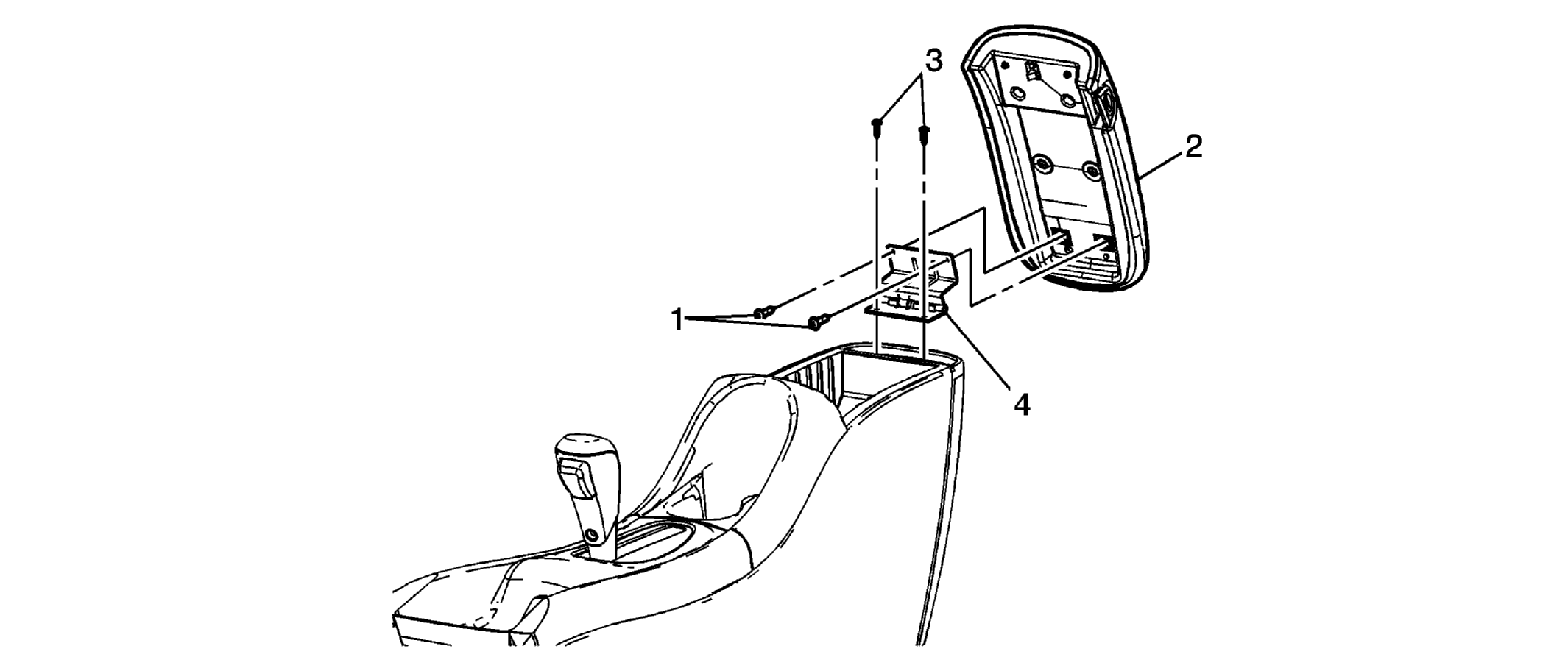

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Front Floor Console Door Screws (Qty 2) Tighten: 2 N.m (18 lb in) |
| 2 | Front Floor Console Door Assembly |
| 3 | Front Floor Console Hinge Screws (Qty 2) Tighten: 2 N.m (18 lb in) |
| 4 | Front Floor Console Door Hinge |
