Garage Door Opener Replacement

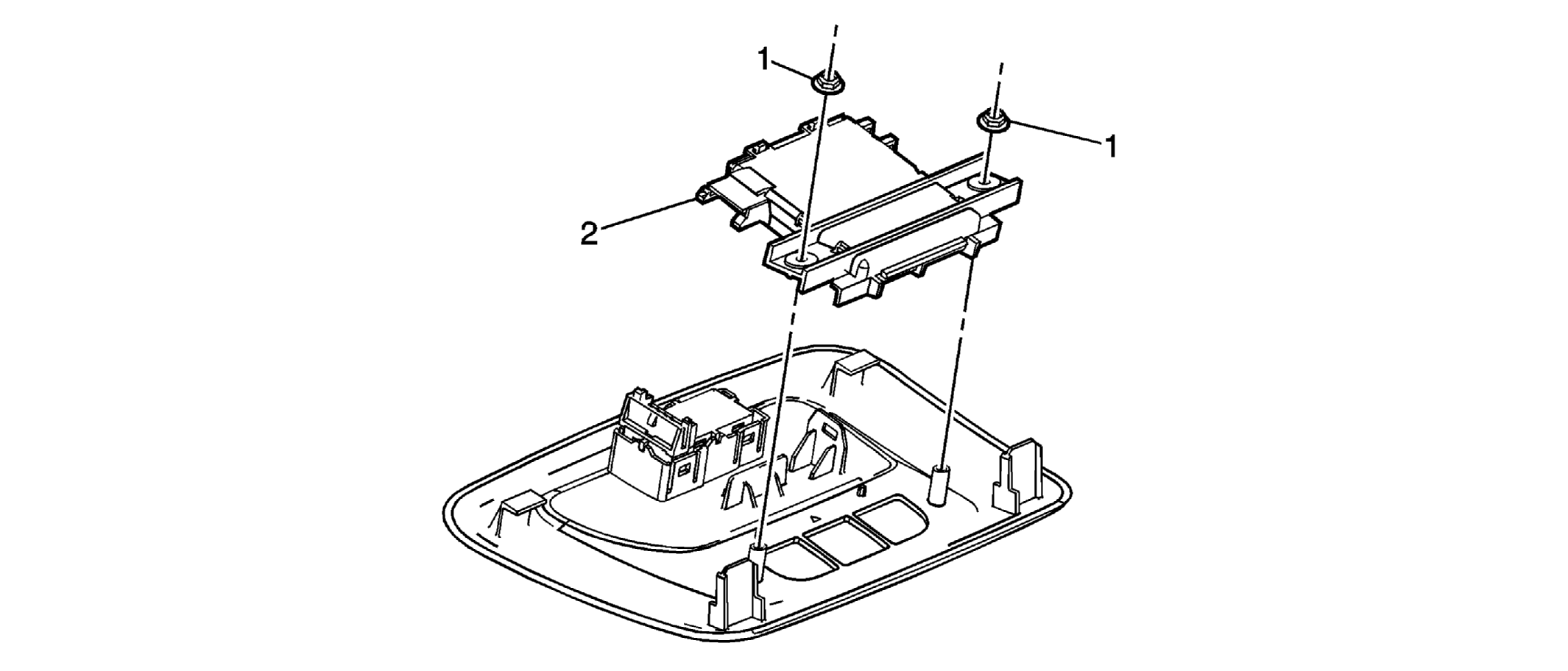

Fig 1: Replacing Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the overhead console. Refer to Console Replacement - Overhead . Program the garage door opener after replacement. Refer to Control Module References .
1	Nut, Garage Door Opener Push-button Tighten: 2 N.m (18 lb in)
2	Push-button, Garage Door Opener

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the overhead console. Refer to Console Replacement - Overhead .
Program the garage door opener after replacement. Refer to Control Module References .

Nut, Garage Door Opener Push-button

Tighten: 2 N.m (18 lb in)

Push-button, Garage Door Opener
