Instrument Cluster Schematics

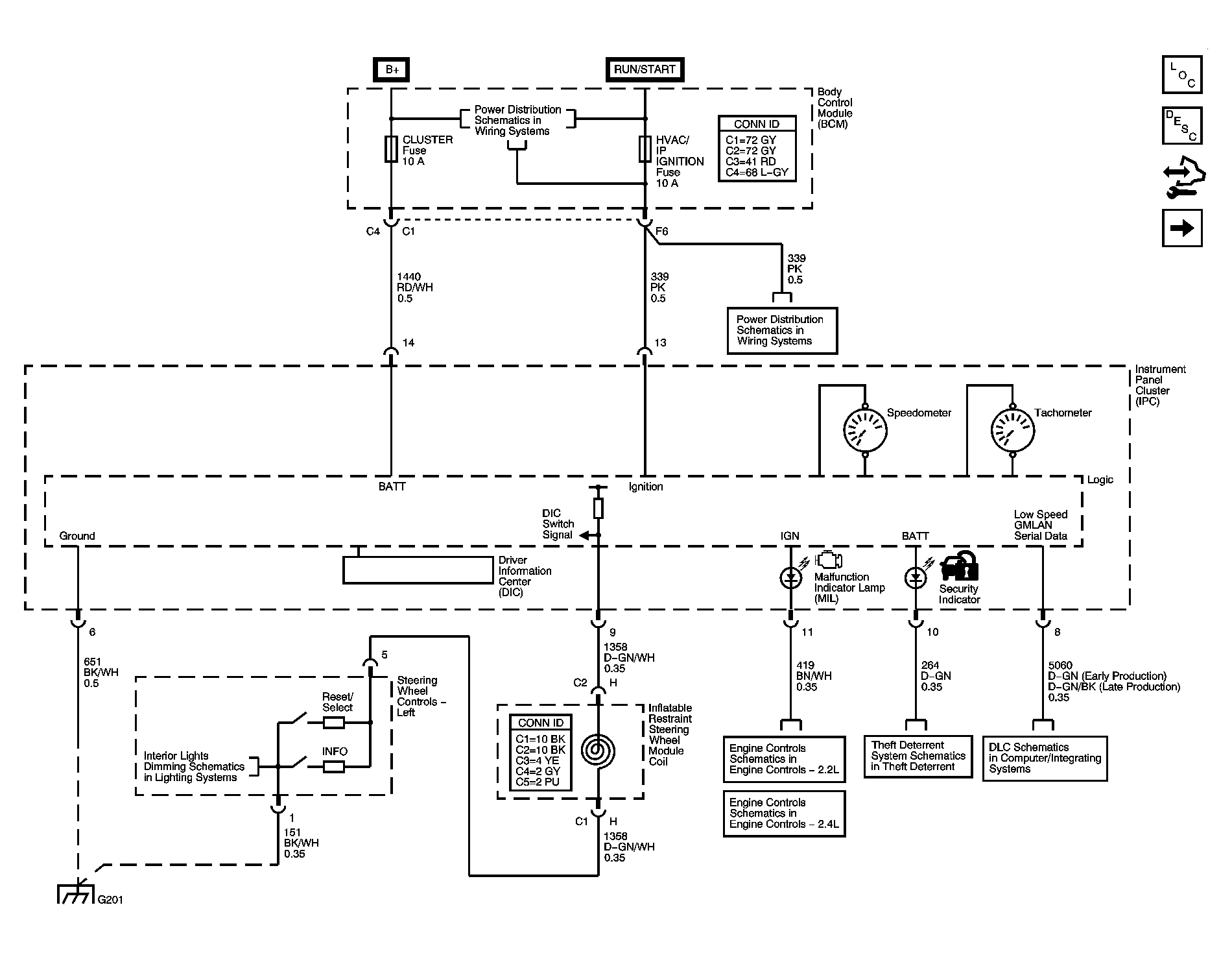

Fig 1: Power, Ground, DIC, Illumination, MIL, and Security Indicator
GM1558408Courtesy of GENERAL MOTORS CORP.

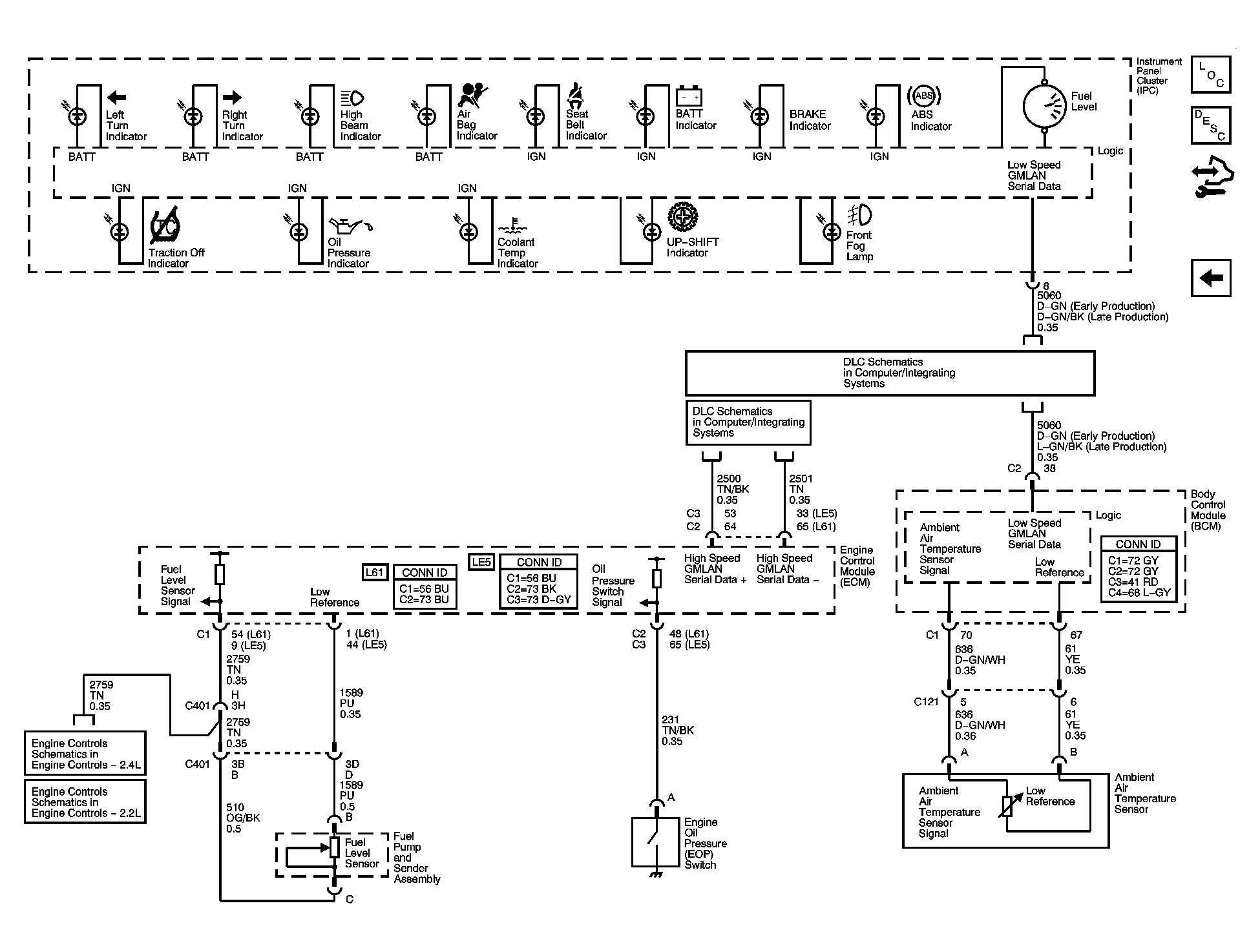

Fig 2: Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor, and Indicators
GM1558411Courtesy of GENERAL MOTORS CORP.
