Exterior Lights Schematics

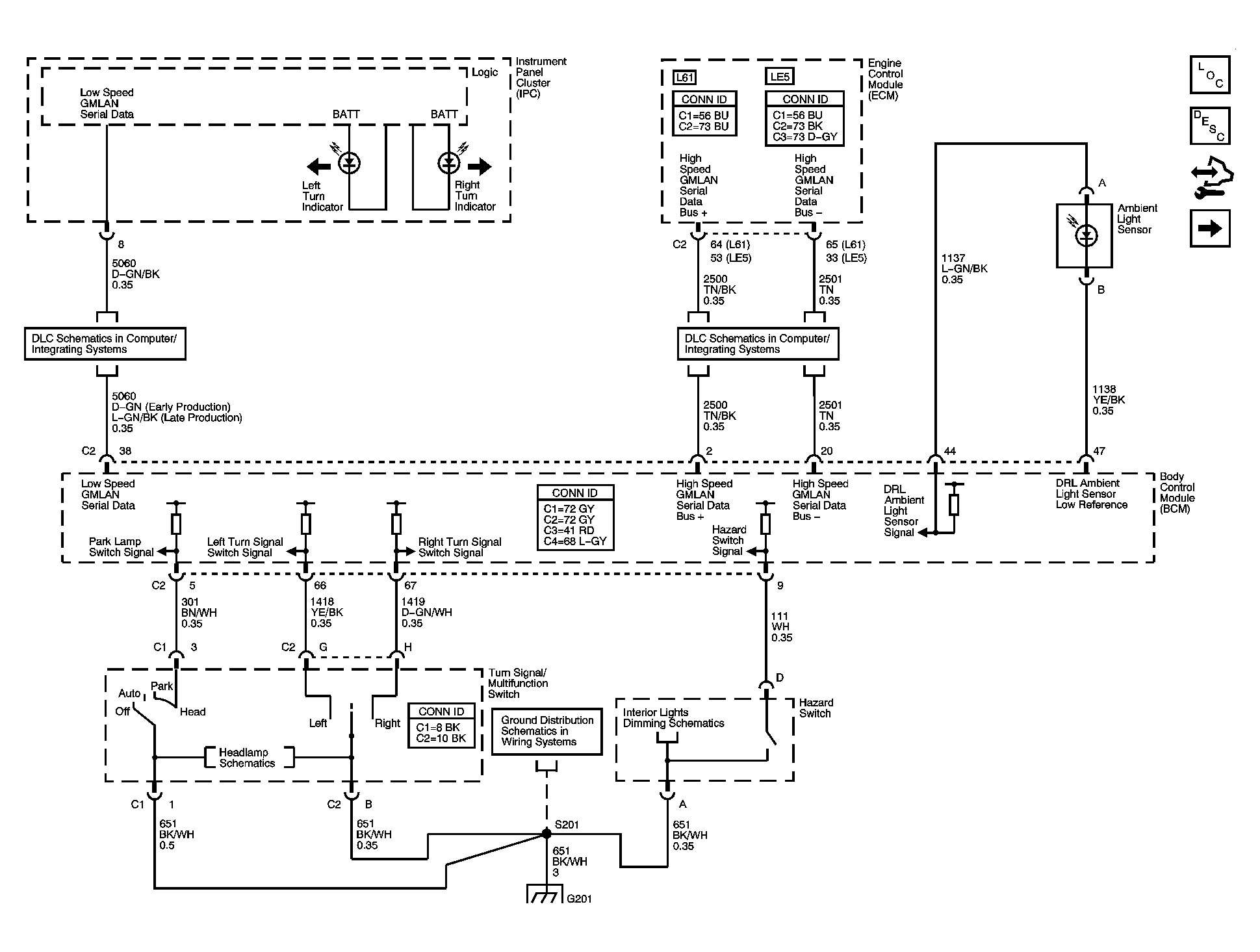

Fig 1: Exterior Lights Schematic
GM1558426Courtesy of GENERAL MOTORS CORP.

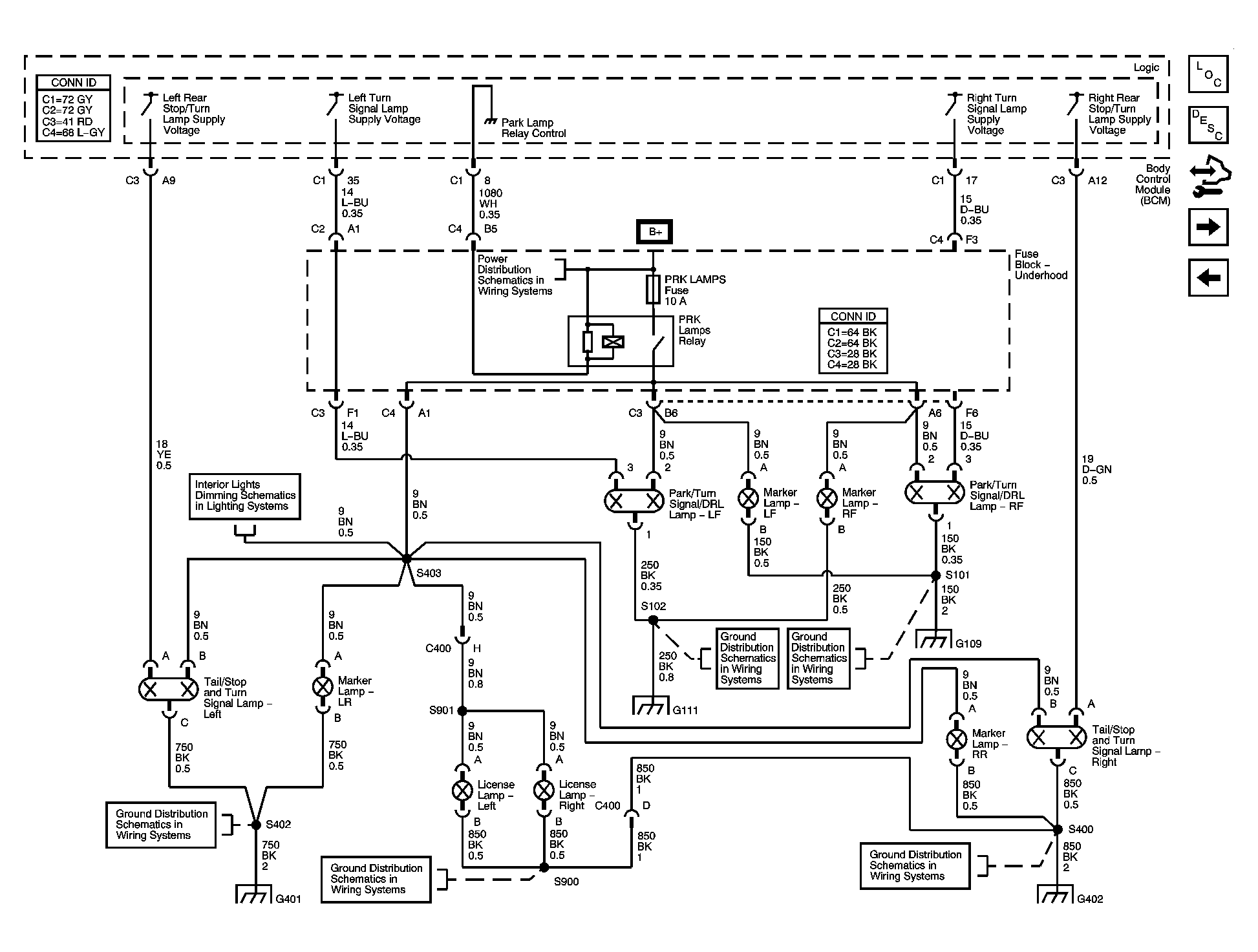

Fig 2: Park/Turn Signal/DRL, Tail/Stop and Turn Signal, License, and Side Marker Lamps
GM1558428Courtesy of GENERAL MOTORS CORP.

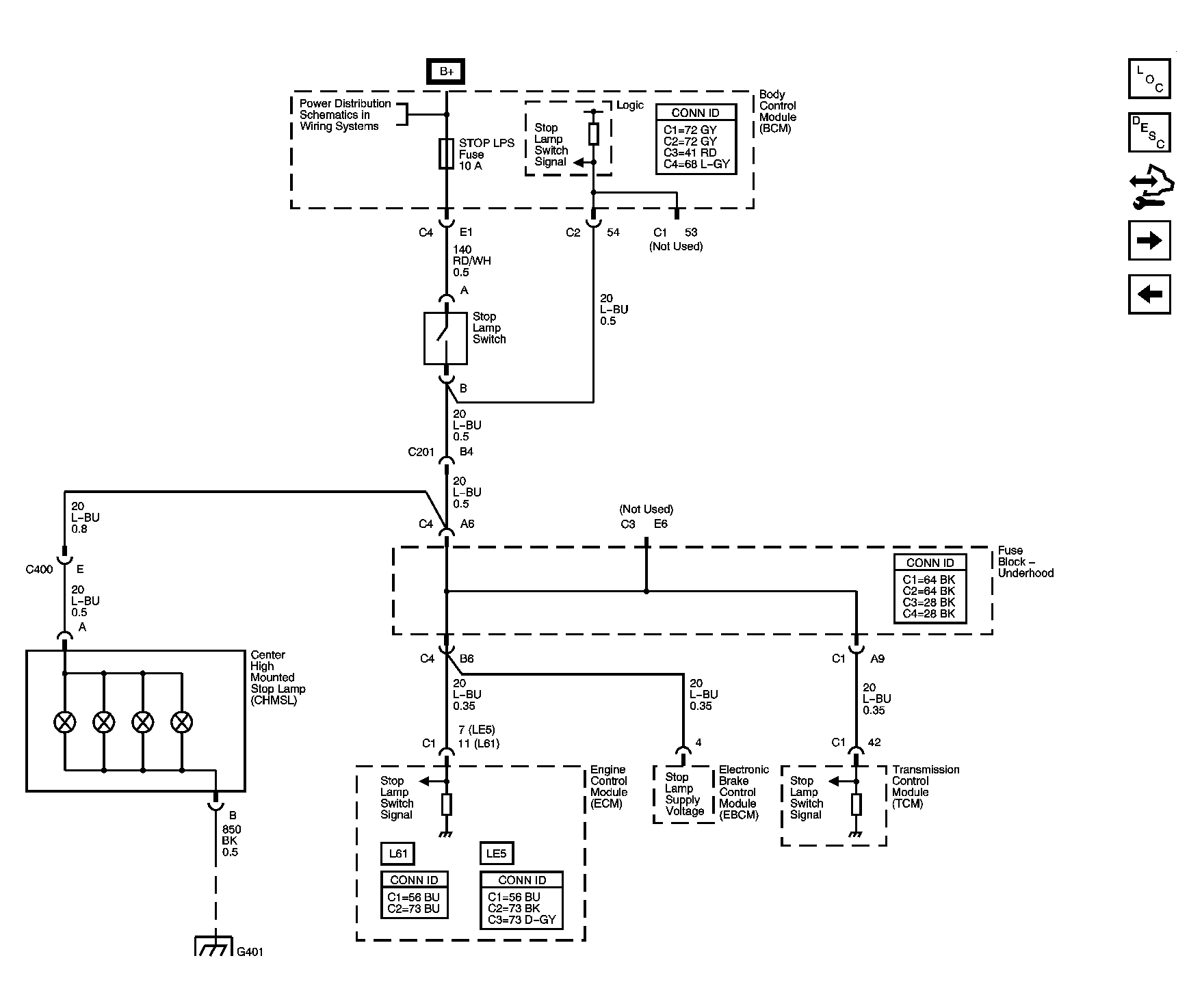

Fig 3: Center High Mounted Stop Lamp and B+
GM1558431Courtesy of GENERAL MOTORS CORP.

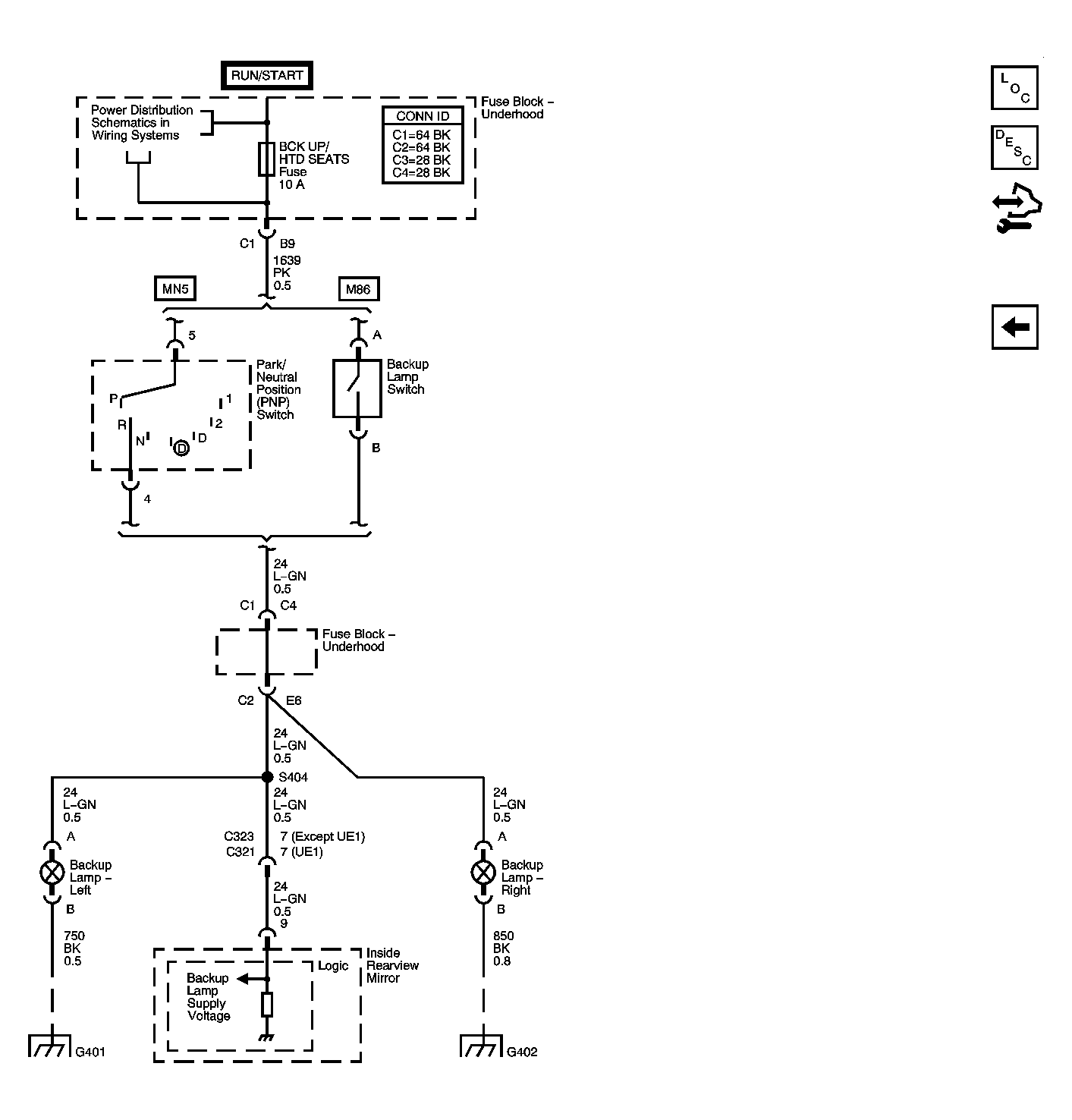

Fig 4: Backup Lamps
GM1558435Courtesy of GENERAL MOTORS CORP.
