Hazard Warning Switch Replacement
Hazard Warning Switch Replacement

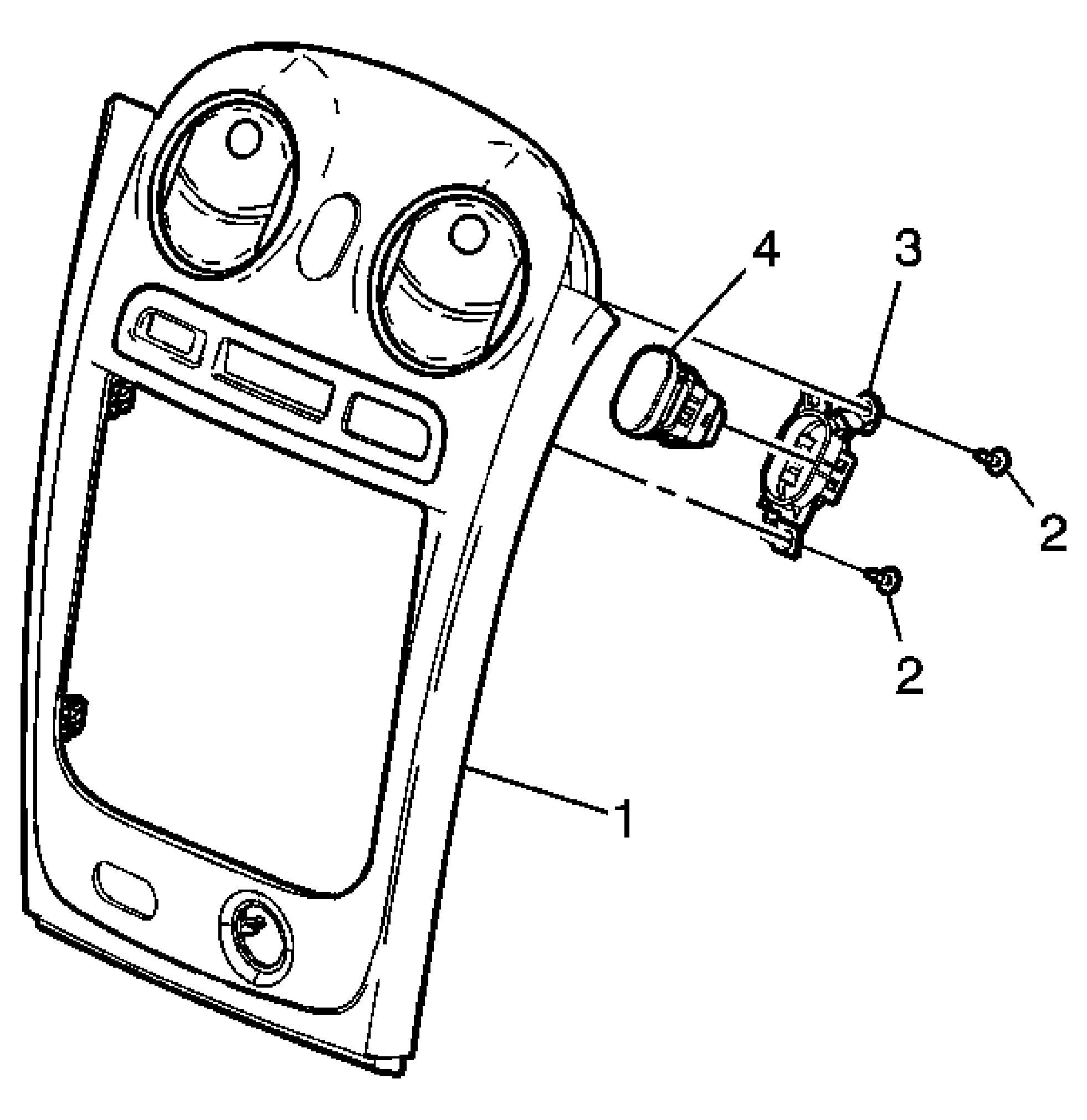

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Trim Plate, Instrument Panel Accessory Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory . |
| 2 | Screw, Hazard Warning Switch (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 3 | Bracket, Hazard Warning Switch |
| 4 | Switch Assembly, Hazard Warning |
