Radio/Audio System Schematics

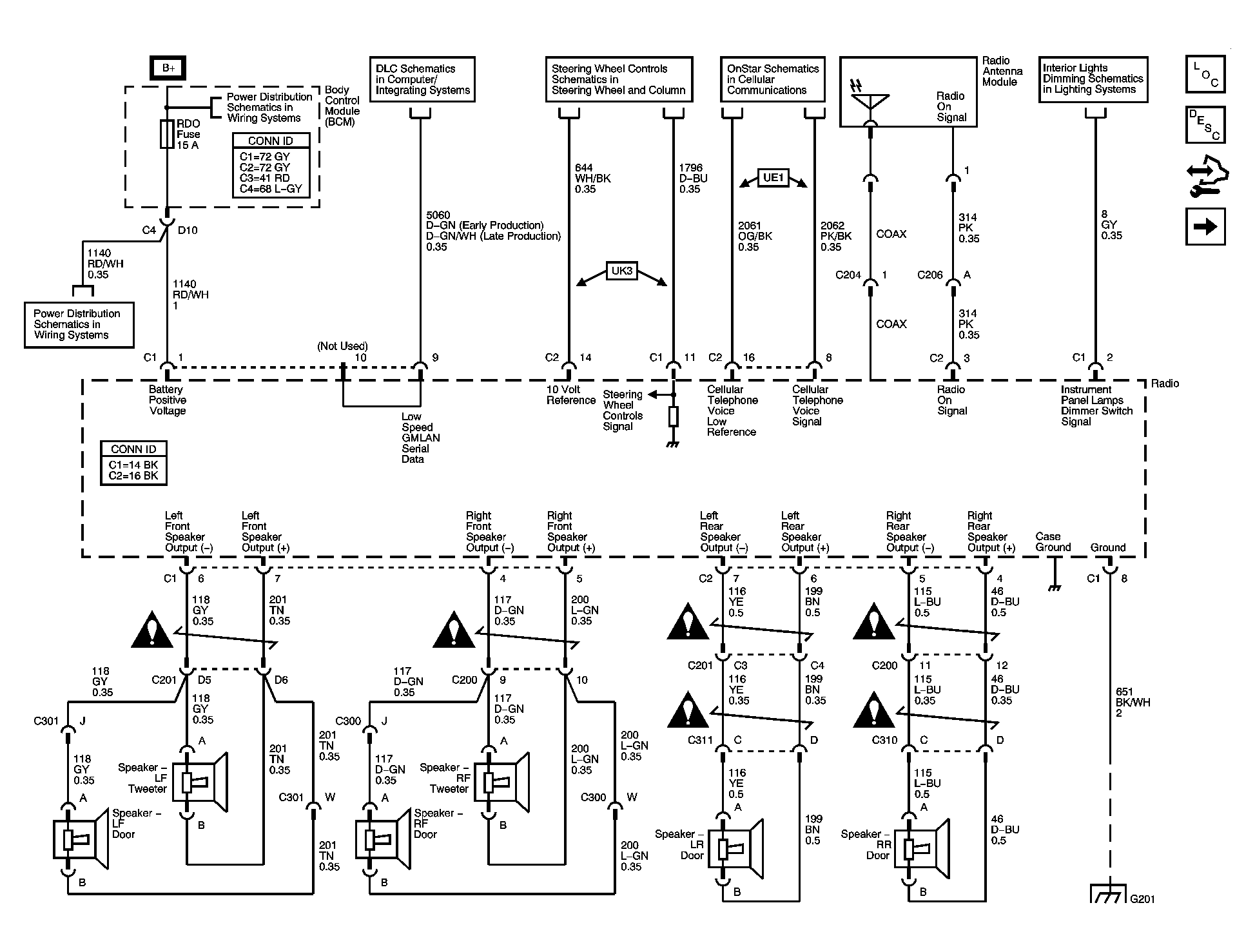

Fig 1: Radio w/ UW5
GM1570545Courtesy of GENERAL MOTORS CORP.

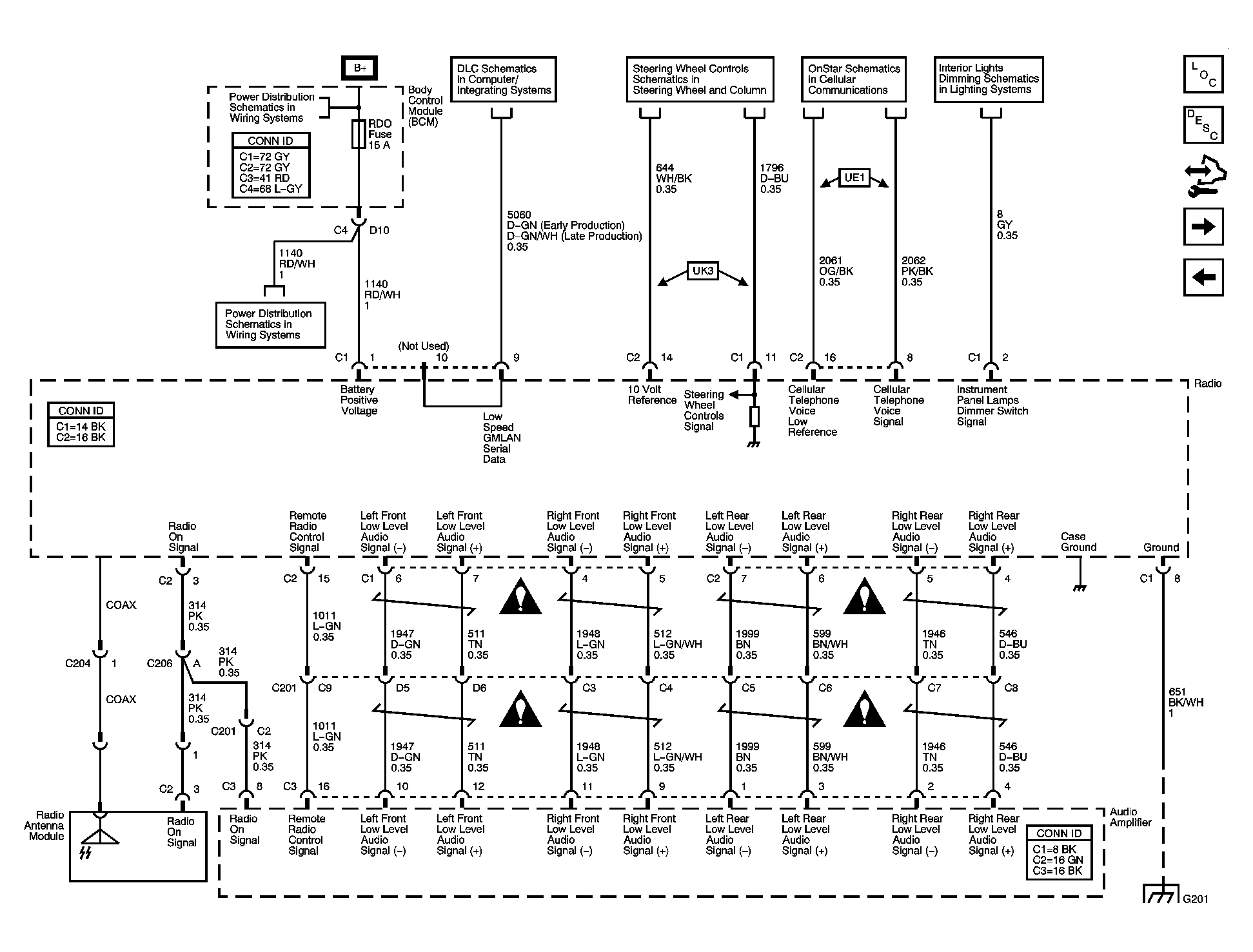

Fig 2: Radio w/ UQ3 (1 of 2)
GM1570547Courtesy of GENERAL MOTORS CORP.

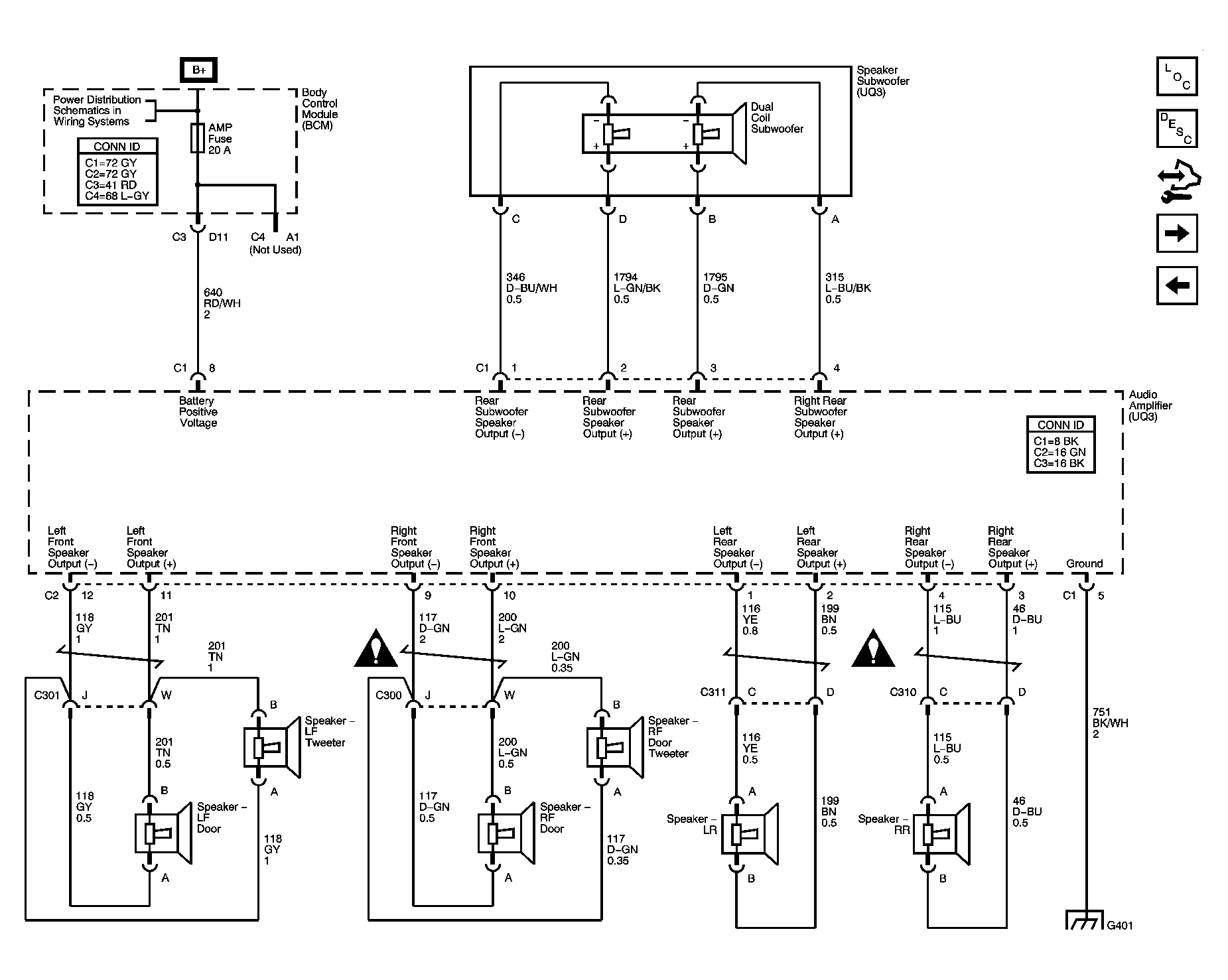

Fig 3: Radio w/ UQ3 (2 of 2)
GM1570549Courtesy of GENERAL MOTORS CORP.

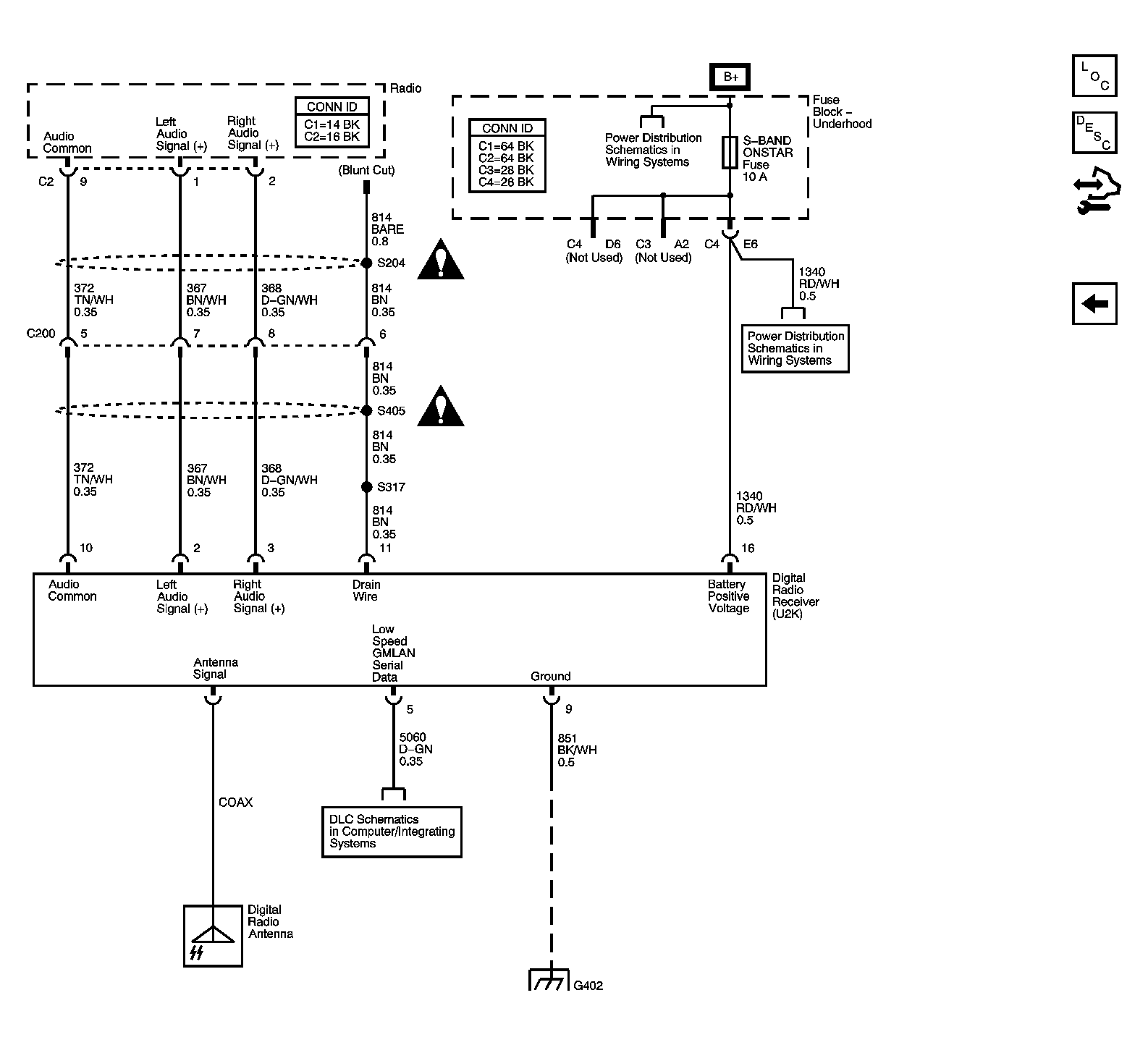

Fig 4: Digital Radio Receiver
GM1570554Courtesy of GENERAL MOTORS CORP.
