Striker Replacement - Instrument Panel (I/P) Compartment
Striker Replacement - Instrument Panel (I/P) Compartment

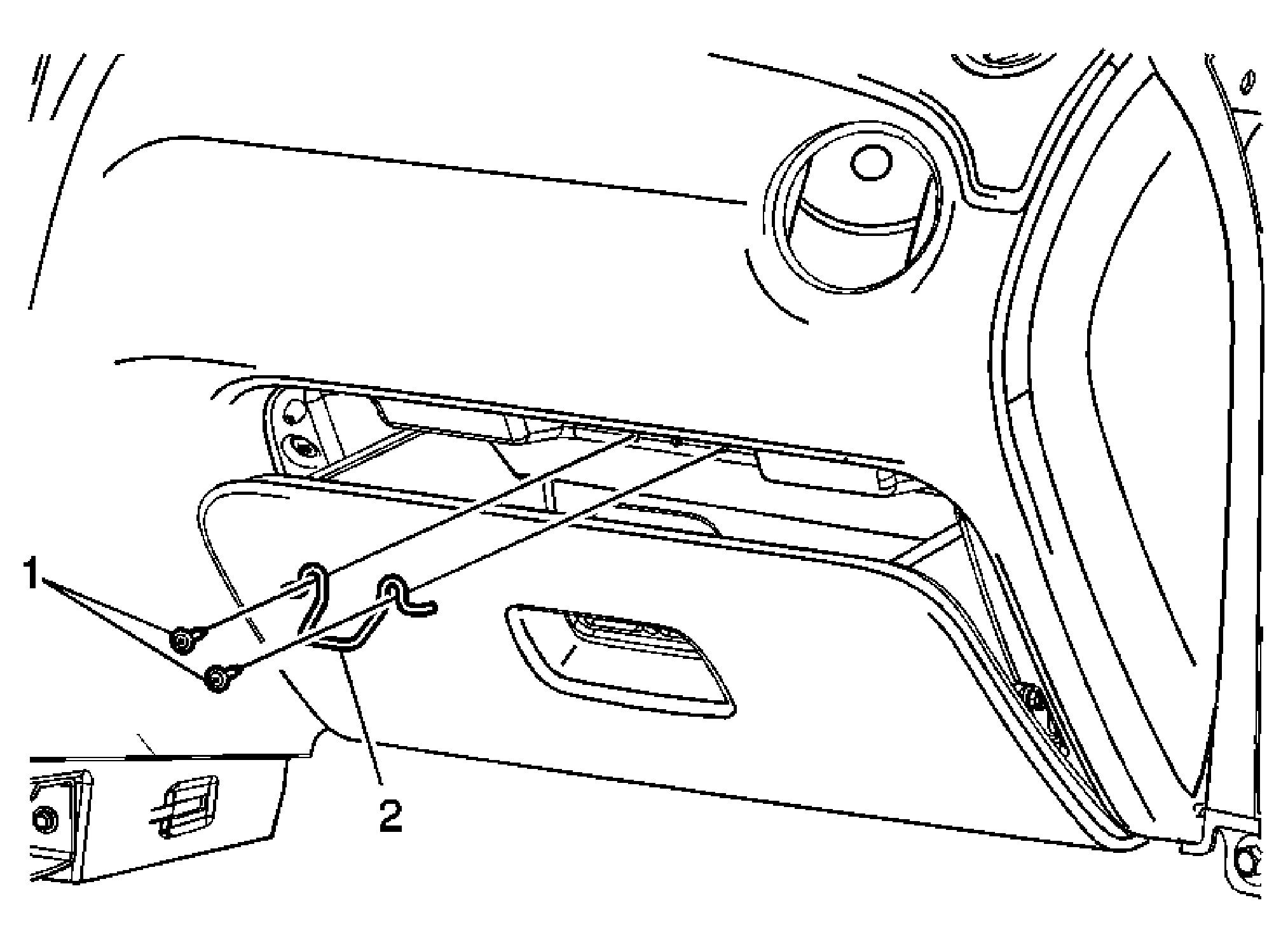

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screws, Instrument Panel Compartment Striker (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 2 | Striker, Instrument Panel Compartment |
