Insulator Replacement - Instrument Panel (I/P)

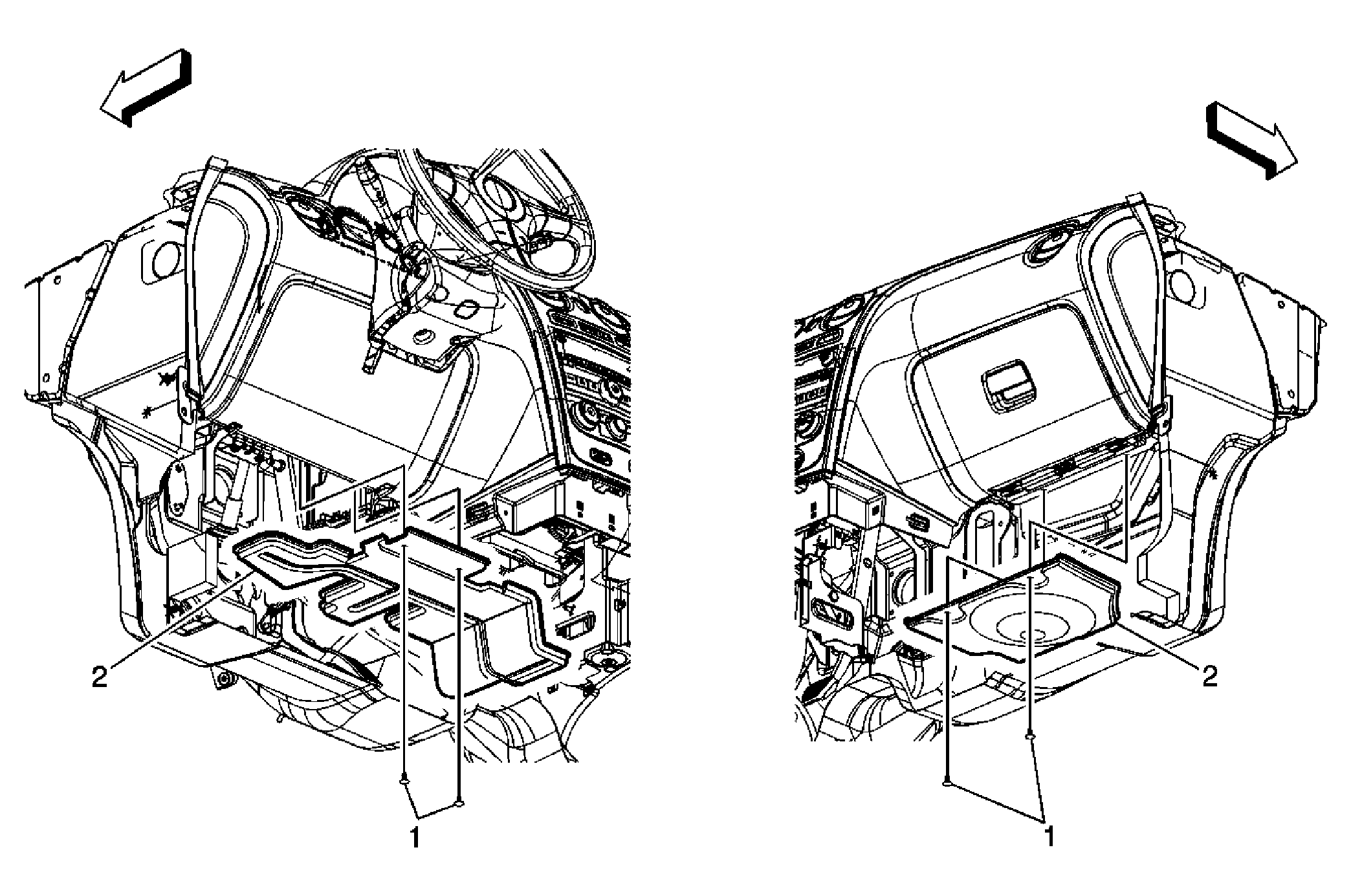

Fig 1: Insulator Replacement - Instrument Panel (I/P)
GM1607813Courtesy of GENERAL MOTORS CORP.
Insulator Replacement - Instrument Panel (I/P)

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer, Push Pin (Qty: 2)
2 Panel Assembly, Insulator/Closeout
