Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - One or More Modes

Wipers Inoperative - One or More Modes

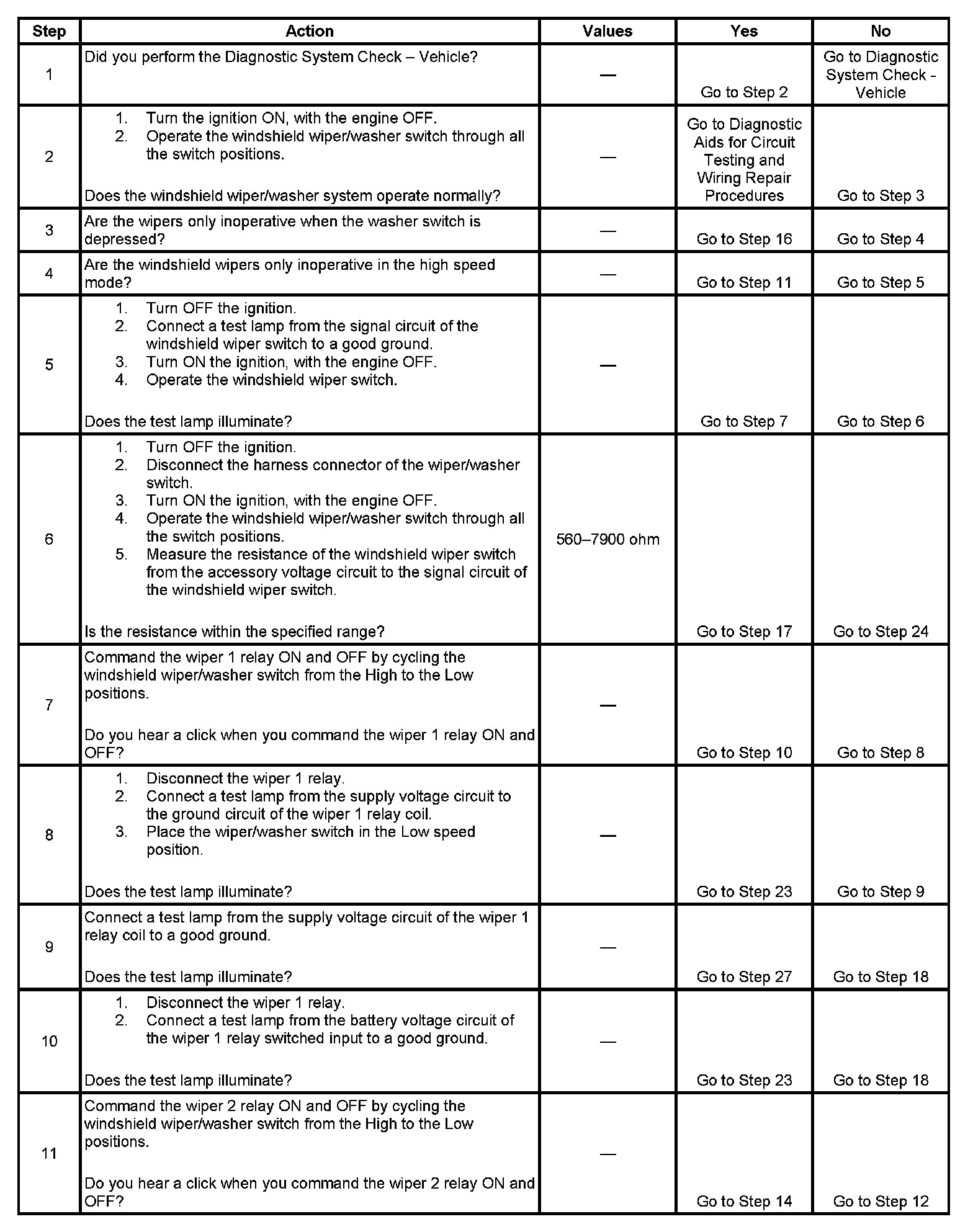

Step 1 - Step 11:

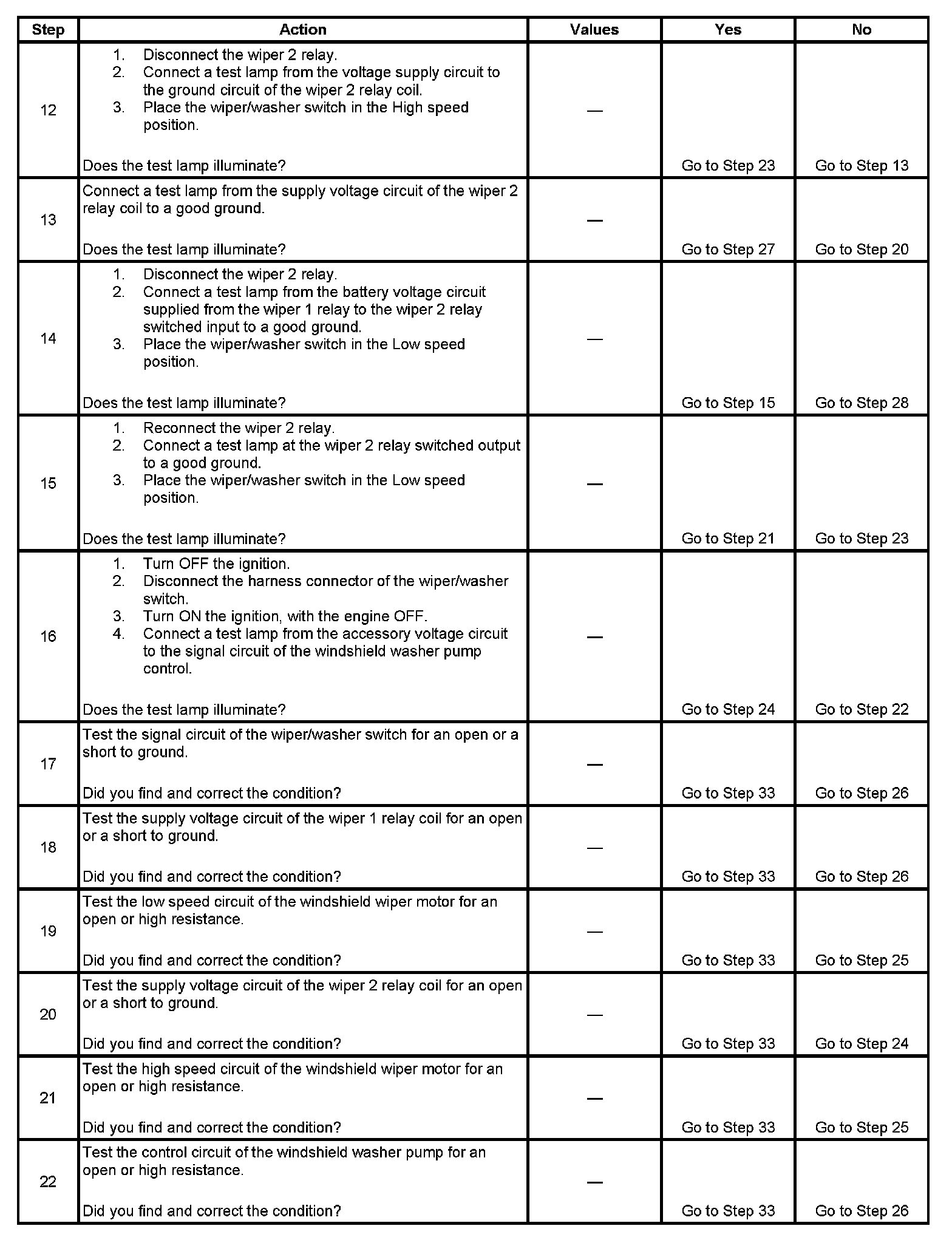

Step 12 - Step 22:

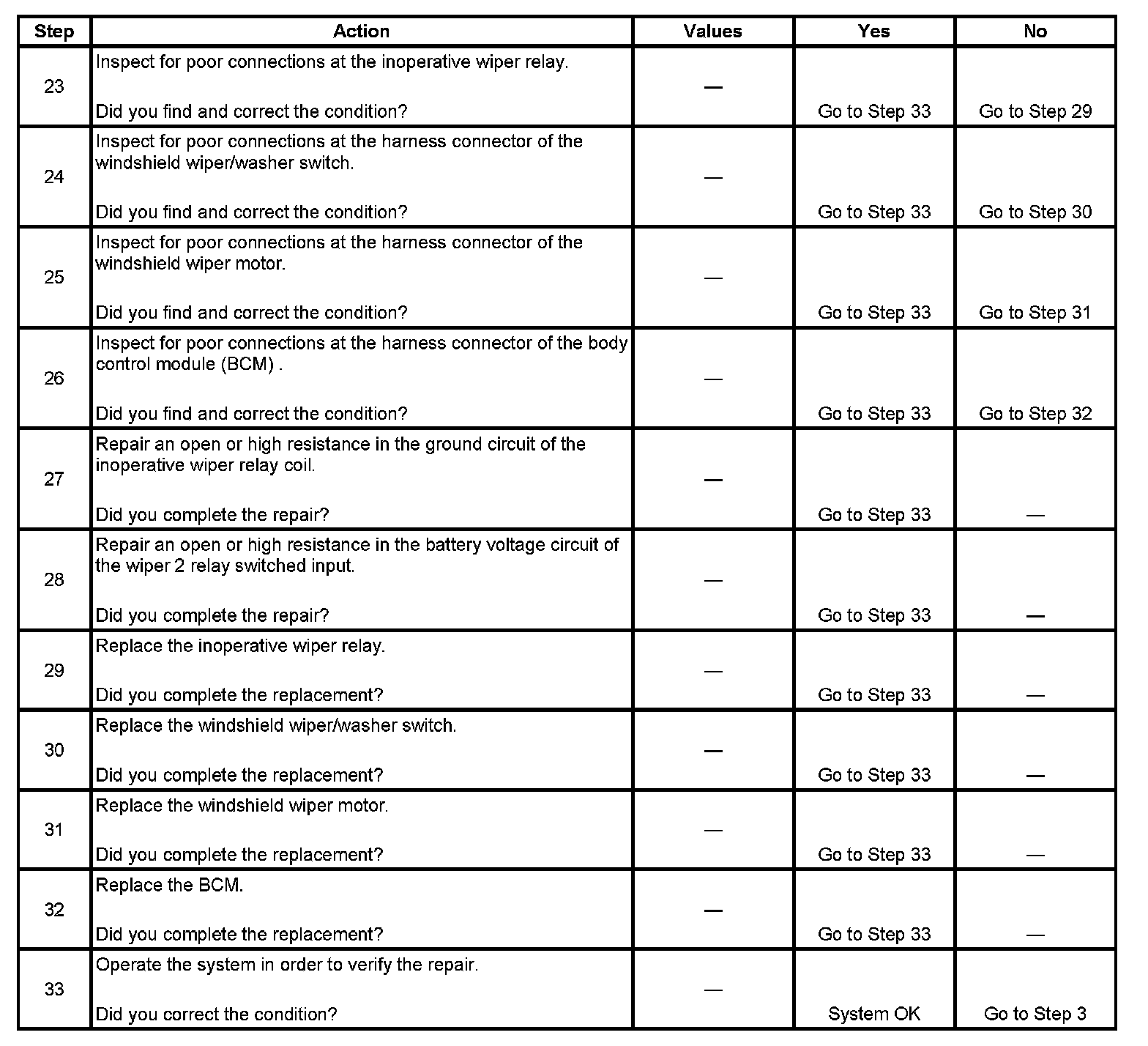

Step 23 - Step 33:
