Mirrors - Automatic Day - Night Inoperative



MIRRORS - AUTOMATIC DAY-NIGHT INOPERATIVE

DIAGNOSTIC AIDS
The automatic day-night feature of the inside rearview mirror may not operate properly or become inoperative due to an intermittent short to battery positive voltage in the backup lighting system.

TEST

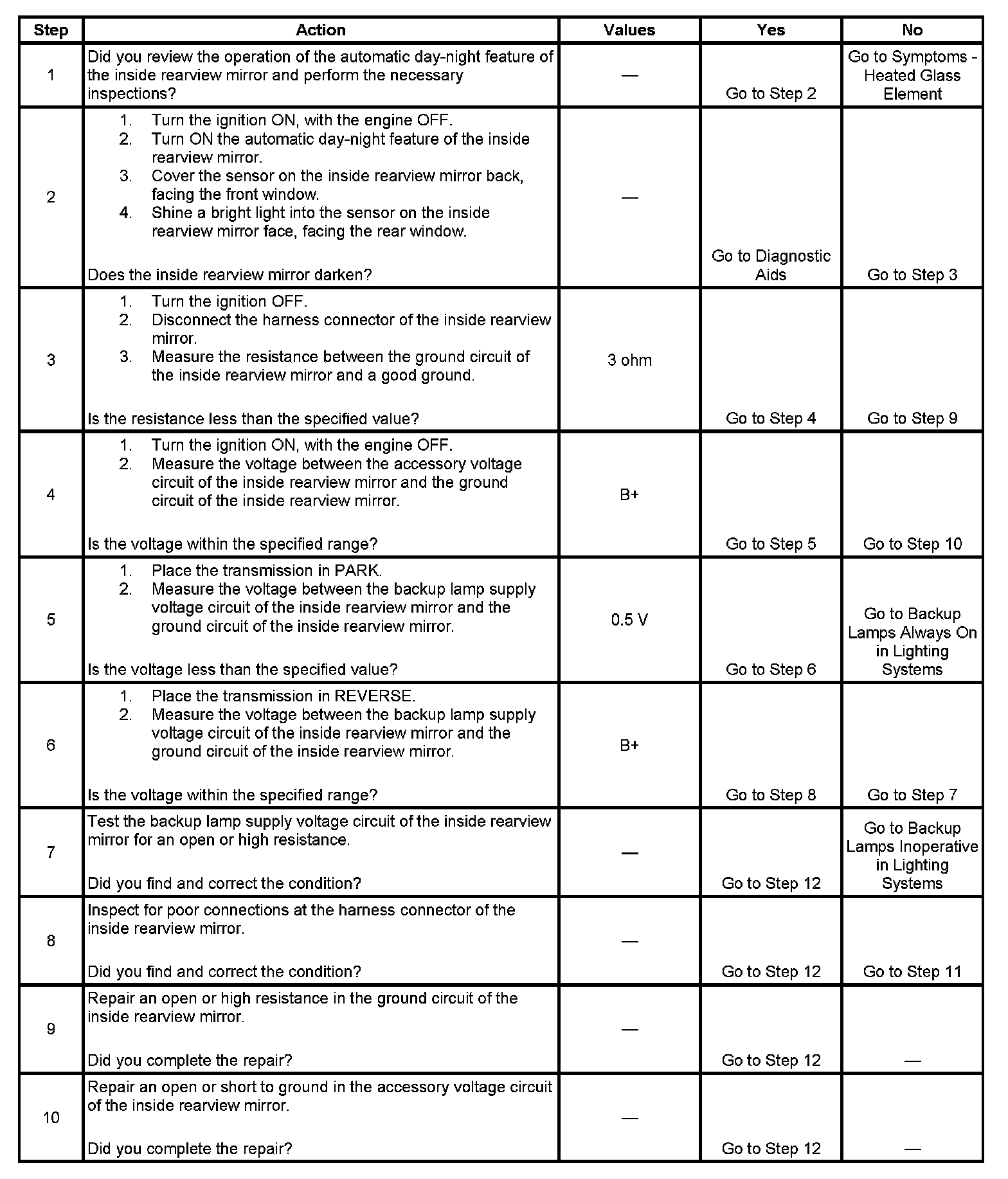

Step 1 - Step 10:




Step 11 - Step 12:
